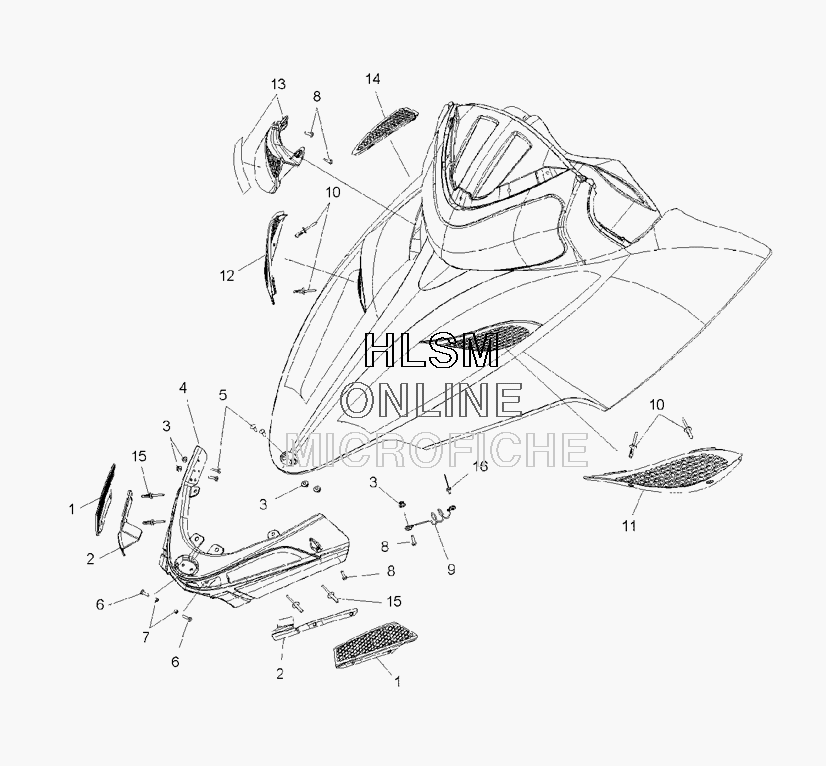

HOOD - SCREENS - HINGES для Polaris 800 ASSAULT RMK 146 (S09PL8ES) - 2009 года выпуска`
-
№АртикулНазвание
-
15437655-070 SCREEN-HINGE, LEFT HAND, BLACKSCREEN-HINGE, LEFT HAND, BLACK
-
15437656-070 SCREEN-HINGE, RIGHT HAND, BLACKSCREEN-HINGE, RIGHT HAND, BLACK
-
25437856-070 COVER-HINGE OPENING, LEFT HAND, BLACKCOVER-HINGE OPENING, LEFT HAND, BLACK
-
25437857-070 COVER-HINGE OPENING, RIGHT HAND, BLACKCOVER-HINGE OPENING, RIGHT HAND, BLACK
-
37518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
45437441-070 HINGE-GRILL,HOOD, BLACKHINGE-GRILL,HOOD, BLACK
-
57518281 SCR-10-24X5/8 TORX TH MS STL YSCR-10-24X5/8 TORX TH MS STL Y
-
67518912 SCR-1/4-20X3/4PH/TR,GR2W/PATCHSCR-1/4-20X3/4PH/TR,GR2W/PATCH
-
75333796 SPACERSPACER
-
87518577 SCR-10X 5/8 TX PN PLST-243SCR-10X 5/8 TX PN PLST-243
-
97081133 CABLE-HOOD RETAINERCABLE-HOOD RETAINER
-
107081040 RIVET-PLASTIC,R-LOCK,.197 DIARIVET-PLASTIC,R-LOCK,.197 DIA
-
115435846-070 SCREEN-HOOD,HI TEMP, LEFT HAND, BLACKSCREEN-HOOD,HI TEMP, LEFT HAND, BLACK
-
125435847-070 SCREEN-HOOD,HI TEMP, RIGHT HAND, BLACKSCREEN-HOOD,HI TEMP, RIGHT HAND, BLACK
-
135436408-070 SCREEN-BRAKE VENT, BLACKSCREEN-BRAKE VENT, BLACK
-
135812984 FOAM-ACRYLIC TAPE,1/2'' X 9''FOAM-ACRYLIC TAPE,1/2'' X 9''
-
145435923-070 SCREEN-HOOD,TOP, BLACKSCREEN-HOOD,TOP, BLACK
-
157661922 RIVET-PLASTIC,(.236-.394)RIVET-PLASTIC,(.236-.394)
-
167661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
