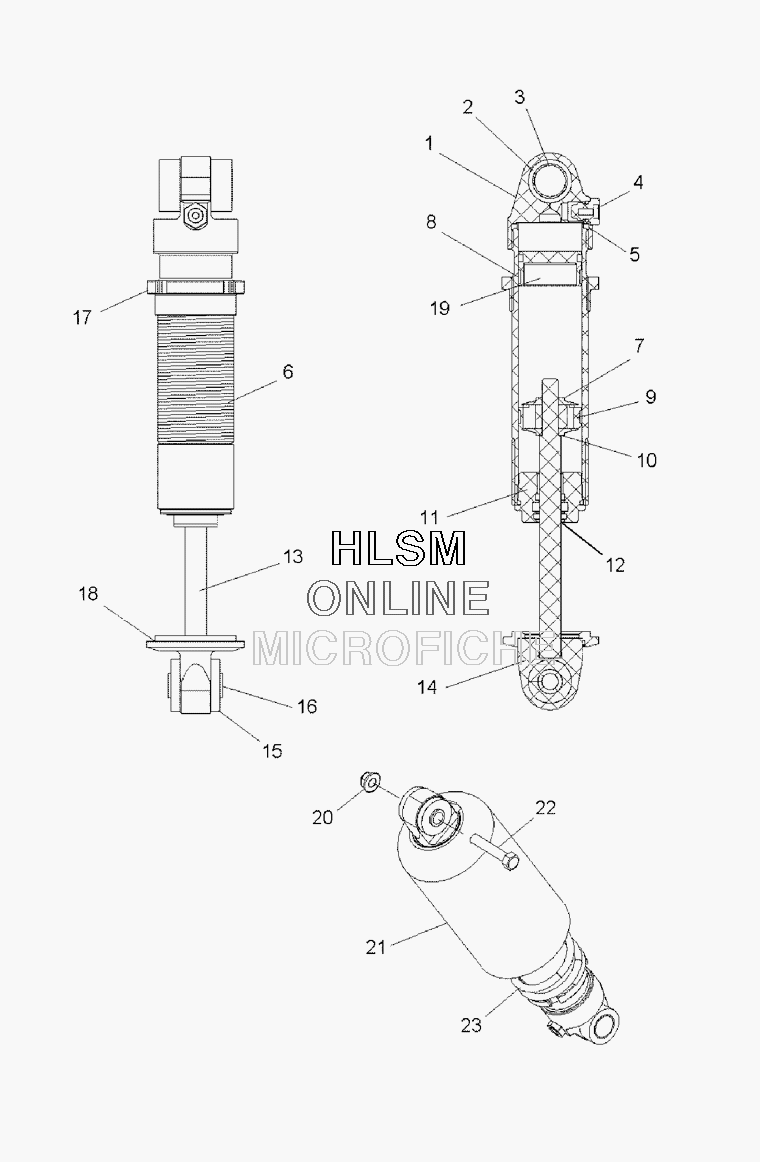

SUSPENSION - FRONT SHOCK TRACK для Polaris 800 ASSAULT RMK 146 (S09PL8ES) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    70434491 SHOCK
    SHOCK
  • 2
    1800033 BUSHING/URETHANE
    BUSHING/URETHANE
  • 3
    1800287 SLEEVE, LG. BUSHING (200329)
    SLEEVE, LG. BUSHING (200329)
  • 4
    1800107 VALVE-NEEDLE
    VALVE-NEEDLE
  • 4
    1800108 O-RING
    O-RING
  • 4
    1800109 SCREW-BUTTON HEAD 8/32
    SCREW-BUTTON HEAD 8/32
  • 5
    1800030 O-RING BODY
    O-RING BODY
  • 6
    1800337 COIL
    COIL
  • 7
    1800275 BOLT 3/8X1 1/2 (500314)
    BOLT 3/8X1 1/2 (500314)
  • 8
    1800029 WEAR BAND, TEFLON (100311)
    WEAR BAND, TEFLON (100311)
  • 9
    1800130 ASM-PISTON W/BAND CONVEX
    ASM-PISTON W/BAND CONVEX
  • 10
    1800276 WASHER (500503)
    WASHER (500503)
  • 11
    1800293 SEAL, HEAD (600157)
    SEAL, HEAD (600157)
  • 12
    1800027 O-RING BODY
    O-RING BODY
  • 12
    1800294 SEAL, U-CUP (100303)
    SEAL, U-CUP (100303)
  • 12
    1800295 SEAL, WIPER (100301)
    SEAL, WIPER (100301)
  • 13
    1800326 SHAFT, 1.12 FT (800169)
    SHAFT, 1.12 FT (800169)
  • 14
    1800234 EYELET-SHAFT,5/8'' (400161)
    EYELET-SHAFT,5/8'' (400161)
  • 15
    1800289 BUSHING, SMALL (100312)
    BUSHING, SMALL (100312)
  • 16
    1800290 SLEEVE, SM. BUSHING (600319)
    SLEEVE, SM. BUSHING (600319)
  • 17
    1800046 SPRING RETAINER
    SPRING RETAINER
  • 18
    1800116 SPRING-RETAINING RING
    SPRING-RETAINING RING
  • 19
    1800214 PISTON-RES.,W/BLEED SCREW
    PISTON-RES.,W/BLEED SCREW
  • 19
    1800028 O-RING RESERVOIR
    O-RING RESERVOIR
  • 20
    7542411 NUT,FLEXLOC
    NUT,FLEXLOC
  • 21
    5433503 SHIELD-SPRING,3.00
    SHIELD-SPRING,3.00
  • 22
    7512410 BOLT
    BOLT
  • 23
    7041822-067 SPRG,CMP,7.5''X225LB/'', BLACK
    SPRG,CMP,7.5''X225LB/'', BLACK
