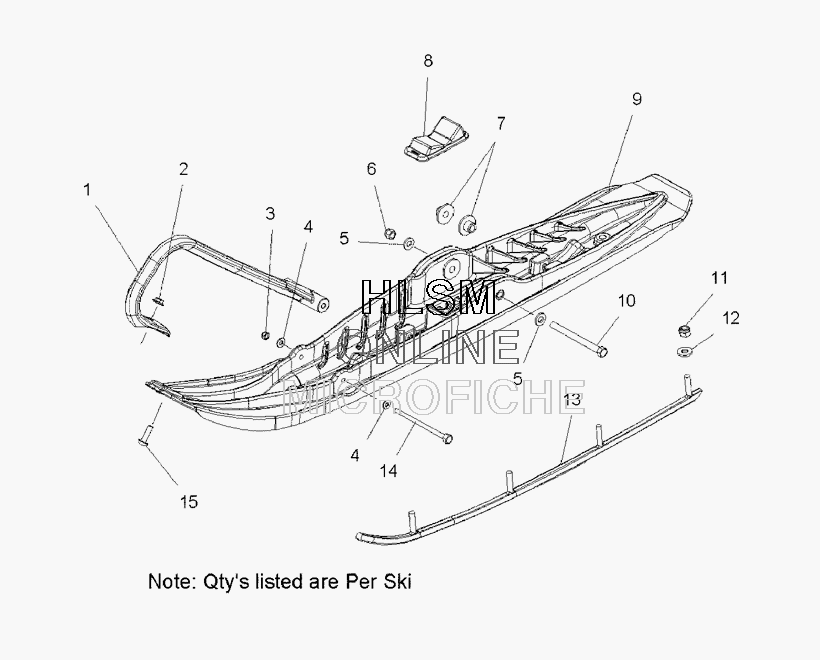

SKI ASSEMBLY для Polaris 700 TURBO IQ DRAGON AND EURO (S09PP7FS) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-070 TOE-PLASTIC SKI, BLACK
    TOE-PLASTIC SKI, BLACK
  • 2
    7542321 NUT, FLANGE
    NUT, FLANGE
  • 3
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 4
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 5
    7556130 WASHER-.406X1.25X.125
    WASHER-.406X1.25X.125
  • 6
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 7
    5134797 BUSHING-PLSTC SKI, .390 ID, LONG
    BUSHING-PLSTC SKI, .390 ID, LONG
  • 8
    5413116 STOP-SKI RUBBER, CR
    STOP-SKI RUBBER, CR
  • 9
    1822933-070 ASM-SKI, IQ2 TRAK, SVC, BLACK (INCL. 7)
    ASM-SKI, IQ2 TRAK, SVC, BLACK (INCL. 7)
  • 10
    7518481 SCR-3/8-24X6.00-HXCP-GR8-Y
    SCR-3/8-24X6.00-HXCP-GR8-Y
  • 11
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 12
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 13
    2875954 CARBIDE SKAG 3'' 60 DEG. IQ (PAIR)
    CARBIDE SKAG 3'' 60 DEG. IQ (PAIR)
  • 14
    7518047 BOLT-1/4-20X4.75 HX/CP GRS
    BOLT-1/4-20X4.75 HX/CP GRS
  • 15
    7516317 SCREW-5/16-18X1.00, TORX, NYLON
    SCREW-5/16-18X1.00, TORX, NYLON
