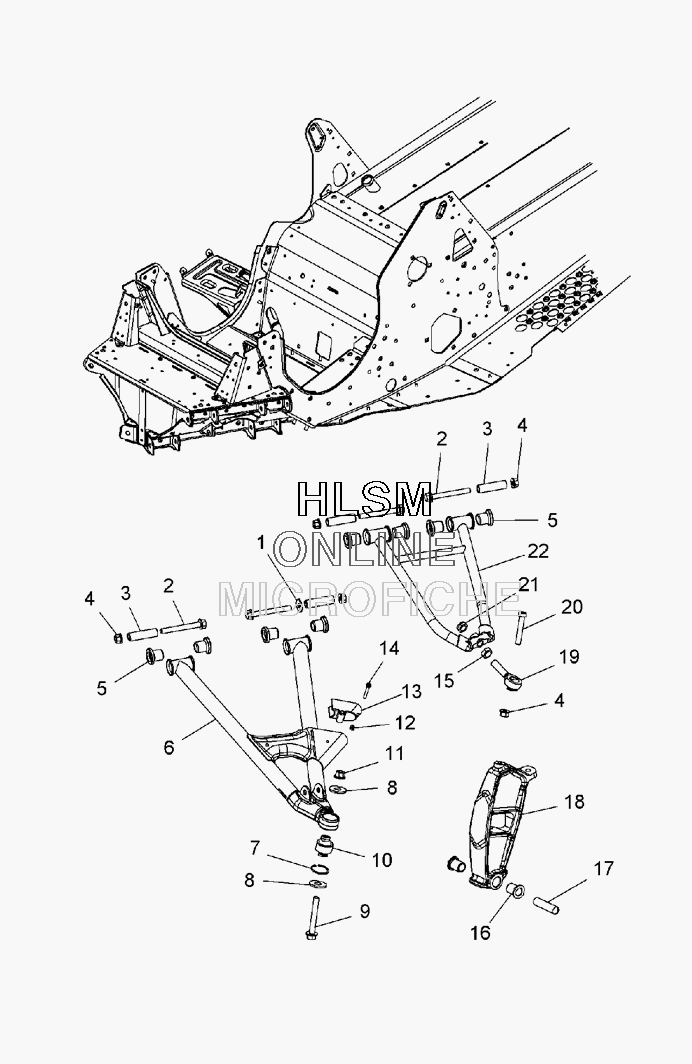

STEERING - LOWER W/TIE RODS для Polaris 600 IQ (S09PB6HS) - 2009 года выпуска

№

Артикул

Название
1

7555893 WASHER,FLAT

WASHER,FLAT
2

7518384 SCR-3/8-16X3.25 FLG HX GR8-Y

SCR-3/8-16X3.25 FLG HX GR8-Y
3

5135943 SHAFT-PIVOT

SHAFT-PIVOT
4

7547180 NUT-FLANGED,3/8-16 NYLON-Z

NUT-FLANGED,3/8-16 NYLON-Z
5

5434932 BUSHING-PIVOT

BUSHING-PIVOT
6

2203021-067 KIT-LCA,FUSION,SVC, LEFT HAND, BLACK (INCL. 3-7,12-14)

KIT-LCA,FUSION,SVC, LEFT HAND, BLACK (INCL. 3-7,12-14)
6

2203022-067 KIT-LCA,FUSION,SVC, RIGHT HAND, BLACK (INCL. 3-7,12-14)

KIT-LCA,FUSION,SVC, RIGHT HAND, BLACK (INCL. 3-7,12-14)
7

7710539 RING-RETAINING,1.25 ID HSNG

RING-RETAINING,1.25 ID HSNG
8

7556153 WASHER,3/8 FW

WASHER,3/8 FW
9

7518478 SCR-3/8-24X3.00 HXCP GR8-Y

SCR-3/8-24X3.00 HXCP GR8-Y
10

2203107 KIT-BEARING,SPHERICAL,LOWER (INCL. 7)

KIT-BEARING,SPHERICAL,LOWER (INCL. 7)
11

7547344 NUT-3/8-24 HEX LOC,GR8

NUT-3/8-24 HEX LOC,GR8
12

7541925 NUT, NYLOK 10-24 Y

NUT, NYLOK 10-24 Y
13

5435522 SLIDE-SWAY BAR,9/16

SLIDE-SWAY BAR,9/16
14

7518708 SCREW-#10-24X1.62,TRX/PN MC-Y

SCREW-#10-24X1.62,TRX/PN MC-Y
15

7542711 NUT-JAM

NUT-JAM
16

5133983 BUSHING-SKI PIVOT

BUSHING-SKI PIVOT
17

5010158 BUSHING,PIVOT

BUSHING,PIVOT
18

1823248 ASM-SPINDLE,IQ, LEFT HAND (INCL. 16)

ASM-SPINDLE,IQ, LEFT HAND (INCL. 16)
18

1823249 ASM-SPINDLE,IQ, RIGHT HAND (INCL. 16)

ASM-SPINDLE,IQ, RIGHT HAND (INCL. 16)
19

7061145 ROD END-1/2,30°

ROD END-1/2,30°
20

7518428 SCR-3/8-16X2.25,SOCHD SP-Y

SCR-3/8-16X2.25,SOCHD SP-Y
21

7547104 NUT

NUT
22

2203019-067 KIT-UCA,FUSION,SVC, LEFT HAND, BLACK (INCL. 3,5,12,15,19,21)

KIT-UCA,FUSION,SVC, LEFT HAND, BLACK (INCL. 3,5,12,15,19,21)
22

2203020-067 KIT-UCA,FUSION,SVC, RIGHT HAND, BLACK (INCL. 3,5,12,15,19,21)

KIT-UCA,FUSION,SVC, RIGHT HAND, BLACK (INCL. 3,5,12,15,19,21)
