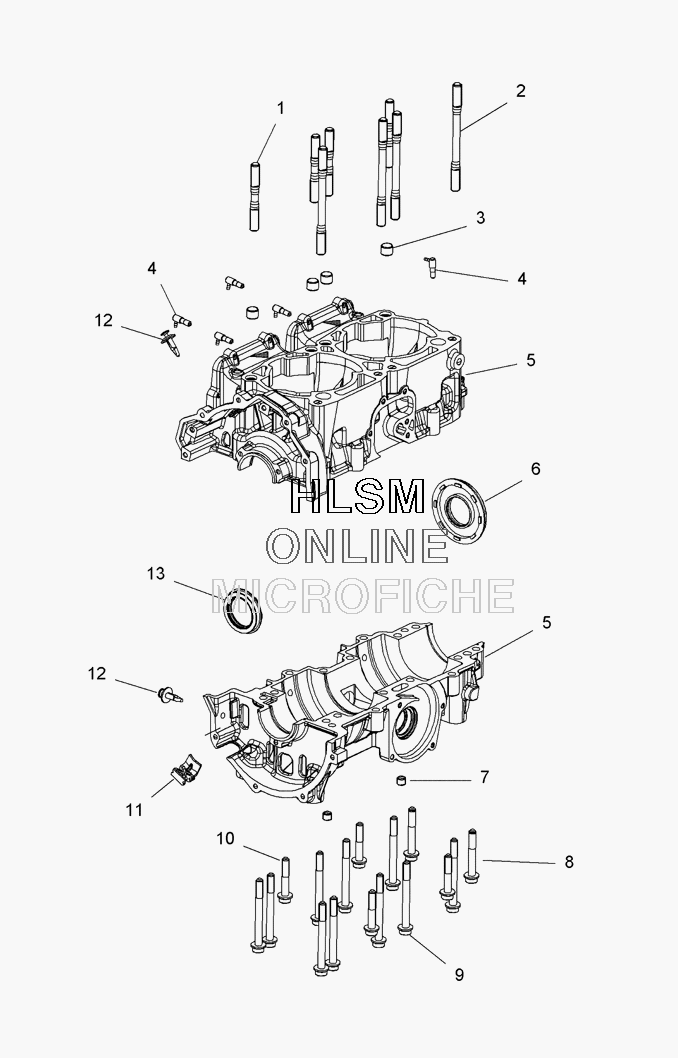

CRANKCASE ASSEMBLY для Polaris 600 IQ (S09PB6HS) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5135956 STUD-CYL 81MM
    STUD-CYL 81MM
  • 2
    5135955 STUD-CYL 130MM
    STUD-CYL 130MM
  • 3
    7663008 DOWL,HOL,M13X10
    DOWL,HOL,M13X10
  • 4
    7051020 VALVE,CHECK,90 DEG.
    VALVE,CHECK,90 DEG.
  • 5
    2203321 KIT-CRANKCASE 1203210 (INCL. 1,2,4,7-12)
    KIT-CRANKCASE 1203210 (INCL. 1,2,4,7-12)
  • 6
    5411394 SEAL,FLANGED
    SEAL,FLANGED
  • 7
    7052337 PLUG-1/8 NPT,HX/SOC W/SEALANT
    PLUG-1/8 NPT,HX/SOC W/SEALANT
  • 8
    7517785 BOLT,M8X1.25X55
    BOLT,M8X1.25X55
  • 9
    7517784 BOLT,M8X1.25X80
    BOLT,M8X1.25X80
  • 10
    7517786 BOLT,M8X1.25X45
    BOLT,M8X1.25X45
  • 11
    5436640 SHIELD-WIRE STATOR
    SHIELD-WIRE STATOR
  • 12
    7621509 RIVET,PLASTI-LOCK
    RIVET,PLASTI-LOCK
  • 13
    5412798 SEAL-FLANGED 35X48X7,MAG
    SEAL-FLANGED 35X48X7,MAG
