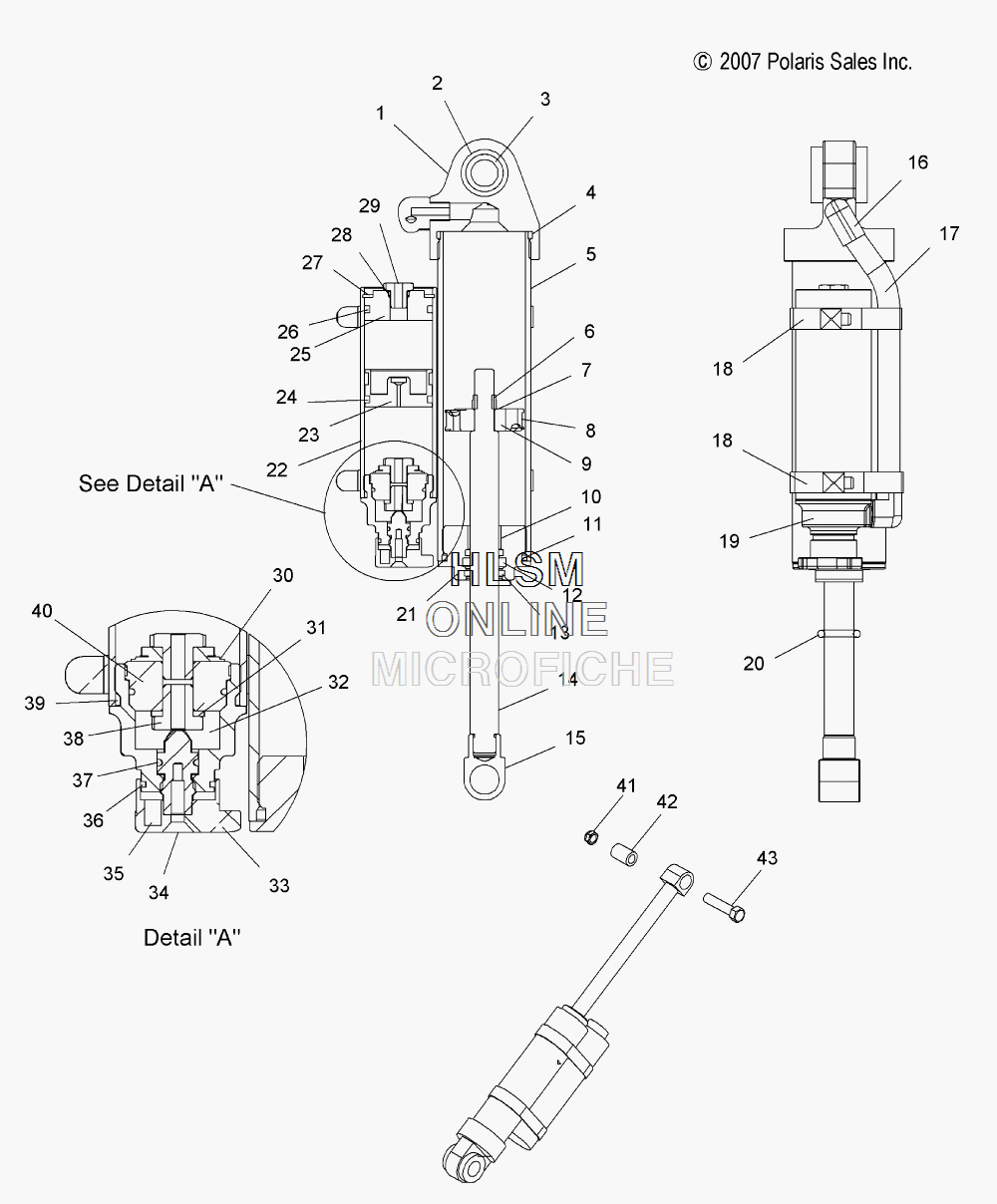

SUSPENSION - WALKER EVANS - REAR TRACK SHOCK для Polaris 600 IQ RACER EURO (S09MX6JE) - 2009 года выпуска`
-
№АртикулНазвание
-
-7043311 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
11800237 LOOP, BODYLOOP, BODY
-
21800036 BUSHING/URETHANEBUSHING/URETHANE
-
31800032 SLEEVESLEEVE
-
41800242 O-RINGO-RING
-
51800238 BODY, SHOCKBODY, SHOCK
-
61800241 NUTNUT
-
71800118 WASHERWASHER
-
81800243 BAND, WEARBAND, WEAR
-
91800314 PISTON W/BANDPISTON W/BAND
-
101800038 BUSHING, SHAFTBUSHING, SHAFT
-
111800163 O-RINGO-RING
-
121800035 SHAFT SEAL U-CUPSHAFT SEAL U-CUP
-
131800034 WIPER, D-TYPEWIPER, D-TYPE
-
141800235 SHAFTSHAFT
-
151800096 EYELETEYELET
-
161800113 ELBOWELBOW
-
171800212 HOSEHOSE
-
181800236 CLAMP, RESERVOIR HOSECLAMP, RESERVOIR HOSE
-
191800220 HOUSING, ADJUSTORHOUSING, ADJUSTOR
-
201800095 O-RINGO-RING
-
211800208 ASM., SHAFT SEAL HOUSINGASM., SHAFT SEAL HOUSING
-
221800213 BODY, RESERVOIRBODY, RESERVOIR
-
231800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
231800211 SCREW, BLEEDSCREW, BLEED
-
241800028 O-RINGO-RING
-
251800106 CAP, ENDCAP, END
-
261800028 O-RINGO-RING
-
271800019 RING, SNAP, RESERVOIRRING, SNAP, RESERVOIR
-
281800107 VALVE, NEEDLEVALVE, NEEDLE
-
281800108 O-RINGO-RING
-
291800109 SCREWSCREW
-
301800091 VALVEVALVE
-
311800052 SHIM, VALVESHIM, VALVE
-
321800050 WASHERWASHER
-
331800218 KNOBKNOB
-
341800203 SCREWSCREW
-
351800127 BALL, D-TENTBALL, D-TENT
-
351800128 SPRING, D-TENTSPRING, D-TENT
-
361800221 O-RING, KNOBO-RING, KNOB
-
371800094 O-RINGO-RING
-
381800219 SCREWSCREW
-
391800027 O-RING, BODYO-RING, BODY
-
401800217 PISTONPISTON
-
401800125 BALL, CHECKBALL, CHECK
-
417542411 NUT, FLEXLOC, THINNUT, FLEXLOC, THIN
-
425010422 BUSHINGBUSHING
-
437512410 SCREWSCREW
