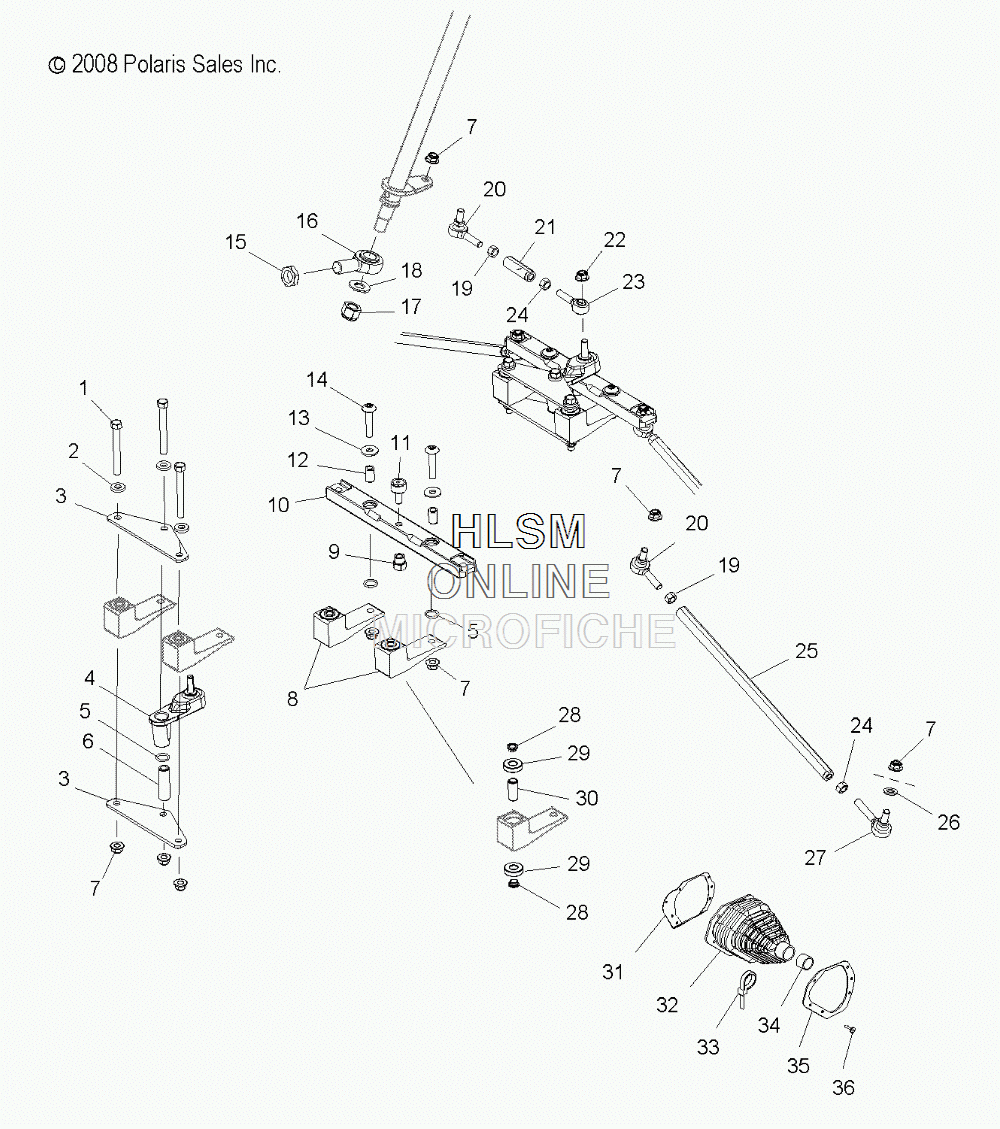

STEERING - LOWER W/TIE RODS для Polaris 600 IQ RACER EURO (S09MX6JE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7515406 SCREW
    SCREW
  • 2
    7556160 WASHER
    WASHER
  • 3
    5251735 MOUNT, PLATE, PROGRESSIVE ARM
    MOUNT, PLATE, PROGRESSIVE ARM
  • 4
    1823494 ASM., CENTER IDLER (INCL. BUSHINGS)
    ASM., CENTER IDLER (INCL. BUSHINGS)
  • 5
    5411220 O-RING
    O-RING
  • 6
    5335474 BUSHING, IDLER, CENTER PIVOT
    BUSHING, IDLER, CENTER PIVOT
  • 7
    7547263 NUT, FLANGE
    NUT, FLANGE
  • 8
    1823545 ASM., IDLER, STEERING (INCL. 25-27)
    ASM., IDLER, STEERING (INCL. 25-27)
  • 9
    7547412 NUT, SPACER
    NUT, SPACER
  • 10
    1823347 ASM., RACK, STEERING (INCL. BUSHINGS)
    ASM., RACK, STEERING (INCL. BUSHINGS)
  • 11
    3514632 ASM., BEARING W/STUD
    ASM., BEARING W/STUD
  • 12
    5134692 PIVOT, RACK, STEERING
    PIVOT, RACK, STEERING
  • 13
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 14
    7518464 SCREW
    SCREW
  • 15
    7547292 NUT, JAM
    NUT, JAM
  • 16
    1822738 ASM., ROD END W/BUSHING, STEERING POST
    ASM., ROD END W/BUSHING, STEERING POST
  • 17
    7547291 NUT, NYLOK
    NUT, NYLOK
  • 18
    7555877 WASHER, THRUST
    WASHER, THRUST
  • 19
    7542401 NUT
    NUT
  • 20
    7061136 ROD END, RIGHT HAND
    ROD END, RIGHT HAND
  • 21
    5136308 ROD, DRAG LINK
    ROD, DRAG LINK
  • 22
    7542411 NUT, FLEXLOC, THIN
    NUT, FLEXLOC, THIN
  • 23
    7061083 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 24
    7542424 NUT, LEFT HAND
    NUT, LEFT HAND
  • 25
    5136844 TIE ROD
    TIE ROD
  • 26
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 27
    7061063 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 28
    5132106 BUSHING, REDUCER
    BUSHING, REDUCER
  • 29
    3514320 BEARING, BALL
    BEARING, BALL
  • 30
    5136298 SPACER, TUBE
    SPACER, TUBE
  • 31
    5249641 COVER, TIE ROD BOOT, LEFT HAND
    COVER, TIE ROD BOOT, LEFT HAND
  • 31
    5249642 COVER, TIE ROD BOOT, RIGHT HAND
    COVER, TIE ROD BOOT, RIGHT HAND
  • 32
    5412744 BOOT, TIE ROD, LEFT HAND
    BOOT, TIE ROD, LEFT HAND
  • 32
    5412745 BOOT, TIE ROD, RIGHT HAND
    BOOT, TIE ROD, RIGHT HAND
  • 33
    7080138 CABLE TIE
    CABLE TIE
  • 34
    5436174 BUSHING, TIE ROD BOOT
    BUSHING, TIE ROD BOOT
  • 35
    5249226 PLATE, TIE ROD BOOT, LEFT HAND
    PLATE, TIE ROD BOOT, LEFT HAND
  • 35
    5249227 PLATE, TIE ROD BOOT, RIGHT HAND
    PLATE, TIE ROD BOOT, RIGHT HAND
  • 36
    7518284 SCREW
    SCREW
