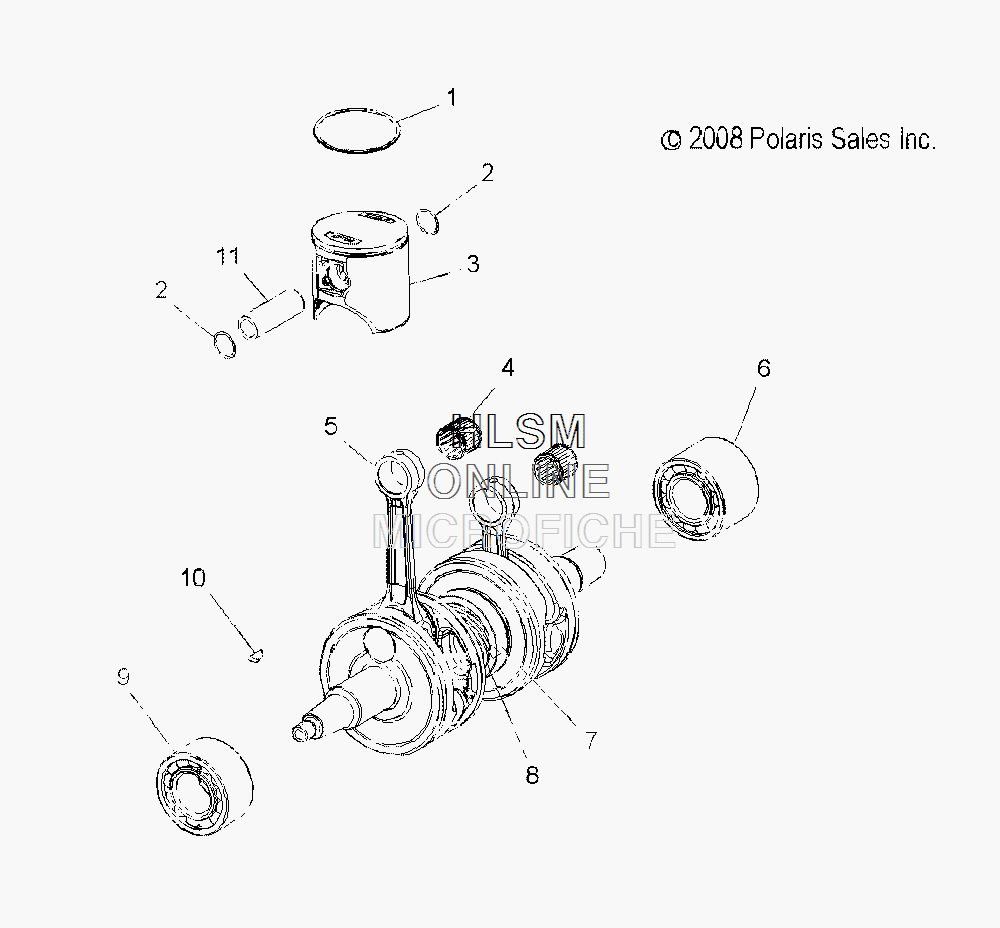

CRANKSHAFT ASSY. W/ PISTON для Polaris 600 IQ RACER EURO (S09MX6JE) - 2009 года выпуска`
-
№АртикулНазвание
-
12203993 KIT, CRANKSHAFT (INCL. 4-9,11)KIT, CRANKSHAFT (INCL. 4-9,11)
-
12203612 KIT, PISTON RING (1 RING/KIT)KIT, PISTON RING (1 RING/KIT)
-
23021840 CIRCLIP, PISTONCIRCLIP, PISTON
-
32203988 KIT, PISTONKIT, PISTON
-
43514357 BEARINGBEARING
-
52203584 KIT, CONNECTING RODKIT, CONNECTING ROD
-
63514587 BEARING, BALLBEARING, BALL
-
73514363 BEARING, BALLBEARING, BALL
-
77710528 RING, SNAPRING, SNAP
-
85133689 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
93514499 BEARING, BALL, DOUBLE ROWBEARING, BALL, DOUBLE ROW
-
107721117 KEY, WOODRUFFKEY, WOODRUFF
