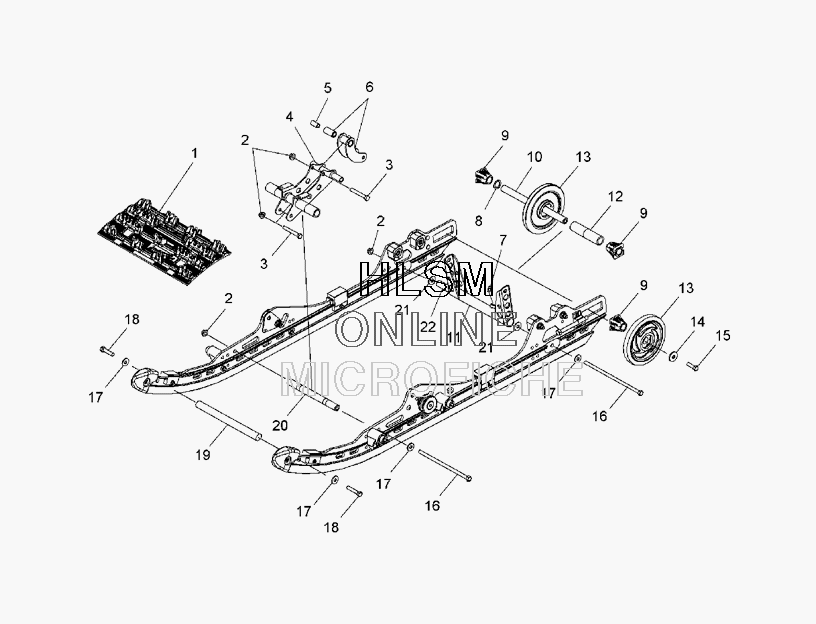

SUSPENSION - REAR для Polaris 600 IQ ES (S09PB6HSL) - 2009 года выпуска`

№

Артикул

Название
1

5413198 TRACK-121'' X 15'' X 1'' HACKSAW

TRACK-121'' X 15'' X 1'' HACKSAW

124 800 ₽
1

5222840 CLIP-GUIDE, CAMOPLAST TRACK

CLIP-GUIDE, CAMOPLAST TRACK

1 460 ₽
2

7547263 NUT-3/8-24 NYLOK

NUT-3/8-24 NYLOK

150 ₽
3

7515417 SCREW

SCREW

750 ₽
4

1542465-329 WELD-H-BRACKET, BLACK

WELD-H-BRACKET, BLACK

17 470 ₽
5

5333906 SLEEVE,.385X.560X1.72

SLEEVE,.385X.560X1.72

3 430 ₽
6

1542059-067 SHOCK PIVOT, BLACK

SHOCK PIVOT, BLACK

7 910 ₽
6

5134600 BUSHING

BUSHING

3 430 ₽
7

7080424 FITTING, LUBRICATION

FITTING, LUBRICATION

630 ₽
8

7555918 BUSHING

BUSHING

110 ₽
9

5432535 SPACER,IDLER

SPACER,IDLER

2 560 ₽
10

5020744 SHAFT,IDLER

SHAFT,IDLER

8 950 ₽
11

1541928-067 REAR PIVOT ARM,4.00, BLACK

REAR PIVOT ARM,4.00, BLACK

8 950 ₽
12

5333285 SPACER,IDLER,LONG

SPACER,IDLER,LONG

2 810 ₽
13

1590388-070 ASM-WHEEL,SCRLD,7.25,6004, BLACK

ASM-WHEEL,SCRLD,7.25,6004, BLACK

9 780 ₽
13

7710444 RING,RETAINING

RING,RETAINING

1 460 ₽
13

3514384 BEARING-.7874X1.6535X.4724,NTN

BEARING-.7874X1.6535X.4724,NTN

3 950 ₽
14

7556130 WASHER-.406X1.25X.125

WASHER-.406X1.25X.125

1 000 ₽
15

7517731 BOLT,3/8-16X1.25

BOLT,3/8-16X1.25

250 ₽
16

7517921 SCR-3/8-24X9.875,HX/LP,GR8-Y

SCR-3/8-24X9.875,HX/LP,GR8-Y

3 540 ₽
17

7556188 WASHER-FLEFT HAND390X.750X.065-Y

WASHER-FLEFT HAND390X.750X.065-Y

630 ₽
18

7518005 SCR-3/8-16X1.50-HX/CP-GR5-P80Y

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

750 ₽
19

5134078 SHAFT-C'BORE,.688X8.665,2045

SHAFT-C'BORE,.688X8.665,2045

4 580 ₽
20

5134517 SHAFT-.795X8.665,6066

SHAFT-.795X8.665,6066

4 580 ₽
21

7555893 WASHER,FLAT

WASHER,FLAT

110 ₽
22

5333404 SHAFT

SHAFT

3 750 ₽
