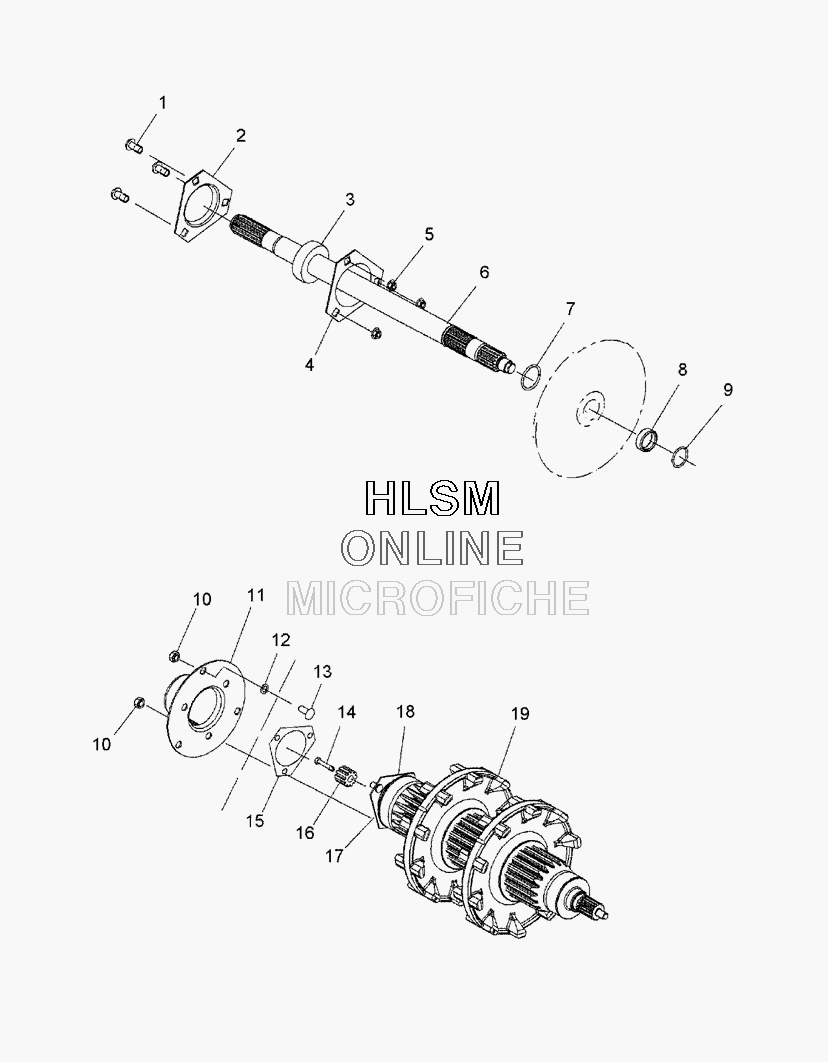

DRIVESHAFT W/JACKSHAFT для Polaris 600 IQ ES (S09PB6HSL) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7512377 BOLT,CARRIAGE
    BOLT,CARRIAGE
  • 2
    5247680 FLANGETTE-.100 OFFSET
    FLANGETTE-.100 OFFSET
  • 3
    3514617 BEARING-1XM52XM15,SPH
    BEARING-1XM52XM15,SPH
  • 4
    5222751 FLANGETTE
    FLANGETTE
  • 5
    7542343 NUT,FLANGE
    NUT,FLANGE
  • 6
    1332336 JACKSHAFT ASM,15/21 SPL W/BRG (INCL 3,7)
    JACKSHAFT ASM,15/21 SPL W/BRG (INCL 3,7)
  • 7
    7710422 RING, RETAINING
    RING, RETAINING
  • 8
    5135231 SLEEVE-SEAL,45 DEGREE CHAMFER
    SLEEVE-SEAL,45 DEGREE CHAMFER
  • 9
    5410613 O RING
    O RING
  • 10
    7542324 NUT,NYLOK
    NUT,NYLOK
  • 11
    5246960 HOUSING-DRIVE PICKUP
    HOUSING-DRIVE PICKUP
  • 12
    7547030 PALNUT
    PALNUT
  • 13
    7518049 BOLT-CARR 5/16-18X5/8 GR5-Y
    BOLT-CARR 5/16-18X5/8 GR5-Y
  • 14
    7516733 SCREW
    SCREW
  • 15
    5811095 GASKET,JACKSHAFT, BLACK
    GASKET,JACKSHAFT, BLACK
  • 16
    5240013 WHEEL-PICKUP,SPEEDO,9 TOOTH
    WHEEL-PICKUP,SPEEDO,9 TOOTH
  • 17
    3514448 BEARING-25MM SPH OD LUBE
    BEARING-25MM SPH OD LUBE
  • 18
    1014299 ASM-FLANGETTE W/SCREWS
    ASM-FLANGETTE W/SCREWS
  • 19
    1590411 ASM-DRVSHAFT TUBULAR 9T REINF
    ASM-DRVSHAFT TUBULAR 9T REINF
