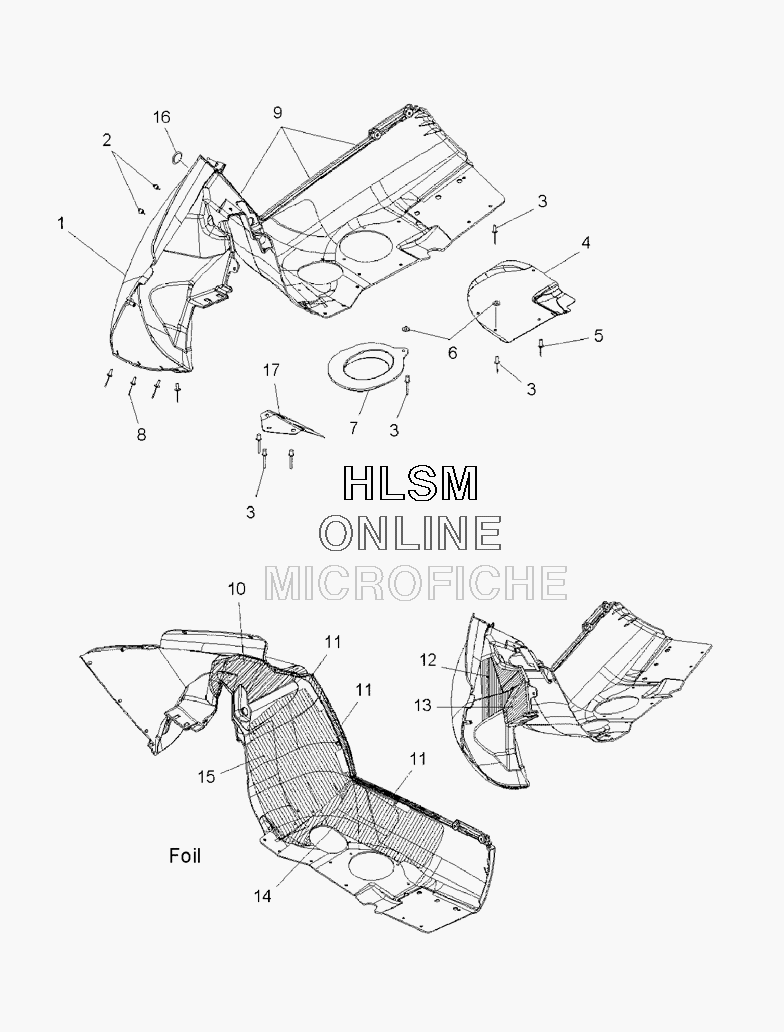

FENDER - R.H. для Polaris 600 IQ ES (S09PB6HSL) - 2009 года выпуска`
-
№АртикулНазвание
-
12633468-070 ASM-FENDER, RIGHT HAND,700, BLACK (INCL. FOAM AND FOIL)ASM-FENDER, RIGHT HAND,700, BLACK (INCL. FOAM AND FOIL)
-
15521697-350 SEAL-BULB,.375,350CMSEAL-BULB,.375,350CM
-
25412465 BUMPER-GROMMET,1/4''BUMPER-GROMMET,1/4''
-
37621467 RIVET, BLINDRIVET, BLIND
-
45249116-329 PLATE-PROTECTION,FENDER, BLACKPLATE-PROTECTION,FENDER, BLACK
-
57661136 RVT-3/16(.376-.500)ST-ST-LF-ZRVT-3/16(.376-.500)ST-ST-LF-Z
-
67556044 WASHER,WASHER,
-
75436066 BOOT-EXHAUST,OUTLETBOOT-EXHAUST,OUTLET
-
87661859 RIVET-NYLON,1/4 (.06-.50)AL-BRIVET-NYLON,1/4 (.06-.50)AL-B
-
95521697-350 SEAL-BULB,.375,350CMSEAL-BULB,.375,350CM
-
105812746 FOIL-FENDER, RIGHT HANDFOIL-FENDER, RIGHT HAND
-
115812255 FOIL-10.00X1.00FOIL-10.00X1.00
-
125812744 FOIL-FENDER, RIGHT HANDFOIL-FENDER, RIGHT HAND
-
135812745 FOIL-FENDER, RIGHT HANDFOIL-FENDER, RIGHT HAND
-
145812973 FOAM/FIBER,FEND LOWER, RIGHT HAND,HITMPFOAM/FIBER,FEND LOWER, RIGHT HAND,HITMP
-
155812972 FOAM/FIBER,FEND UPPER, RIGHT HAND,HITMPFOAM/FIBER,FEND UPPER, RIGHT HAND,HITMP
-
165411009 PLUG, HOLEPLUG, HOLE
-
175249759 DEFLECTOR-EXHAUST,W/HOLES,600DEFLECTOR-EXHAUST,W/HOLES,600
