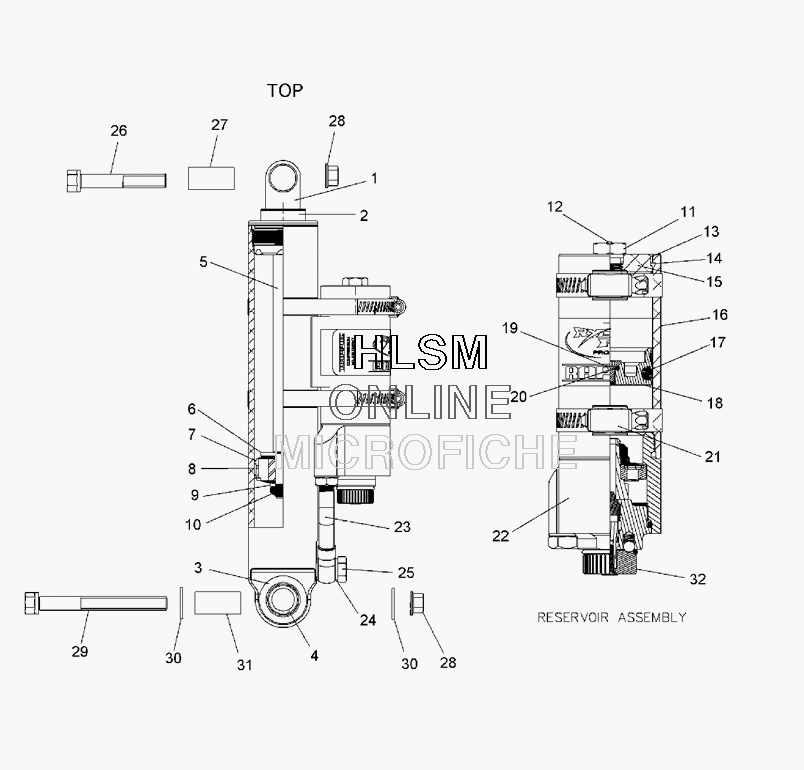

SUSPENSION - REAR SHOCK TRACK (7043316) для Polaris 600 DRAGON SWITCHBACK EURO (S09PS6HEL) - 2009 года выпуска`
-
№АртикулНазвание
-
-7043316 SHOCK-R/T, COM ADJ RES, FNLSHOCK-R/T, COM ADJ RES, FNL
-
11700024 UPPER MOUNTUPPER MOUNT
-
21700156 CYL HEAD ASM 215098-100CYL HEAD ASM 215098-100
-
31700073 BUSHINGBUSHING
-
41700069 SLEEVE-.57''IDX.80''ODX1.20SLEEVE-.57''IDX.80''ODX1.20
-
51700260 SHAFTSHAFT
-
61700077 TOP-OUT WASHERTOP-OUT WASHER
-
71700261 PISTON, 37MMPISTON, 37MM
-
81700236 WEAR BANDWEAR BAND
-
91700078 BACK-UP WASHERBACK-UP WASHER
-
101700057 NUTNUT
-
111700053 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
121700055 VALVE SCREWVALVE SCREW
-
131700170 CIRCLIPCIRCLIP
-
141700180 CYL-HEAD O-RINGCYL-HEAD O-RING
-
151700164 RES END CAP W/VALVERES END CAP W/VALVE
-
161700262 CYLINDER, RESERVOIRCYLINDER, RESERVOIR
-
171700048 IFP-O-RINGIFP-O-RING
-
181700203 IFPIFP
-
191700054 BLEED SCREW, IFPBLEED SCREW, IFP
-
201700016 BLEED SCREW O-RINGBLEED SCREW O-RING
-
211700197 CLAMP-HOSECLAMP-HOSE
-
221700263 ASM., ADJUSTERASM., ADJUSTER
-
231700264 ASM., LINE, BANJOASM., LINE, BANJO
-
241700265 WASHER, COPPERWASHER, COPPER
-
251700266 BOLT, BANJOBOLT, BANJO
-
267512410 BOLTBOLT
-
275010422 BUSHINGBUSHING
-
287547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
297518263 SCR-3/8-24X4.00 HXCP-GR5-YSCR-3/8-24X4.00 HXCP-GR5-Y
-
307555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
315333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
322203880 KIT-SHOCK ADJ KNOB [INCL. SCREW, KNOB, SPRING, BALL]KIT-SHOCK ADJ KNOB [INCL. SCREW, KNOB, SPRING, BALL]
