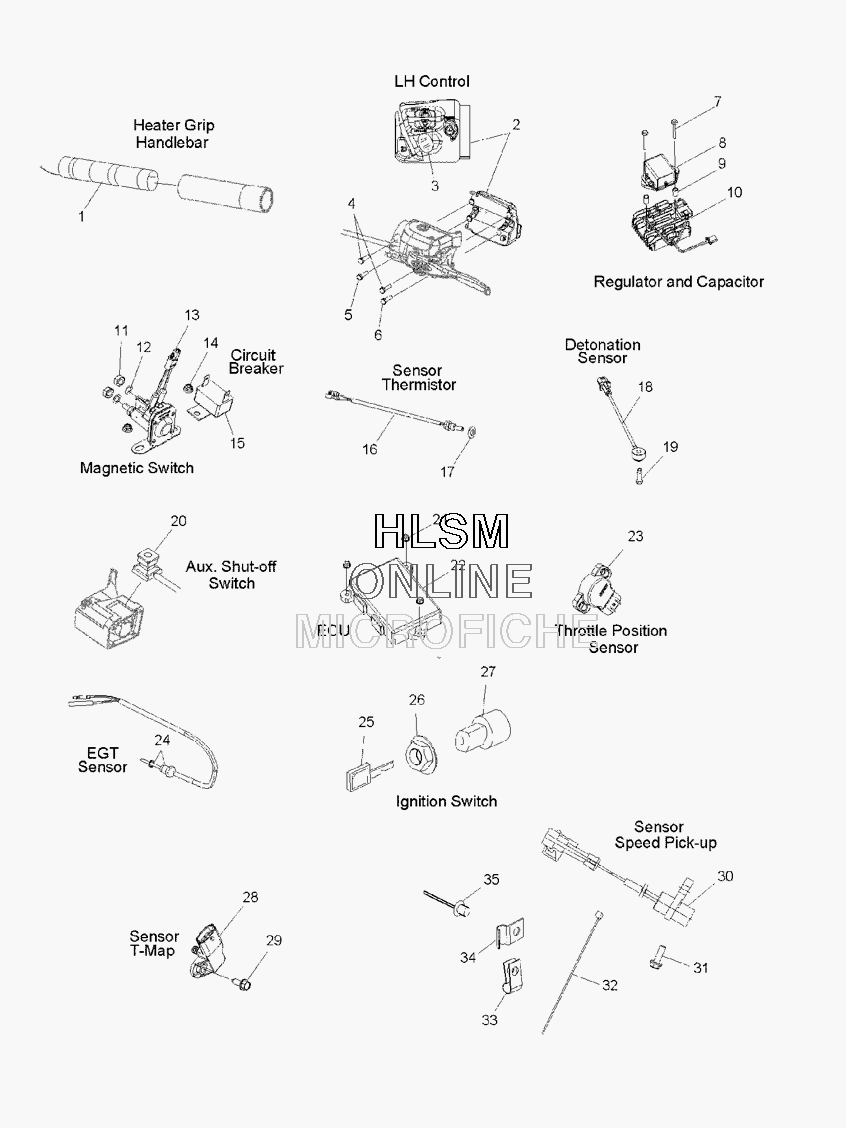

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 DRAGON SWITCHBACK EURO (S09PS6HEL) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2410777 HEATER-GRIP, LO/MED/HI, SHORT
    HEATER-GRIP, LO/MED/HI, SHORT
  • 2
    2010290 ASM-CONTROL, LEFT HAND, MFG (INCL. 3)
    ASM-CONTROL, LEFT HAND, MFG (INCL. 3)
  • 3
    5433291 BUTTON SWITCH HI/LO, LEFT HAND CONTROL
    BUTTON SWITCH HI/LO, LEFT HAND CONTROL
  • 4
    7517441 SCREW, .75
    SCREW, .75
  • 5
    7512078 SCREW, 1.12
    SCREW, 1.12
  • 6
    7517566 SCREW, 1.50
    SCREW, 1.50
  • 7
    7518157 SCR-M5X.8X50MM
    SCR-M5X.8X50MM
  • 8
    4011114 CAPACITOR
    CAPACITOR
  • 9
    5010339 SPACER
    SPACER
  • 10
    4011731 REGULATOR, SDI
    REGULATOR, SDI
  • 11
    7542105 NUT HEX
    NUT HEX
  • 12
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 13
    4012358 MAGNETIC SWITCH
    MAGNETIC SWITCH
  • 15
    2434009 CKT.BREAKER, 12A.
    CKT.BREAKER, 12A.
  • 16
    4010868 SENSOR-WATER TEMP
    SENSOR-WATER TEMP
  • 17
    7556357 WASHER-18X12X2.5MM-COPPER
    WASHER-18X12X2.5MM-COPPER
  • 18
    2410369 SENSOR-DETONATION BOSCH
    SENSOR-DETONATION BOSCH
  • 19
    7517262 SCR-M8X1.25X30, HX/FL-YD
    SCR-M8X1.25X30, HX/FL-YD
  • 20
    4011540 SWITCH-AUX SHUT-OFF
    SWITCH-AUX SHUT-OFF
  • 21
    7547274 NUT-M6 FLANGE, NYLOK
    NUT-M6 FLANGE, NYLOK
  • 22
    4011518 ECU-BASE, KOK, 600/700 SDI
    ECU-BASE, KOK, 600/700 SDI
  • 23
    3131591 SENSOR-THROTTLE POSITION
    SENSOR-THROTTLE POSITION
  • 24
    2410983 ASM-EGT SENSOR W/WASHER
    ASM-EGT SENSOR W/WASHER
  • 24
    4011523 SENSOR-EXHAUST TEMP
    SENSOR-EXHAUST TEMP
  • 25
    5410611 KEY (SEE NOTE)
    KEY (SEE NOTE)
  • 26
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 27
    2200358 KIT, IGN.SWITCH
    KIT, IGN.SWITCH
  • 28
    2410422 SENSOR-T MAP
    SENSOR-T MAP
  • 29
    7512095 SCREW
    SCREW
  • 30
    2410376 SENSOR-SPEED PICKUP
    SENSOR-SPEED PICKUP
  • 31
    7512232 BOLT
    BOLT
  • 32
    7080138 CABLE TIE
    CABLE TIE
  • 33
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 34
    7080963 RETAINER-''J''CLP
    RETAINER-''J''CLP
  • 35
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
