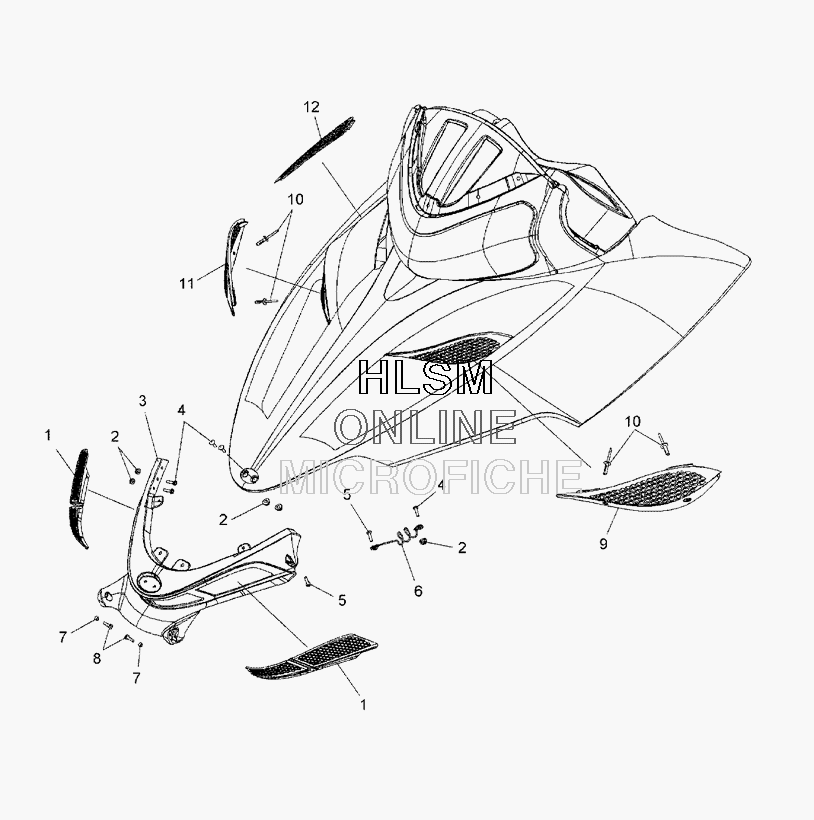

HOOD - SCREENS - HINGES для Polaris 600 DRAGON SWITCHBACK EURO (S09PS6HEL) - 2009 года выпуска`
-
№АртикулНазвание
-
15435848-070 SCREEN-HINGE, HI TEMP, LEFT HAND, BLACKSCREEN-HINGE, HI TEMP, LEFT HAND, BLACK
-
15435849-070 SCREEN-HINGE, HI TEMP, RIGHT HAND, BLACKSCREEN-HINGE, HI TEMP, RIGHT HAND, BLACK
-
17081040 RIVET-PLASTIC, R-LOCK, .197 DIARIVET-PLASTIC, R-LOCK, .197 DIA
-
27548287 NUTNUT
-
47518281 SCR-10-24X5/8 TORX TH MS STL YSCR-10-24X5/8 TORX TH MS STL Y
-
57518577 SCR-10X 5/8 TX PN PLST-243SCR-10X 5/8 TX PN PLST-243
-
67081133 CABLE-HOOD RETAINERCABLE-HOOD RETAINER
-
75334429 BUSHING-.277X.375X.38, 6061BUSHING-.277X.375X.38, 6061
-
87518285 SCR-#14X1 1/4 HI/LO PH TRX YSCR-#14X1 1/4 HI/LO PH TRX Y
-
95435846-070 SCREEN-HOOD, HI TEMP, LEFT HAND, BLACKSCREEN-HOOD, HI TEMP, LEFT HAND, BLACK
-
107081040 RIVET-PLASTIC, R-LOCK, .197 DIARIVET-PLASTIC, R-LOCK, .197 DIA
-
115435847-070 SCREEN-HOOD, HI TEMP, RIGHT HAND, BLACKSCREEN-HOOD, HI TEMP, RIGHT HAND, BLACK
-
125435923-070 SCREEN-HOOD, TOP, BLACKSCREEN-HOOD, TOP, BLACK
