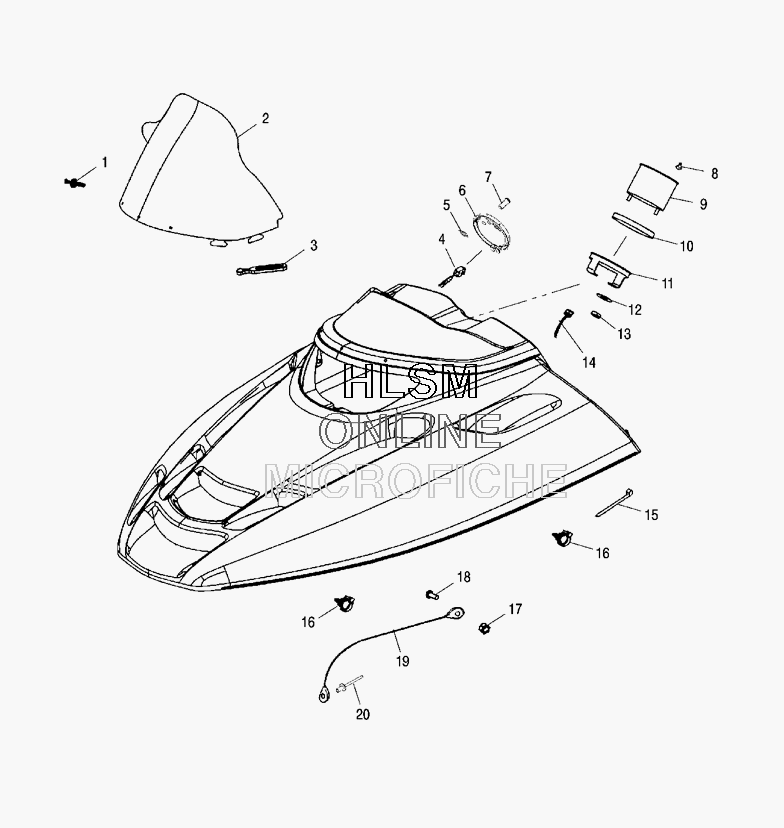

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris TRAIL TOURING EURO (S08NT5BE) - 2008 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
25436989 WINDSHIELD-17'', EDGE, CRWINDSHIELD-17'', EDGE, CR
-
35410970 RETAINER, WINDSHIELD,RETAINER, WINDSHIELD,
-
42461031 HARNESS-JUMPER, REVERSE LIGHTHARNESS-JUMPER, REVERSE LIGHT
-
57670133 RETAINER-1/2'' BOLT/LAMPRETAINER-1/2'' BOLT/LAMP
-
65434081 PLUG-DASH, 5'' W/SINGLE 1/2''HOLEPLUG-DASH, 5'' W/SINGLE 1/2''HOLE
-
74010687 INDICATOR-REVERSE, 1/2 DIAINDICATOR-REVERSE, 1/2 DIA
-
83280186 KNOB, TRIP ODOMETER, LEFT HAND THD.KNOB, TRIP ODOMETER, LEFT HAND THD.
-
93280411 ASM-SPD, 5'', 120MPH, WH/BK, W/O ANASM-SPD, 5'', 120MPH, WH/BK, W/O AN
-
94030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
103280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
113280210 BRKT, TACH/SPEEDO, 5''BRKT, TACH/SPEEDO, 5''
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE-SPEEDOMETERCABLE-SPEEDOMETER
-
157080138 CABLE TIECABLE TIE
-
164010589 CLIP-PLASTIC, DART NYLONCLIP-PLASTIC, DART NYLON
-
177541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
187512018 SCREWSCREW
-
197080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
207661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
