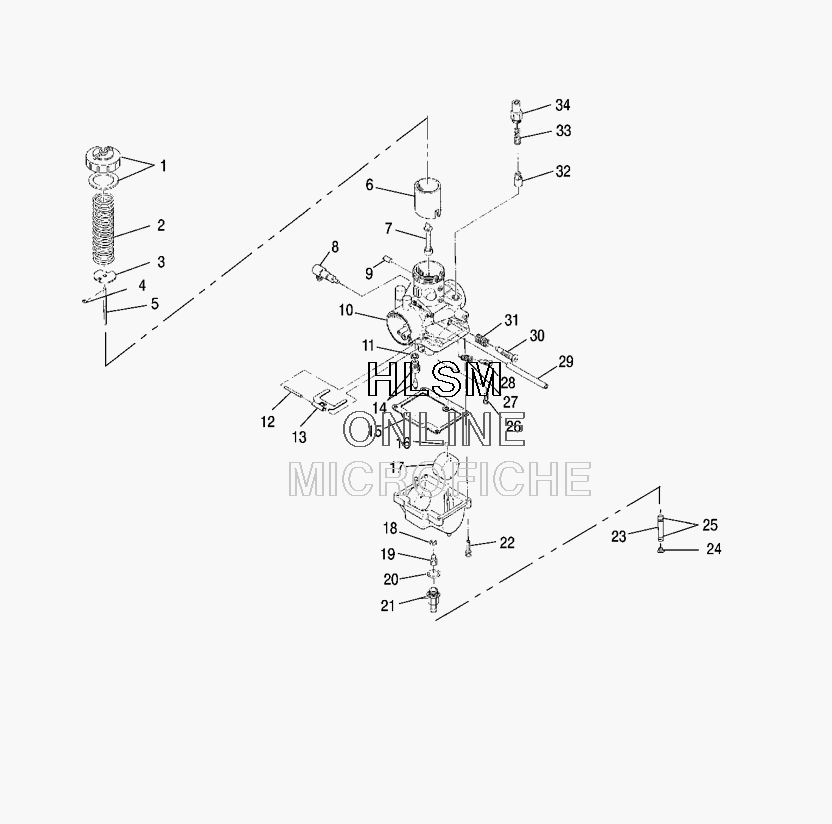

CARBURETOR ASSEMBLY для Polaris TRAIL TOURING EURO (S08NT5BE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3130184 ASM., TOP, MIXING CHAMBER
    ASM., TOP, MIXING CHAMBER
  • 2
    3130439 SPRING, THROTTLE
    SPRING, THROTTLE
  • 3
    3130027 PLATE, THROTTLE
    PLATE, THROTTLE
  • 4
    3130508 E-RING
    E-RING
  • 5
    3131592 NEEDLE, JET 6BGY-41
    NEEDLE, JET 6BGY-41
  • 6
    3130372 VALVE, THROTTLE, 3.0
    VALVE, THROTTLE, 3.0
  • 7
    3130964 JET, NEEDLE(Q-0)480
    JET, NEEDLE(Q-0)480
  • 8
    3086785 ASM., VALVE, CHECK
    ASM., VALVE, CHECK
  • 9
    3130479 CAP
    CAP
  • 10
    3131635 ASM-CARBURETOR VM34-623 (INCL. 1-22)
    ASM-CARBURETOR VM34-623 (INCL. 1-22)
  • 11
    3130017 PACKING, NEEDLE VALVE
    PACKING, NEEDLE VALVE
  • 12
    3130361 PIN, FLOAT
    PIN, FLOAT
  • 13
    3130018 ARM, FLOAT
    ARM, FLOAT
  • 14
    3131146 VALVE, NEEDLE, 1.5
    VALVE, NEEDLE, 1.5
  • 15
    3130020 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 16
    3130237 CAP
    CAP
  • 17
    3130430 FLOAT ASM.
    FLOAT ASM.
  • 18
    3130014 WASHER
    WASHER
  • 19
    3130127 JET, MAIN, HX.HD#240
    JET, MAIN, HX.HD#240
  • 20
    3130239 O RING
    O RING
  • 21
    3130573 NIPPLE
    NIPPLE
  • 22
    3130025 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 23
    8350017-600 FUEL, LINE, ETHER, RED, 5/16"
    FUEL, LINE, ETHER, RED, 5/16"
  • 24
    5431893 PLUG, TRAP
    PLUG, TRAP
  • 25
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    3130066 JET, PILOT, #35
    JET, PILOT, #35
  • 27
    3130012 SPRING, AIR ADJUST
    SPRING, AIR ADJUST
  • 28
    3130011 SCREW, AIR
    SCREW, AIR
  • 29
    3131288 HOSE
    HOSE
  • 30
    3130437 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 31
    3130010 SPRING
    SPRING
  • 32
    3130328 ASM., PLUNGER
    ASM., PLUNGER
  • 33
    3130006 SPRING, PLUNGER
    SPRING, PLUNGER
  • 34
    3130199 HOLDER, GUIDE
    HOLDER, GUIDE
