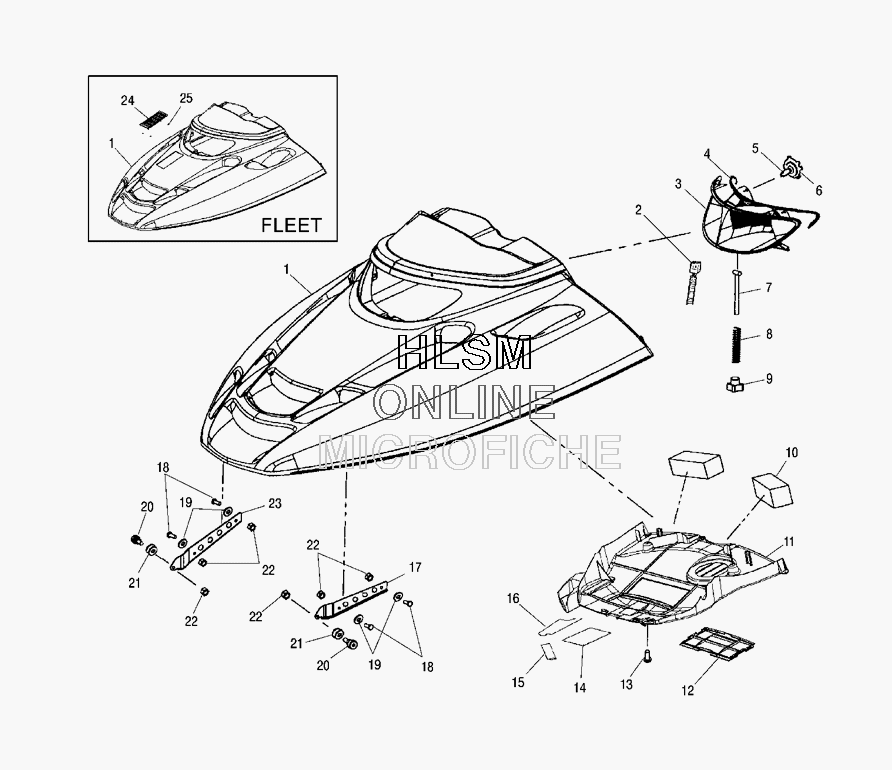

HOOD ASSEMBLY W/ HEADLIGHT для Polaris TRAIL RMK FLEET (S08NJ5BSF) - 2008 года выпуска
-
№АртикулНазвание
-
12633710-241 ASM-HOOD, 550 EDGE, PC, SVC, WHITEASM-HOOD, 550 EDGE, PC, SVC, WHITE
-
22461015 HARNESS-HEADLIGHT, E/RHARNESS-HEADLIGHT, E/R
-
32410132 ASM., HEADLAMP, 2-BULB (INCL. BULBS)ASM., HEADLAMP, 2-BULB (INCL. BULBS)
-
45812450 SEAL-HEADLIGHT, ONE PIECESEAL-HEADLIGHT, ONE PIECE
-
52870448 BULB, QUARTZ.H/L H4, 60/55WBULB, QUARTZ.H/L H4, 60/55W
-
64032063 RETAINER, H/L BULBRETAINER, H/L BULB
-
77517872 BOLT-TEE ADJUSTER, 2.25BOLT-TEE ADJUSTER, 2.25
-
87041954 SPRING-HEADLIGHT ADJUSTSPRING-HEADLIGHT ADJUST
-
97080887 KNOB, HEADLIGHT, ADJUST, LOCKINGBKNOB, HEADLIGHT, ADJUST, LOCKINGB
-
105811793 FOAM, PREFILTERFOAM, PREFILTER
-
112633400 ASM-PLENUM FOIL, 550 (INCL. 14-16)ASM-PLENUM FOIL, 550 (INCL. 14-16)
-
125433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
137512068 SCREWSCREW
-
145813091 FOIL-PLENUM, BRAKE DUCTFOIL-PLENUM, BRAKE DUCT
-
155811948 FOIL-4.5X1.0FOIL-4.5X1.0
-
165812324 FOILFOIL
-
175243567-067 HINGE-UPPER, BLACK, LEFT HANDHINGE-UPPER, BLACK, LEFT HAND
-
187512240 BOLTBOLT
-
197558301 WASHER, FLATWASHER, FLAT
-
207512113 BOLTBOLT
-
215332403 SPACERSPACER
-
227542122 NUT-NYLOKNUT-NYLOK
-
235243568-067 HINGE-UPPER, BLACK, RIGHT HANDHINGE-UPPER, BLACK, RIGHT HAND
-
245430958-070 GRILL, BLACK, LOUVERED (FLEET)GRILL, BLACK, LOUVERED (FLEET)
-
257670009 PALNUT (FLEET)PALNUT (FLEET)
