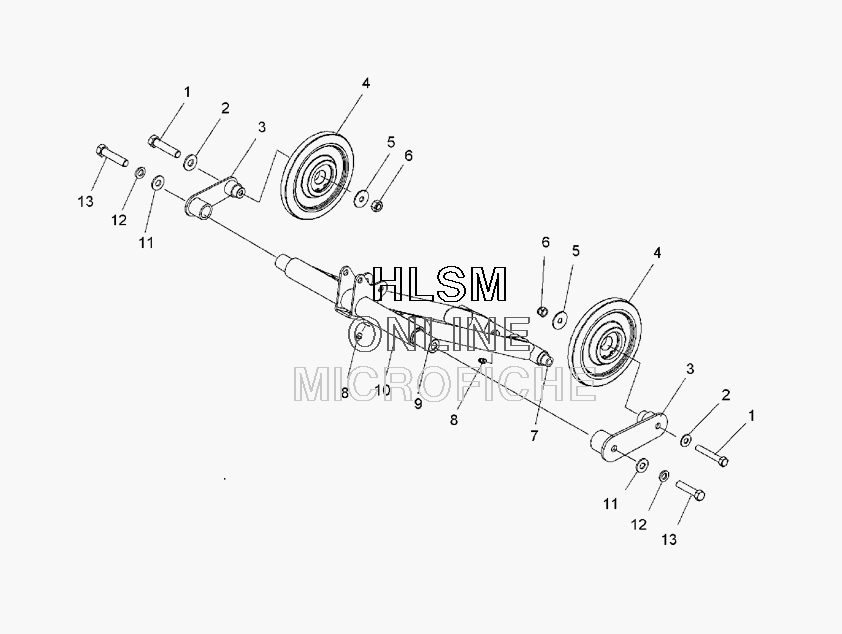

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris IQ TURBO LX (S08PD7FS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7515485 BOLT
    BOLT
  • 2
    7556188 WASHER-FLEFT HAND390X.750X.065-Y
    WASHER-FLEFT HAND390X.750X.065-Y
  • 3
    1542219-067 WELD-CARRIER WHEEL BRKT, BLACK
    WELD-CARRIER WHEEL BRKT, BLACK
  • 4
    1590278 WHEEL ASM, PLAIN, BLACK.
    WHEEL ASM, PLAIN, BLACK.
  • 4
    3514303 BEARING #6205
    BEARING #6205
  • 4
    7718407 RING-RETAINING
    RING-RETAINING
  • 5
    7556157 WASHER, .391X1.25X.105-M
    WASHER, .391X1.25X.105-M
  • 6
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 7
    5133093 SHAFT-LOWER
    SHAFT-LOWER
  • 8
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 9
    5135277 SHAFT-RTA, M10, UPPER
    SHAFT-RTA, M10, UPPER
  • 10
    1542451-329 WELD-RTA, M-10, .803, BLACK
    WELD-RTA, M-10, .803, BLACK
  • 11
    7555984 WASHER, FLAT
    WASHER, FLAT
  • 12
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 13
    7518261 SCR-7/16-14X2.00 HXCP-P80-GR5Y
    SCR-7/16-14X2.00 HXCP-P80-GR5Y
