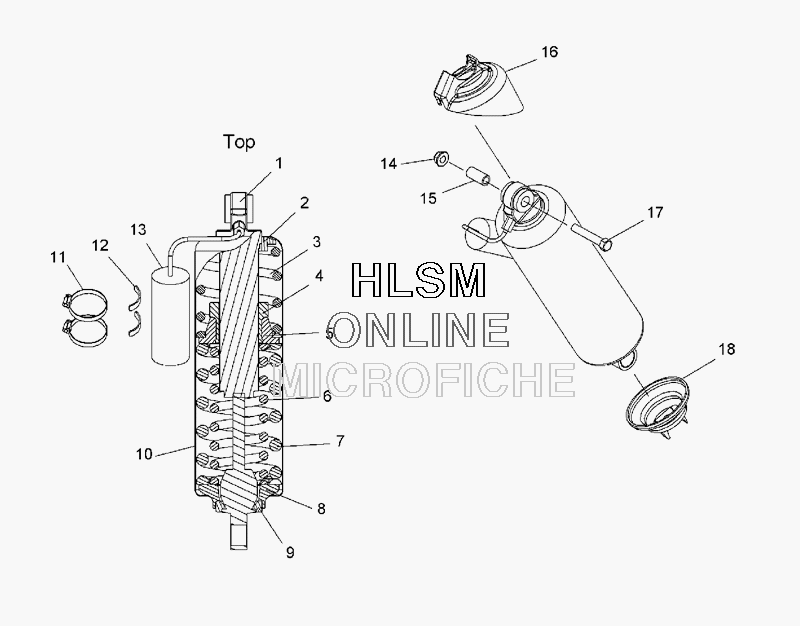

SUSPENSION - REAR SHOCK TRACK для Polaris IQ TURBO LX (S08PD7FS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7043216 SHOCK-R/T, M-10
    SHOCK-R/T, M-10
  • 2
    5134921 RETAINER-SPRING, M10, RTS, UPPER
    RETAINER-SPRING, M10, RTS, UPPER
  • 3
    7042207-067 SPRING-COM, .375R, 5.20, 273#, BLACK
    SPRING-COM, .375R, 5.20, 273#, BLACK
  • 4
    5436109 BUSHING-OVERLOAD, M10, RTS
    BUSHING-OVERLOAD, M10, RTS
  • 5
    5135077 RETAINER-SPR, M10, RTS, MID, .25
    RETAINER-SPR, M10, RTS, MID, .25
  • 6
    7042206-067 SPRING-COM, .394R, 5.46, 629#, BLACK
    SPRING-COM, .394R, 5.46, 629#, BLACK
  • 7
    7042208-067 SPRING-COM, .515R, 6.40, 715#, BLACK
    SPRING-COM, .515R, 6.40, 715#, BLACK
  • 8
    5134780 RETAINER-SPRING, M10, RTS, LOWER
    RETAINER-SPRING, M10, RTS, LOWER
  • 9
    5133778 COLLAR-SPRING, SLOTTED
    COLLAR-SPRING, SLOTTED
  • 10
    2683871 COVER-SPRING, NYLON, M10, RTS
    COVER-SPRING, NYLON, M10, RTS
  • 11
    7081261 CLAMP-HOSE, 1-2DIA, 5/16 WIDE, SS
    CLAMP-HOSE, 1-2DIA, 5/16 WIDE, SS
  • 12
    5812812 PAD-RUBBER, ADHESIVE, 3/8X1-5/8
    PAD-RUBBER, ADHESIVE, 3/8X1-5/8
  • 13
    7173566 DECAL-M-10, FOX, RES
    DECAL-M-10, FOX, RES
  • 14
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 15
    5333905 SLEEVE, .385X.560X1.24
    SLEEVE, .385X.560X1.24
  • 16
    5436400 CAP-SHOCK END, M10, TOP
    CAP-SHOCK END, M10, TOP
  • 17
    7515415 SCREW
    SCREW
  • 18
    5436401 CAP-SHOCK END, M10, BOTTOM
    CAP-SHOCK END, M10, BOTTOM
