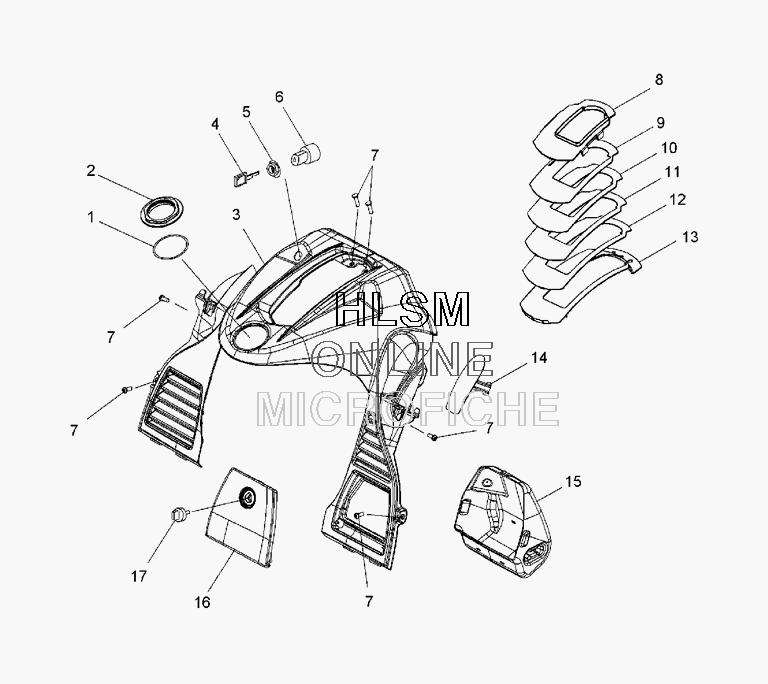

CONSOLE для Polaris IQ TURBO DRAGON EURO (S08PP7FE) - 2008 года выпуска
-
№АртикулНазвание
-
15411174 O-RINGO-RING
-
25435156 NUT-FILLER NECKNUT-FILLER NECK
-
32633279-070 ASM-CONSOLE, SDI, BLACK (INCL. WARNING DECALS)ASM-CONSOLE, SDI, BLACK (INCL. WARNING DECALS)
-
45410611 KEY (SEE NOTE)KEY (SEE NOTE)
-
57547035 NUT, IGNITIONNUT, IGNITION
-
62200358 KIT, IGN.SWITCHKIT, IGN.SWITCH
-
77517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
85436222 COVER-ADJ STEERING, TOPCOVER-ADJ STEERING, TOP
-
95436223 PLATE-ADJ STEERING, 1PLATE-ADJ STEERING, 1
-
105436224 PLATE-ADJ STEERING, 2PLATE-ADJ STEERING, 2
-
115436225 PLATE-ADJ STEERING, 3PLATE-ADJ STEERING, 3
-
125436226 PLATE-ADJ STEERING, 4PLATE-ADJ STEERING, 4
-
135436227 COVER-ADJ STEERING, BOTTOMCOVER-ADJ STEERING, BOTTOM
-
145436403-070 CLOSURE-RECOIL, Q, BLACKCLOSURE-RECOIL, Q, BLACK
-
155435944 COMPARTMENT-STORAGE, RIGHT HANDCOMPARTMENT-STORAGE, RIGHT HAND
-
162632858-070 DOOR ASM, CONSOLE, RIGHT HAND, BLACKDOOR ASM, CONSOLE, RIGHT HAND, BLACK
-
175435207-070 KEY-BLACKKEY-BLACK
Все узлы модели:
- AIR INTAKE SYSTEM
- ALTERNATOR
- BATTERY BOX
- BRAKE ASSEMBLY
- CAM CHAIN W/ TENSIONERS
- CHASSIS - FRONT
- CHASSIS - REAR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- • CONSOLE
- COOLANT - INTERNAL
- COOLANT RAIL
- COOLING SYSTEM
- CRANKSHAFT AND BALANCE SHAFT
- CYLINDER AND CRANKCASE
- DECALS
- DRIVE GEAR W/ PULLEY
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ECU MOUNTING
- ELECTRICAL - SENSORS AND SWITCHES
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL RAIL
- FUEL SYSTEM
- GEARCASE ASSEMBLY
- GEARCASE COVER
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- IGNITION COILS
- MOUNTING - L.H.
- MOUNTING - R.H. AND FRONT
- OIL COOLING SYSTEM
- OIL FILTER
- OIL PUMP ASSEMBLY
- OIL SUMP
- PISTON W/ BEARING
- REFERENCE HOSES
- SEAT W/ TAILLIGHT
- SHORT BLOCK
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - LOWER
- STEERING LINKAGE
- STEERING POST - HOOP
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - RAIL MOUNTING (M-10)
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK IFS
- SWAY BAR
- THROTTLE BODY W/ INTAKE MANIFOLD
- TOOL KIT
- TURBO
- VALVE COVER
- VALVE TRAIN
- VALVES
- WATER PUMP
- WINDSHIELD
- WIRE HARNESS
- WIRE HARNESS KIT
