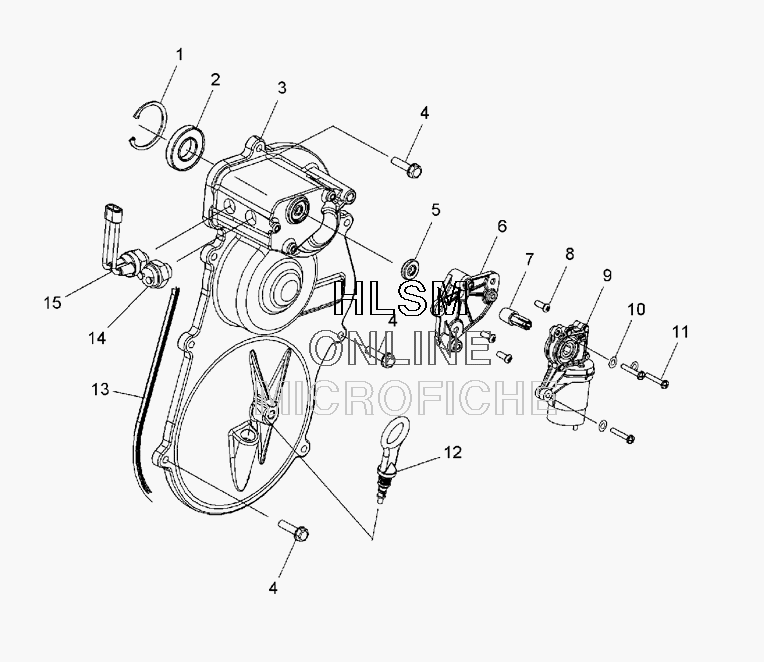

GEARCASE COVER для Polaris IQ CRUISER AND EURO (S08PY7FS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7710560 RING-RTNG, INT, 3000X-165
    RING-RTNG, INT, 3000X-165
  • 2
    3514476 BEARING-BALL 20MM, 16004
    BEARING-BALL 20MM, 16004
  • 3
    1332317 ASM-COVER REVERSE (INCL. 1, 2, 5, 13)
    ASM-COVER REVERSE (INCL. 1, 2, 5, 13)
  • 4
    7512225 SCREW
    SCREW
  • 5
    3610109 SEAL-OIL .375X.725X.180
    SEAL-OIL .375X.725X.180
  • 6
    5436152 BRKT-REV ACT MNT NYLON 66
    BRKT-REV ACT MNT NYLON 66
  • 7
    5436807 COUPLER-REVERSE ACTUATOR
    COUPLER-REVERSE ACTUATOR
  • 8
    7512024 SCREW (INC 6,7)
    SCREW (INC 6,7)
  • 9
    1332477 ASM-ACTUATOR
    ASM-ACTUATOR
  • 10
    7555727 WASHER
    WASHER
  • 11
    7518046 SCR-#8X1 PN-PH H/L-Y
    SCR-#8X1 PN-PH H/L-Y
  • 12
    1332250 ASM-DIPSTICK, W/MAGNET, EDGE
    ASM-DIPSTICK, W/MAGNET, EDGE
  • 13
    5412542 GASKET-8.424, CHAINCASE
    GASKET-8.424, CHAINCASE
  • 14
    4011005 POSITION-SWITCH INDICATOR
    POSITION-SWITCH INDICATOR
  • 15
    4011340 SWITCH-POSITION TYP21-670
    SWITCH-POSITION TYP21-670
