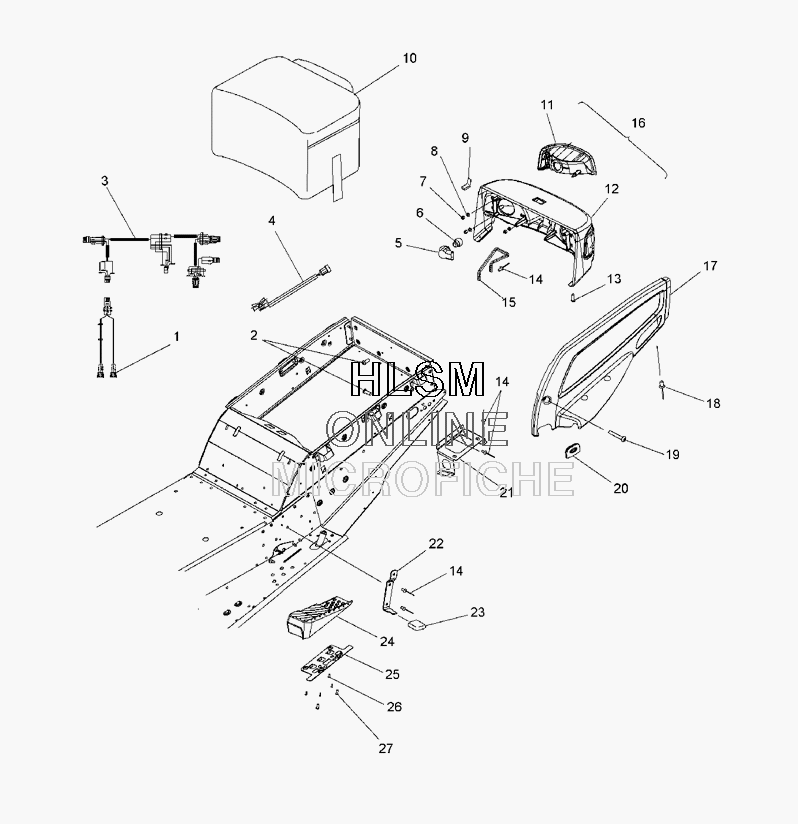

CARGO BOX W/ TAILLIGHT ASSY для Polaris IQ CRUISER AND EURO (S08PY7FS) - 2008 года выпуска

‹-+›

№

Артикул

Название
1

2410533 HARNESS-PASS, HANDWARMERS

HARNESS-PASS, HANDWARMERS
2

7512076 SCREW

SCREW
3

2410811 HARNESS-TAIL LIGHT (INCL. 4, 5)

HARNESS-TAIL LIGHT (INCL. 4, 5)
4

2461144 HARNESS/SWITCH, PASS.HTR, W/TE

HARNESS/SWITCH, PASS.HTR, W/TE
5

4010767 SOCKET-BULB

SOCKET-BULB
6

4010764 BULB-TAILLIGHT

BULB-TAILLIGHT
7

7546703 NUT, NYLOK

NUT, NYLOK
8

7556088 WASHER, FLAT

WASHER, FLAT
9

7670042 U CLIP

U CLIP
10

2875964 BAG, 2 UP TOURING

BAG, 2 UP TOURING
11

2410327 ASM-REFLECTOR, LEFT HAND

ASM-REFLECTOR, LEFT HAND
11

2410328 ASM-REFLECTOR, RIGHT HAND

ASM-REFLECTOR, RIGHT HAND
13

7670125 FASTNER-PUSH-ON CLIP, .250

FASTNER-PUSH-ON CLIP, .250
14

7661637 RIVET, INTERLOCK, Z

RIVET, INTERLOCK, Z
15

5246523 BAIL-TRUNK LOCK

BAIL-TRUNK LOCK
16

2410324-070 ASM-TAILLIGHT, EDGE TOURING, BLACK (INCL. 7-11, 12)

ASM-TAILLIGHT, EDGE TOURING, BLACK (INCL. 7-11, 12)
17

5435614-070 SKIRT-SNOW, TOURING, LEFT HAND, BLACK

SKIRT-SNOW, TOURING, LEFT HAND, BLACK
17

5435615-070 SKIRT-SNOW, TOURING, RIGHT HAND, BLACK

SKIRT-SNOW, TOURING, RIGHT HAND, BLACK
18

7621467 RIVET, BLIND

RIVET, BLIND
19

7517916 SCR-1/4-20X3/4-TR/TX/TAP-M

SCR-1/4-20X3/4-TR/TX/TAP-M
20

5412816 PLUG-RUBBER

PLUG-RUBBER
21

5248328-067 BRKT-LOWER ACC.ATTACH, LEFT HAND, BLACK

BRKT-LOWER ACC.ATTACH, LEFT HAND, BLACK
21

5248329-0672 BRKT-SKIRT MOUNT, BLACK

BRKT-SKIRT MOUNT, BLACK
23

5412101 CAP-RUBBER, 3/8 ID

CAP-RUBBER, 3/8 ID
24

1015045 FOOTREST ASM, PASSENGER, LEFT HAND

FOOTREST ASM, PASSENGER, LEFT HAND
24

1015046 FOOTREST ASM, PASSENGER, RIGHT HAND

FOOTREST ASM, PASSENGER, RIGHT HAND
25

52490638 SCREW

SCREW
27

7515133 SCREW

SCREW
