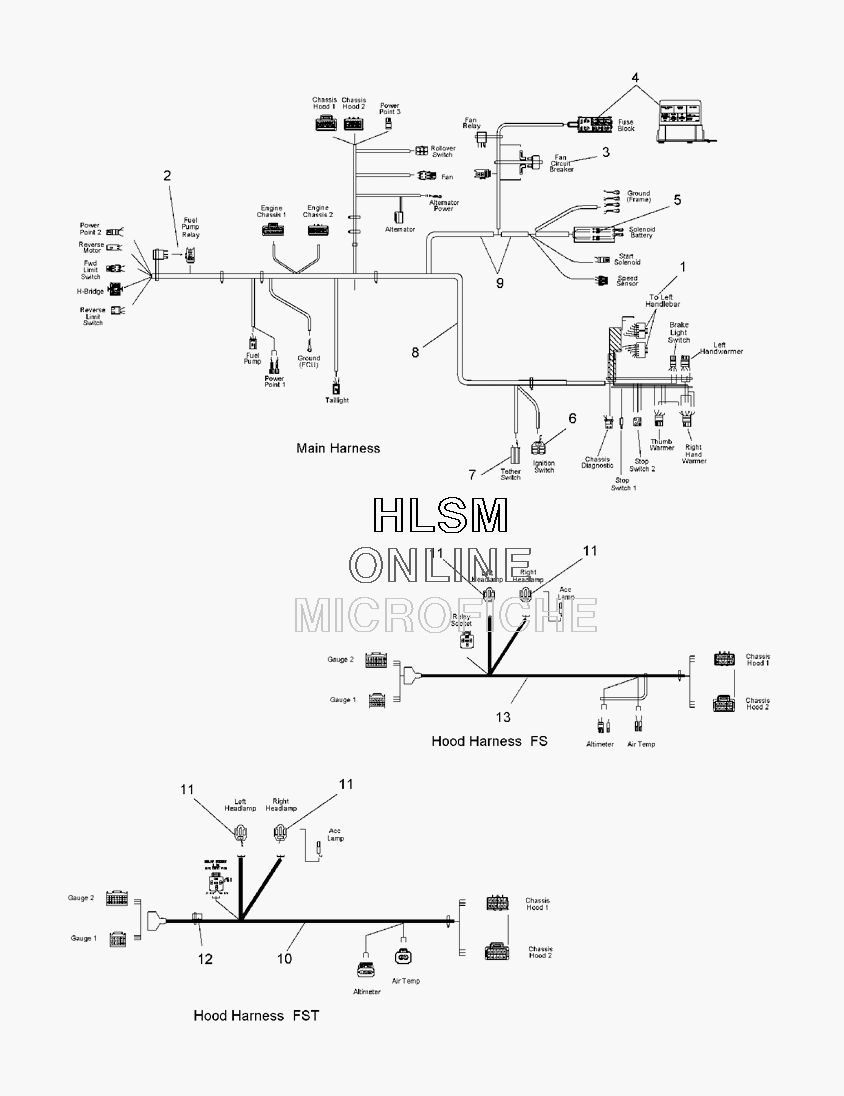

WIRE HARNESS - MAIN HOOD для Polaris FST IQ TOURING (S08PT7FS) - 2008 года выпуска
-
№АртикулНазвание
-
14010193 HOUSING-CONNECTOR, PAC#12186213HOUSING-CONNECTOR, PAC#12186213
-
24010948 RELAY-MICRO, SPST, 35A, SEALEDRELAY-MICRO, SPST, 35A, SEALED
-
32410692 BREAKER-CIRCUIT, 10 AMP, SEALEDBREAKER-CIRCUIT, 10 AMP, SEALED
-
42434017 FUSE, PARK, 20 AMP,FUSE, PARK, 20 AMP,
-
42434015 FUSE, MAIN, 30 AMP,FUSE, MAIN, 30 AMP,
-
47173525 DECALEFT HAND FUSE BOX, 4SDECALEFT HAND FUSE BOX, 4S
-
44010948 RELAY-MICRO, SPST, 35A, SEALEDRELAY-MICRO, SPST, 35A, SEALED
-
44012003 COVER-FUSEBOX, FS/T W/DECALCOVER-FUSEBOX, FS/T W/DECAL
-
52202147 KIT-FUSIBLE LINKKIT-FUSIBLE LINK
-
52202607 KIT-FUSIBLE LINK, 0.8 MMKIT-FUSIBLE LINK, 0.8 MM
-
52202670 KIT-FUSIBLE LINK, 1.0MMKIT-FUSIBLE LINK, 1.0MM
-
64020062 RECEPTACLE HOUSINGRECEPTACLE HOUSING
-
74020063 HOUSING, PACKHOUSING, PACK
-
82410922 HARNESS-MAIN WIRE, FS/FSTHARNESS-MAIN WIRE, FS/FST
-
92410694 DIODE-6AMP, 1/4 TERMDIODE-6AMP, 1/4 TERM
-
102410927 HARNESS-HOOD, FS/T, PREMIUMHARNESS-HOOD, FS/T, PREMIUM
-
114020052 TERMINALTERMINAL
-
124011149 BATTERY-CLOCK, 3V CR2032BATTERY-CLOCK, 3V CR2032
