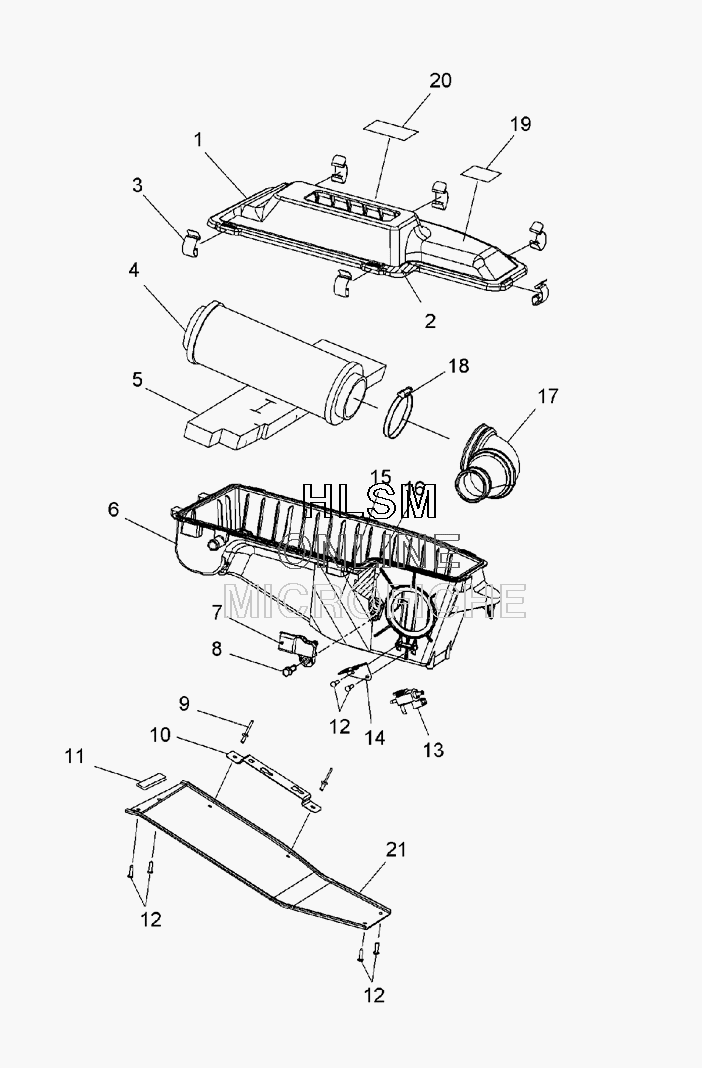

AIR INTAKE SYSTEM для Polaris FST IQ TOURING (S08PT7FS) - 2008 года выпуска
-
№АртикулНазвание
-
15435653 PLENUM-INTAKE, UPPER, HOPLENUM-INTAKE, UPPER, HO
-
25813005 FOIL-PLENUM, UPPERFOIL-PLENUM, UPPER
-
37670117 CLIPCLIP
-
45813164 FILTER-PLENUM, FSTFILTER-PLENUM, FST
-
55812950 FOAM-AIR BOX INTERNALFOAM-AIR BOX INTERNAL
-
65435592 PLENUM-INTAKE, LOWER FSTPLENUM-INTAKE, LOWER FST
-
72410422 SENSOR-T MAPSENSOR-T MAP
-
87512095 SCREWSCREW
-
97621432 RIVET, 3/16X.402RIVET, 3/16X.402
-
105248706 MOUNT-FUSE BOXMOUNT-FUSE BOX
-
115521131 TRIM, EDGE, 6FT, BLACKTRIM, EDGE, 6FT, BLACK
-
127512026 SCREWSCREW
-
134011285 VALVE, ELECTRONIC BOOST CONTROLVALVE, ELECTRONIC BOOST CONTROL
-
145249291 BRKT-MNT, WASTEGATE VALVEBRKT-MNT, WASTEGATE VALVE
-
155813007 FABRIC-PLENUM, LOWERFABRIC-PLENUM, LOWER
-
165813006 FOIL-PLENUM, LOWERFOIL-PLENUM, LOWER
-
175412829 CONNECTOR-PLENUM/TURBOCONNECTOR-PLENUM/TURBO
-
187080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
197173902 DECALDECAL
-
207172672 DECAL-ENGINE AND CLUTCHDECAL-ENGINE AND CLUTCH
-
215249752 REINFORCEMENT-PLENUMREINFORCEMENT-PLENUM
