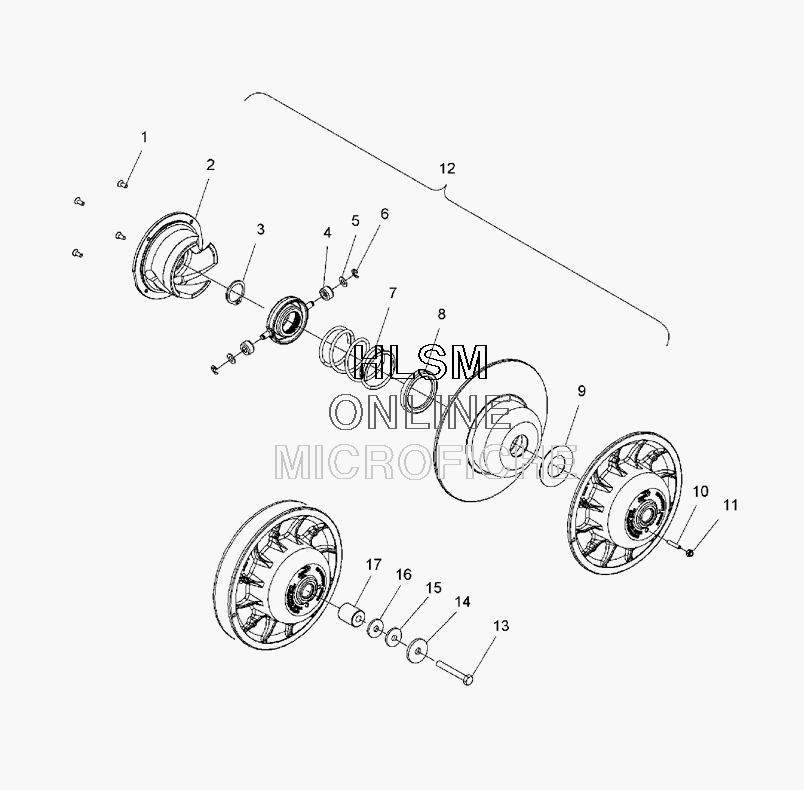

CLUTCH - DRIVEN для Polaris FST IQ TOURING (S08PT7FE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3234381 SCREW-CAP TORX SFCH1/4-28X.625
    SCREW-CAP TORX SFCH1/4-28X.625
  • 2
    5135537 RAMP-DVN(64/38.65)NON-REV
    RAMP-DVN(64/38.65)NON-REV
  • 3
    7710583 RET.RING-
    RET.RING-
  • 4
    5434534 ROLLER
    ROLLER
  • 5
    7556226 WASHER-THRUST
    WASHER-THRUST
  • 6
    7710523 RET.E-RING-E T.375
    RET.E-RING-E T.375
  • 7
    7043058 SPRING-DRVN CLTCH, LEFT HAND, RED/BLACK
    SPRING-DRVN CLTCH, LEFT HAND, RED/BLACK
  • 8
    7556227 WASHER-THRUST
    WASHER-THRUST
  • 9
    7556370 WASHER
    WASHER
  • 10
    3234228 SCREW-SET HEX SKT 1/4-20X1.25
    SCREW-SET HEX SKT 1/4-20X1.25
  • 11
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 12
    1322645 ASM-DRVN CL, TEAM, BSC, LWTSPLWD (INCL. 3-5, 8-11)
    ASM-DRVN CL, TEAM, BSC, LWTSPLWD (INCL. 3-5, 8-11)
  • 13
    7515369 BOLT
    BOLT
  • 14
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 15
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 16
    7555957 WASHER
    WASHER
  • 17
    5134371 SPACER-INPUT SHAFT, .875 OD
    SPACER-INPUT SHAFT, .875 OD
