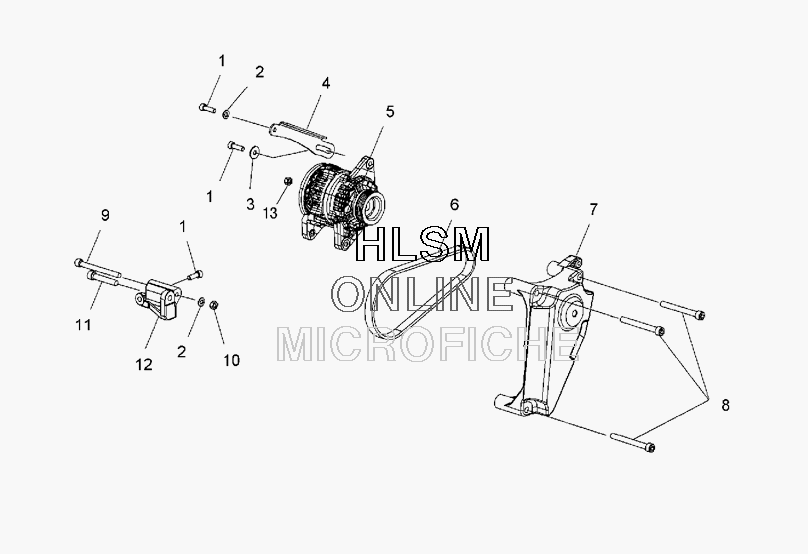

ALTERNATOR для Polaris FST IQ TOURING (S08PT7FE) - 2008 года выпуска
-
№АртикулНазвание
-
10452973 BOLT-M8X25BOLT-M8X25
-
20451527 WASHERWASHER
-
30452977 WASHERWASHER
-
40452975 CLAMP-ARMCLAMP-ARM
-
50452966 GENERATORGENERATOR
-
60452963 BELT-GENERATORBELT-GENERATOR
-
70452974 BRACKET-ENGINEBRACKET-ENGINE
-
80452976 BOLT-M10X90BOLT-M10X90
-
90451559 BOLTBOLT
-
100452968 NUT M8NUT M8
-
110452967 BOLT-M8X110BOLT-M8X110
-
120452972 BRACKET-GENERATORBRACKET-GENERATOR
-
137546707 NUTNUT
