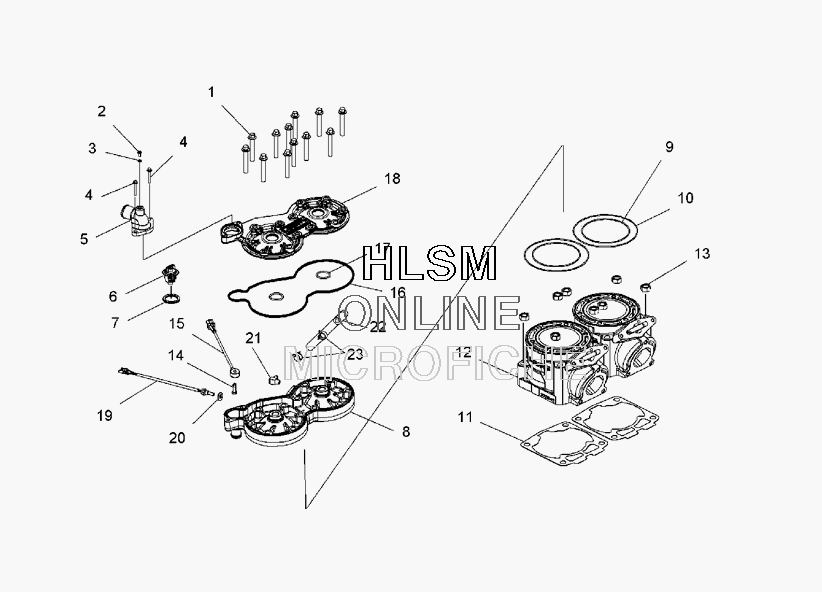

CYLINDER ASSEMBLY для Polaris 700 SWITCHBACK (S08PR6JS) - 2008 года выпуска
-
№АртикулНазвание
-
17517533 SCREW, M8X1.25X55SCREW, M8X1.25X55
-
27517679 SCREW, M6X1.0 X 13, SL/HX/FL-ZSCREW, M6X1.0 X 13, SL/HX/FL-Z
-
37555998 WASHER, FLATWASHER, FLAT
-
47516827 SCREWSCREW
-
55134756 COVER-THERMOSTAT M6 BLEED MACHCOVER-THERMOSTAT M6 BLEED MACH
-
67052433 THERMO-120°F W/O BYPASS HDTHERMO-120°F W/O BYPASS HD
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
83021768 HEAD-CYL 81 TWIN SDIHEAD-CYL 81 TWIN SDI
-
105411359 O-RINGO-RING
-
115813249 GASKET-CYLINDER BASEGASKET-CYLINDER BASE
-
123021866 CYLINDER-81MM SDI W/DECOMPCYLINDER-81MM SDI W/DECOMP
-
137547013 NUTNUT
-
147517262 SCR-M8X1.25X30, HX/FL-YDSCR-M8X1.25X30, HX/FL-YD
-
152410369 SENSOR-DETONATION BOSCHSENSOR-DETONATION BOSCH
-
157080138 CABLE TIECABLE TIE
-
165413036 SEAL-GLAND, HEADSEAL-GLAND, HEAD
-
175411411 O-RINGO-RING
-
185631822-329 CVR-HEAD, SDI, BLACKCVR-HEAD, SDI, BLACK
-
194010868 SENSOR-WATER TEMPSENSOR-WATER TEMP
-
207556357 WASHER-18X12X2.5MM-COPPERWASHER-18X12X2.5MM-COPPER
-
217052157 FITTING-5/16''HOSE BARB, 1/8-90°FITTING-5/16''HOSE BARB, 1/8-90°
-
225413080 HOSE-COOLANT, THROTTLE BODYHOSE-COOLANT, THROTTLE BODY
-
237081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
