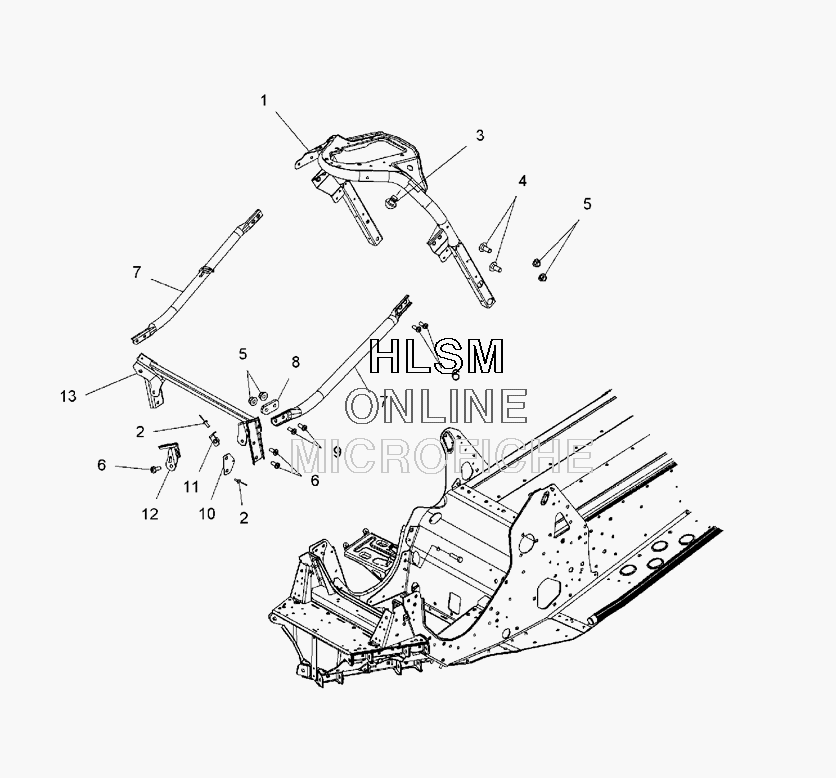

CHASSIS - HOOP для Polaris 700 SWITCHBACK (S08PR6JS) - 2008 года выпуска
-
№АртикулНазвание
-
11014605-067 WELD-STRG HOOP, BLACKWELD-STRG HOOP, BLACK
-
27661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
35411576 DAMPENER-VIBRATION, W/RIBSDAMPENER-VIBRATION, W/RIBS
-
47512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
57542343 NUT, FLANGENUT, FLANGE
-
67517810 SCR, 5/16X24X3/4 TRXPNHDSCR, 5/16X24X3/4 TRXPNHD
-
75334676-067 BRACE-UPPER BLACKHD, LEFT HAND, BLACKBRACE-UPPER BLACKHD, LEFT HAND, BLACK
-
71015381-067 WELD-BRACE UPR BLACKD, SPRTRIGHT HAND BLACKWELD-BRACE UPR BLACKD, SPRTRIGHT HAND BLACK
-
85135003 SPACER-CHASSIS BRACESPACER-CHASSIS BRACE
-
97518070 SCR-5/16-18X1, TRX, GR5, YSCR-5/16-18X1, TRX, GR5, Y
-
101014820 ASM-PLATE, NUTASM-PLATE, NUT
-
111015027 ASM-PLATE/NUTASM-PLATE/NUT
-
125249312-067 BRKT-EXHAUST SOLENOID, 600, BLACKBRKT-EXHAUST SOLENOID, 600, BLACK
-
131015368-067 WELD-CROSS MEMBER, BLACKWELD-CROSS MEMBER, BLACK
