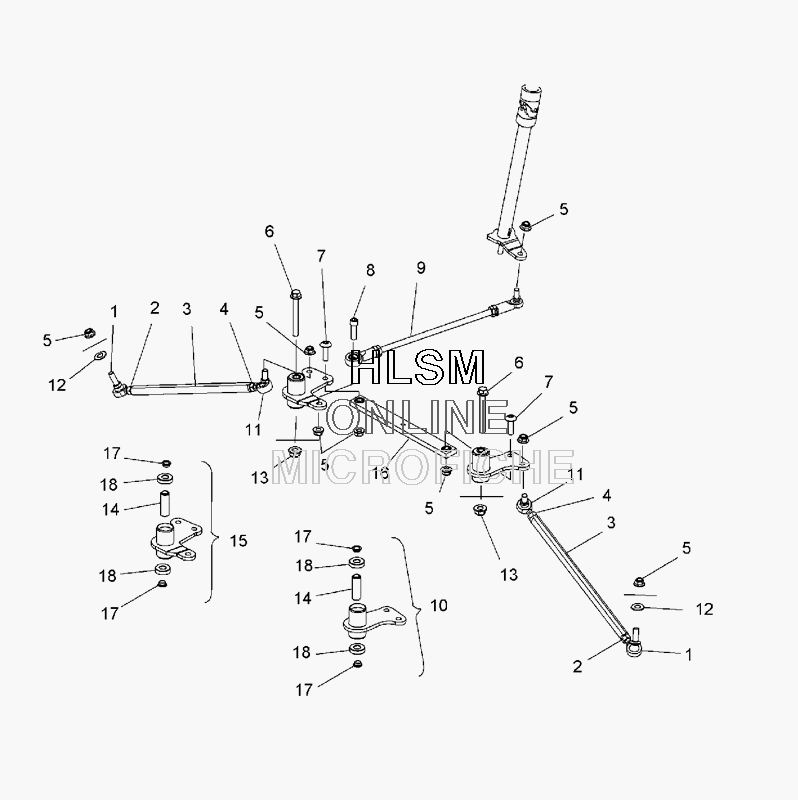

STEERING - LOWER для Polaris 700 IQ DRAGON (S08PP7JS) - 2008 года выпуска`

№

Артикул

Название
1

7061057 ROD END-3/8, PL, 75°, 1.00, RIGHT HAND

ROD END-3/8, PL, 75°, 1.00, RIGHT HAND

9 780 ₽
2

7542401 NUT, HEX, RIGHT HAND

NUT, HEX, RIGHT HAND

110 ₽
3

5334667 ROD-TIE

ROD-TIE

6 660 ₽
4

7542424 NUT, LEFT HAND

NUT, LEFT HAND

150 ₽
5

7547263 NUT-3/8-24 NYLOK

NUT-3/8-24 NYLOK

150 ₽
6

7518277 SCR-3/8-16X3.25 FLG HG5 Z

SCR-3/8-16X3.25 FLG HG5 Z

460 ₽
7

7518372 SCR-3/8-24X1.25 TX/TRUSS, GR5-Y

SCR-3/8-24X1.25 TX/TRUSS, GR5-Y

250 ₽
8

7515545 BOLT

BOLT

830 ₽
9

1822907 ASM-DRAGLINK, 15.31, FIXED

ASM-DRAGLINK, 15.31, FIXED

19 760 ₽
10

1821419 ASM., ARM-IDLER

ASM., ARM-IDLER

33 280 ₽
11

7061055 ROD END-3/8, PL, 75° LEFT HAND, 750 STUD

ROD END-3/8, PL, 75° LEFT HAND, 750 STUD

9 780 ₽
12

7555806 WASHER, FLAT

WASHER, FLAT

60 ₽
13

7547180 NUT-FLANGED, 3/8-16 NYLON-Z

NUT-FLANGED, 3/8-16 NYLON-Z

630 ₽
14

5135452 SPACER-TUBE PITMAN/IDLER ARMS

SPACER-TUBE PITMAN/IDLER ARMS

5 160 ₽
15

1822908 ASM-PITMAN ARM (INCL. 17-19)

ASM-PITMAN ARM (INCL. 17-19)

31 200 ₽
16

7061152 LINK-FIXED, 9.30

LINK-FIXED, 9.30

11 440 ₽
17

5132106 BUSHING-REDUCER, 12MM TO .385

BUSHING-REDUCER, 12MM TO .385

1 730 ₽
18

3514320 BEARING-BALL, 600ILLU

BEARING-BALL, 600ILLU

3 750 ₽
