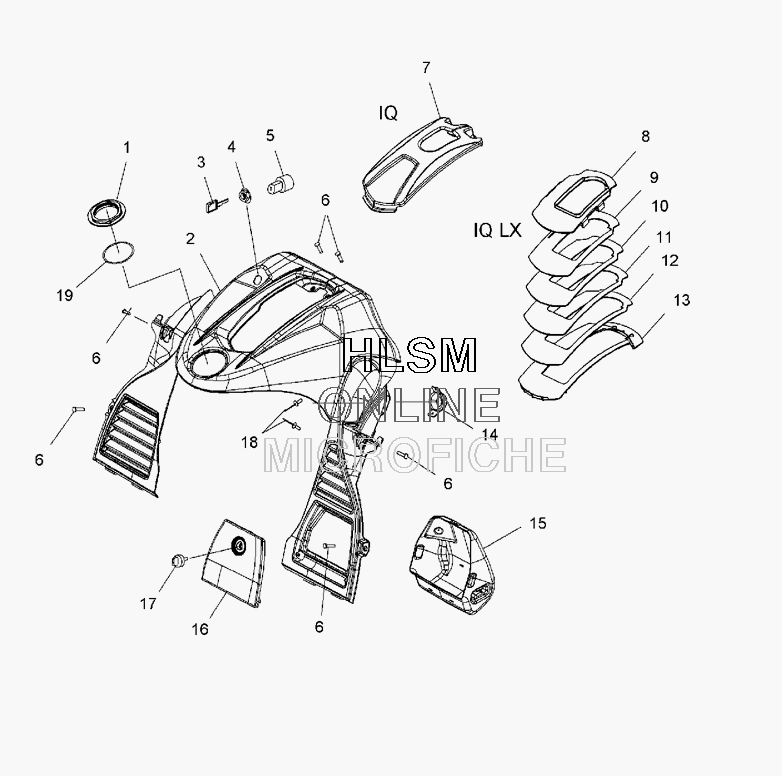

CONSOLE для Polaris 700 IQ DRAGON (S08PP7JS) - 2008 года выпуска
-
№АртикулНазвание
-
15435156 NUT-FILLER NECKNUT-FILLER NECK
-
22633279-070 ASM-CONSOLE, SDI, BLACK (INCL. WARNING DECALS)ASM-CONSOLE, SDI, BLACK (INCL. WARNING DECALS)
-
35410611 KEY (SEE NOTE)KEY (SEE NOTE)
-
47547035 NUT, IGNITIONNUT, IGNITION
-
52200358 KIT, IGN.SWITCHKIT, IGN.SWITCH
-
67517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
75436664 COVER-CONSOLE, FXD SPCOVER-CONSOLE, FXD SP
-
85436222 COVER-ADJ STEERING, TOPCOVER-ADJ STEERING, TOP
-
95436223 PLATE-ADJ STEERING, 1PLATE-ADJ STEERING, 1
-
145248563 BRKT-ROPE GUIDEBRKT-ROPE GUIDE
-
155435944 COMPARTMENT-STORAGE, RIGHT HANDCOMPARTMENT-STORAGE, RIGHT HAND
-
162632858-070 DOOR ASM, CONSOLE, RIGHT HAND, BLACK (INCL. LOCK)DOOR ASM, CONSOLE, RIGHT HAND, BLACK (INCL. LOCK)
-
175435207-070 KEY-BLACKKEY-BLACK
-
187621323 POP RIVETPOP RIVET
-
195411174 O-RINGO-RING
