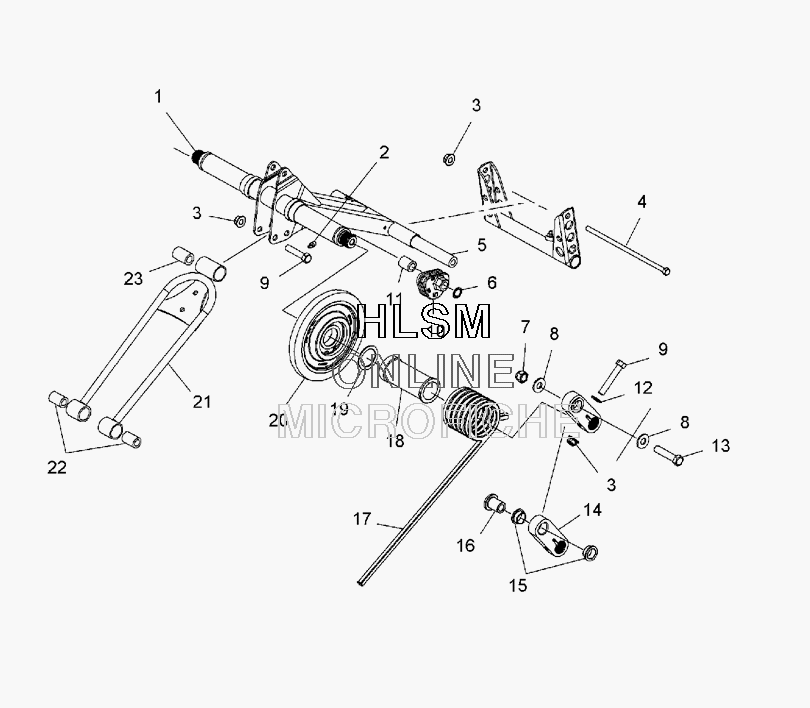

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 700 DRAGON SWITCHBACK (S08PS7JS) - 2008 года выпуска
-
№АртикулНазвание
-
11542136-067 RTA, IQ, BLACKRTA, IQ, BLACK
-
27080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
37547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
47518241 SCR-3/8-24X8.75, HXCP-GR8-YSCR-3/8-24X8.75, HXCP-GR8-Y
-
55133973 SHAFT-.740X.390X7.965, 6066SHAFT-.740X.390X7.965, 6066
-
67080394 CLIP, PUSH ONCLIP, PUSH ON
-
77547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
87555984 WASHER, FLATWASHER, FLAT
-
97515415 SCREWSCREW
-
105434589 ROLLER-SPRING, TRI-ADJ, LEFT HANDROLLER-SPRING, TRI-ADJ, LEFT HAND
-
105434590 ROLLER-SPRING, TRI-ADJ, RIGHT HANDROLLER-SPRING, TRI-ADJ, RIGHT HAND
-
115334285 SPACER-.520X.770X1.125, HDPESPACER-.520X.770X1.125, HDPE
-
127556188 WASHER-FLEFT HAND390X.750X.065-YWASHER-FLEFT HAND390X.750X.065-Y
-
137518271 BOLT-7/16-20X2-HXHDCAP-GR5-YBOLT-7/16-20X2-HXHDCAP-GR5-Y
-
141541967 ASM-ARM, 2.00 (INC 15)ASM-ARM, 2.00 (INC 15)
-
153514331 BUSHINGBUSHING
-
165134046 SHAFT-.445X.750X1.00, FLANGESHAFT-.445X.750X1.00, FLANGE
-
177043070-067 SPRING-TOR, .347S, 80, 11#, LEFT HAND, BLACK (OPT)SPRING-TOR, .347S, 80, 11#, LEFT HAND, BLACK (OPT)
-
177043071-067 SPRING-TOR, .347S, 80, 11#, RIGHT HAND, BLACK (OPT)SPRING-TOR, .347S, 80, 11#, RIGHT HAND, BLACK (OPT)
-
177043240-067 SPRING-TOR, .347S, 77, 9#, LEFT HAND, BLACK (OPT)SPRING-TOR, .347S, 77, 9#, LEFT HAND, BLACK (OPT)
-
177043241-067 SPRING-TOR, .347S, 77, 9#, RIGHT HAND, BLACK (OPT)SPRING-TOR, .347S, 77, 9#, RIGHT HAND, BLACK (OPT)
-
177043079-067 SPRING-TOR, .359, 12.5#, LEFT HAND, BLACK (STD)SPRING-TOR, .359, 12.5#, LEFT HAND, BLACK (STD)
-
177043080-067 SPRING-TOR, .359, 12.5#, RIGHT HAND, BLACK (STD)SPRING-TOR, .359, 12.5#, RIGHT HAND, BLACK (STD)
-
185434989 SLEEVE-TORSION SPRINGSLEEVE-TORSION SPRING
-
197555939 WASHERWASHER
-
201590001 ASM-WHEEL, PLAIN, 5.62, 6007ASM-WHEEL, PLAIN, 5.62, 6007
-
2077104861 BEARING-6007BEARING-6007
-
211542330-329 WELD-SHOCK ROD, BLACKWELD-SHOCK ROD, BLACK
-
225135043 BUSHING-.385X.560X.967BUSHING-.385X.560X.967
-
235134601 BUSHING-.385X.550X1.39BUSHING-.385X.550X1.39
