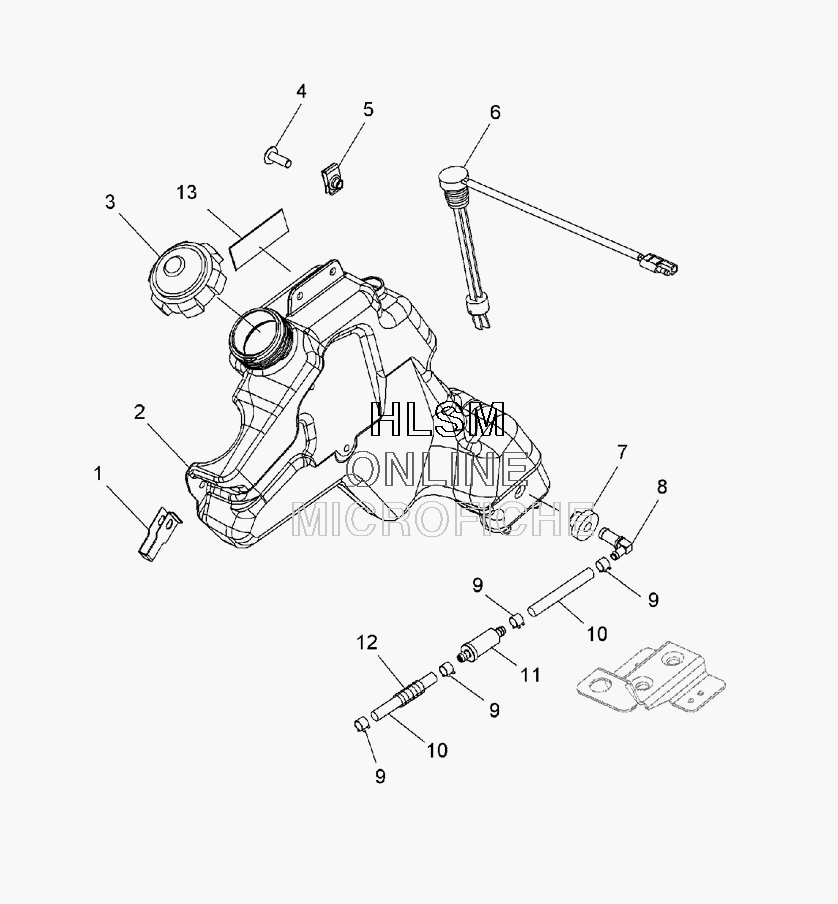

OIL TANK ASSEMBLY для Polaris 700 DRAGON SWITCHBACK (S08PS7JS) - 2008 года выпуска
-
№АртикулНазвание
-
17670145 NUT-1/4-20, U-TYPE(1.56-.190)NUT-1/4-20, U-TYPE(1.56-.190)
-
22520650 ASM-OIL TANK, 600 (INCL. 1, 6, 9, 10)ASM-OIL TANK, 600 (INCL. 1, 6, 9, 10)
-
31240094 CAP-OIL, VENTED/CUSTOM COLORCAP-OIL, VENTED/CUSTOM COLOR
-
47515199 SCREWSCREW
-
57670096 NUTNUT
-
64110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
77052362 GROMMET-FLANGED, .36X.56X1.06GROMMET-FLANGED, .36X.56X1.06
-
87052208 FTTNG, 90 D.PRESS-ONFTTNG, 90 D.PRESS-ON
-
97080307 CLAMP, HOSECLAMP, HOSE
-
108450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
112530009 FILTER, SMALL, IN-LINE,FILTER, SMALL, IN-LINE,
-
124010051-100 CONDUIT-CONVOLUTED, 100 CMCONDUIT-CONVOLUTED, 100 CM
-
137173616 DECAL-OIL, VES GOLDDECAL-OIL, VES GOLD
