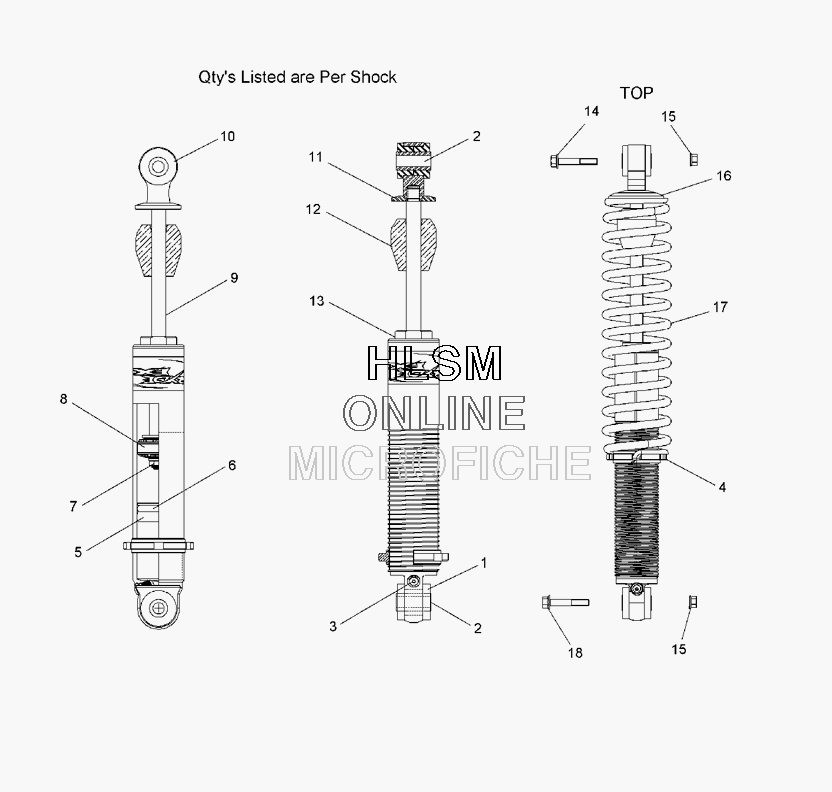

SUSPENSION - SHOCK IFS для Polaris 600 SWITCHBACK (S08PR6HS) - 2008 года выпуска`
-
№АртикулНазвание
-
-7043245 SHOCK-IFS, ALUM W/IFP 11.8X18.0SHOCK-IFS, ALUM W/IFP 11.8X18.0
-
11700036 BUSHINGBUSHING
-
21700079 SLEEVE-.38''IDX.63''ODX1.18 PMSLEEVE-.38''IDX.63''ODX1.18 PM
-
31700184 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
31700055 VALVE SCREWVALVE SCREW
-
41700237 NUT, SPRING RET.NUT, SPRING RET.
-
51700233 IFP, PLASTICIFP, PLASTIC
-
61700048 IFP-O-RINGIFP-O-RING
-
71700057 NUTNUT
-
81700235 PISTONPISTON
-
81700236 WEAR BANDWEAR BAND
-
81700077 TOP-OUT WASHERTOP-OUT WASHER
-
81700078 BACK-UP WASHERBACK-UP WASHER
-
91700228 SHAFTSHAFT
-
101700072 BUSHINGBUSHING
-
111700009 UPPER MOUNTUPPER MOUNT
-
121700230 BUMPERBUMPER
-
131700156 CYL HEAD ASM 215098-100CYL HEAD ASM 215098-100
-
147518554 SCR-3/8-16X2.25 HX FLG GR5 YSCR-3/8-16X2.25 HX FLG GR5 Y
-
157547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
165630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
177041576-133 SPRING-COMP, IFS, 10.80/100, WHTSPRING-COMP, IFS, 10.80/100, WHT
-
187518278 SCR-3/8-16X2 FLG HX GR5 ZSCR-3/8-16X2 FLG HX GR5 Z
