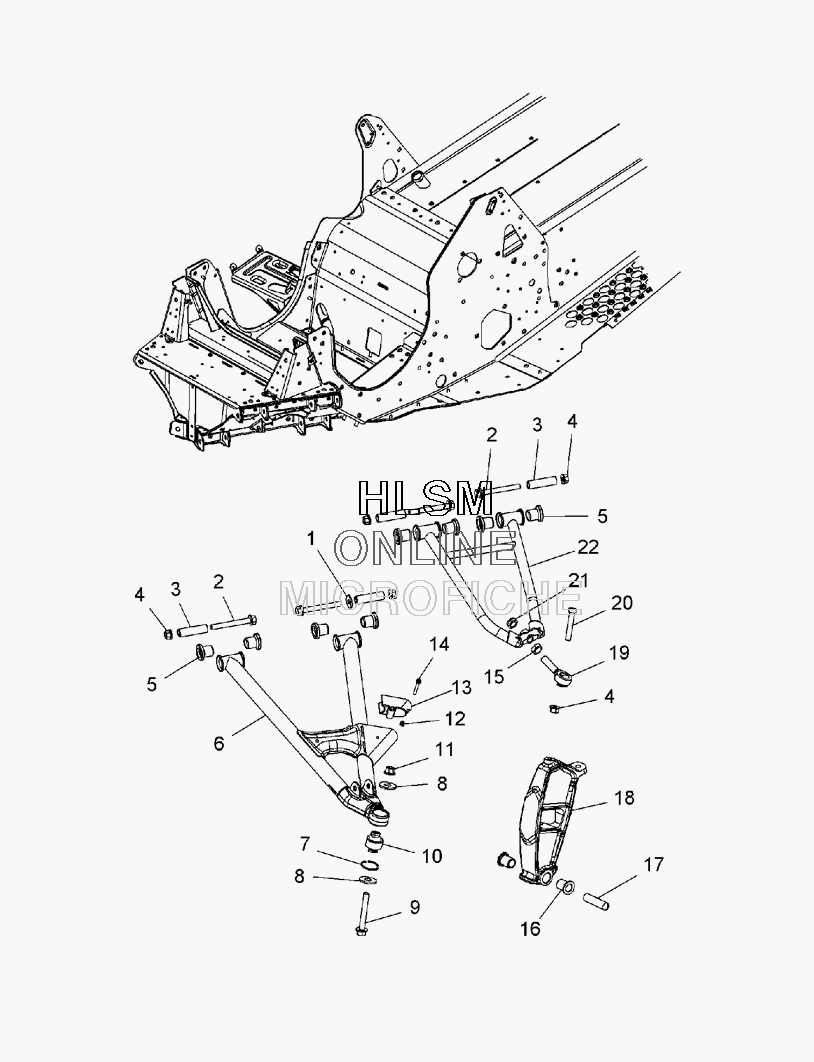

SUSPENSION - FRONT для Polaris 600 SWITCHBACK (S08PR6HS) - 2008 года выпуска
-
№АртикулНазвание
-
17555893 WASHER, FLATWASHER, FLAT
-
27518384 SCR-3/8-16X3.25 FLG HX GR8-YSCR-3/8-16X3.25 FLG HX GR8-Y
-
35135943 SHAFT-PIVOTSHAFT-PIVOT
-
47547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
55434932 BUSHING-PIVOTBUSHING-PIVOT
-
62203021-067 KIT-LCA, FUSION, SVC, LEFT HAND, BLACK (INCL. 3-7, 12-14)KIT-LCA, FUSION, SVC, LEFT HAND, BLACK (INCL. 3-7, 12-14)
-
62203022-067 KIT-LCA, FUSION, SVC, RIGHT HAND, BLACK (INCL. 3-7, 12-14)KIT-LCA, FUSION, SVC, RIGHT HAND, BLACK (INCL. 3-7, 12-14)
-
77710539 RING-RETAINING, 1.25 ID HSNGRING-RETAINING, 1.25 ID HSNG
-
87556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
97518478 SCR-3/8-24X3.00 HXCP GR8-YSCR-3/8-24X3.00 HXCP GR8-Y
-
102203107 KIT-BEARING, SPHERICAL, LOWER (INCL. 7)KIT-BEARING, SPHERICAL, LOWER (INCL. 7)
-
117547344 NUT-3/8-24 HEX LOC, GR8NUT-3/8-24 HEX LOC, GR8
-
127541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
135435522 SLIDE-SWAY BAR, 9/16SLIDE-SWAY BAR, 9/16
-
147518708 SCREW-#10-24X1.62, TRX/PN MC-YSCREW-#10-24X1.62, TRX/PN MC-Y
-
157542711 NUT-JAMNUT-JAM
-
165133983 BUSHING-SKI PIVOTBUSHING-SKI PIVOT
-
175010158 BUSHING, PIVOTBUSHING, PIVOT
-
181823248 ASM-SPINDLE, IQ, LEFT HAND (INCL. 16)ASM-SPINDLE, IQ, LEFT HAND (INCL. 16)
-
181823249 ASM-SPINDLE, IQ, RIGHT HAND (INCL. 16)ASM-SPINDLE, IQ, RIGHT HAND (INCL. 16)
-
197061145 ROD END-1/2, 30°ROD END-1/2, 30°
-
207518428 SCR-3/8-16X2.25, SOCHD SP-YSCR-3/8-16X2.25, SOCHD SP-Y
-
217547104 NUTNUT
-
222203019-067 KIT-UCA, FUSION, SVC, LEFT HAND, BLACK (INCL. 3, 5, 12, 15, 19, 21)KIT-UCA, FUSION, SVC, LEFT HAND, BLACK (INCL. 3, 5, 12, 15, 19, 21)
-
222203020-067 KIT-UCA, FUSION, SVC, RIGHT HAND, BLACK (INCL. 3, 5, 12, 15, 19, 21)KIT-UCA, FUSION, SVC, RIGHT HAND, BLACK (INCL. 3, 5, 12, 15, 19, 21)
