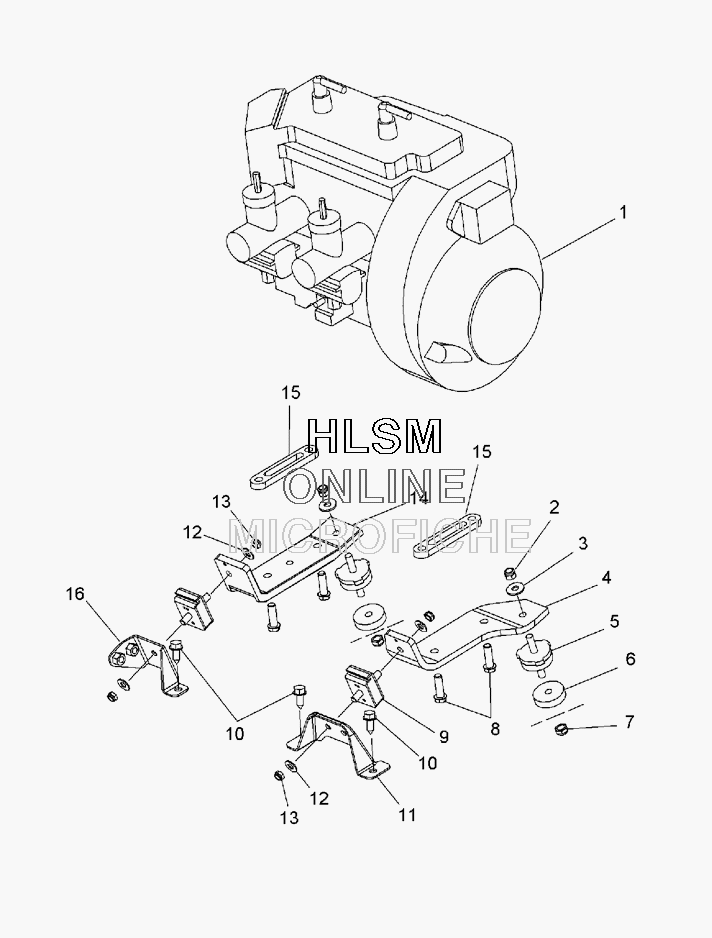

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 550 LX (S08ND5BS) - 2008 года выпуска`
-
№АртикулНазвание
-
13089739 ENGINE-EC55PM10/11-SB (SEE NOTE)ENGINE-EC55PM10/11-SB (SEE NOTE)
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45246193 STRAP-ENGINE MOUNT, RIGHT HANDSTRAP-ENGINE MOUNT, RIGHT HAND
-
53021220 MOUNT-ENGINE, 3/8-16MOUNT-ENGINE, 3/8-16
-
65245117 SPACER-ENGINE MOUNT .44SPACER-ENGINE MOUNT .44
-
77547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
87517399 SCREWSCREW
-
93021206 MOUNT-ENGINE, 3/8-16, RECTMOUNT-ENGINE, 3/8-16, RECT
-
107517854 SCR-3/8-16X1-P30-SPEC-YSCR-3/8-16X1-P30-SPEC-Y
-
115245044 BRKT-ENGINE MOUNT, RIGHT HAND, FORMEDBRKT-ENGINE MOUNT, RIGHT HAND, FORMED
-
127555806 WASHER, FLATWASHER, FLAT
-
137547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
145245466 STRAP-ENGINE MOUNT, LEFT HANDSTRAP-ENGINE MOUNT, LEFT HAND
-
155245020 SPACER-ENGINE, .38SPACER-ENGINE, .38
-
161013397 BRACKET, ENGINE MOUNTING, LEFT HANDBRACKET, ENGINE MOUNTING, LEFT HAND
