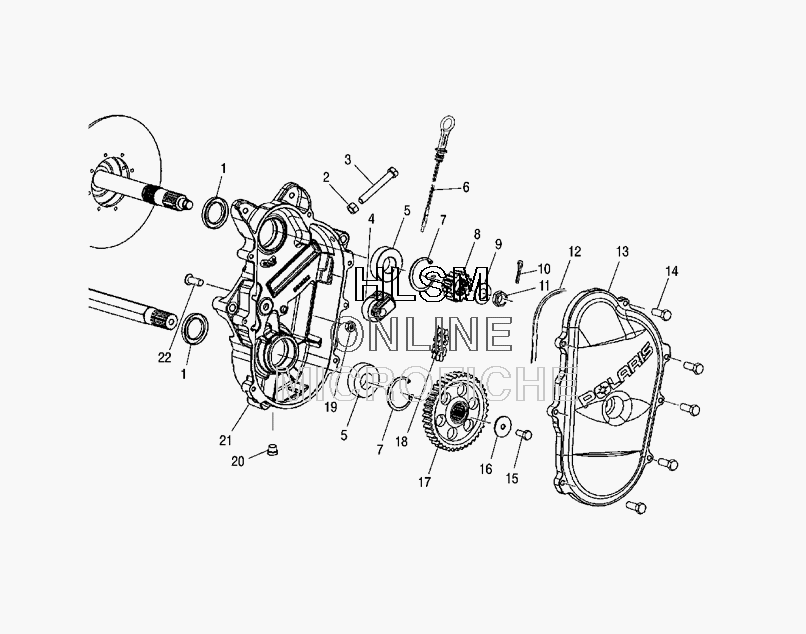

CHAINCASE ASSEMBLY для Polaris 550 LX (S08ND5BS) - 2008 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 ASM-TIGHTENER,CHAINASM-TIGHTENER,CHAIN
-
53514309 BEARING,BALL #6205BEARING,BALL #6205
-
61332143 ASM-DIPSTICK (INCL. O-RING)ASM-DIPSTICK (INCL. O-RING)
-
65410675 O-RINGO-RING
-
77718406 RING,RETAININGRING,RETAINING
-
83221095 SPKT,19T,3/4W,15 SPL,HV,PMSPKT,19T,3/4W,15 SPL,HV,PM
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN,COTTERPIN,COTTER
-
117547202 NUT-5/8-18 THIN,NYL INSERT-YNUT-5/8-18 THIN,NYL INSERT-Y
-
125812574 GASKET-CHAINCASE COVER,7.92GASKET-CHAINCASE COVER,7.92
-
135631354 COVER,CHAINCASE 7.92 CDCOVER,CHAINCASE 7.92 CD
-
147512242 SCREWSCREW
-
157518717 SCR-3/8-24X.75 HXHD/NYL GR8SCR-3/8-24X.75 HXHD/NYL GR8
-
167571626 WASHER, SPRINGWASHER, SPRING
-
173222108 SPKT,39T,3/4W,15T,HYVO,PMSPKT,39T,3/4W,15T,HYVO,PM
-
183221110 CHAIN,HYVO 72P,3/4WCHAIN,HYVO 72P,3/4W
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASE-7.92 CDCHAINCASE-7.92 CD
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
