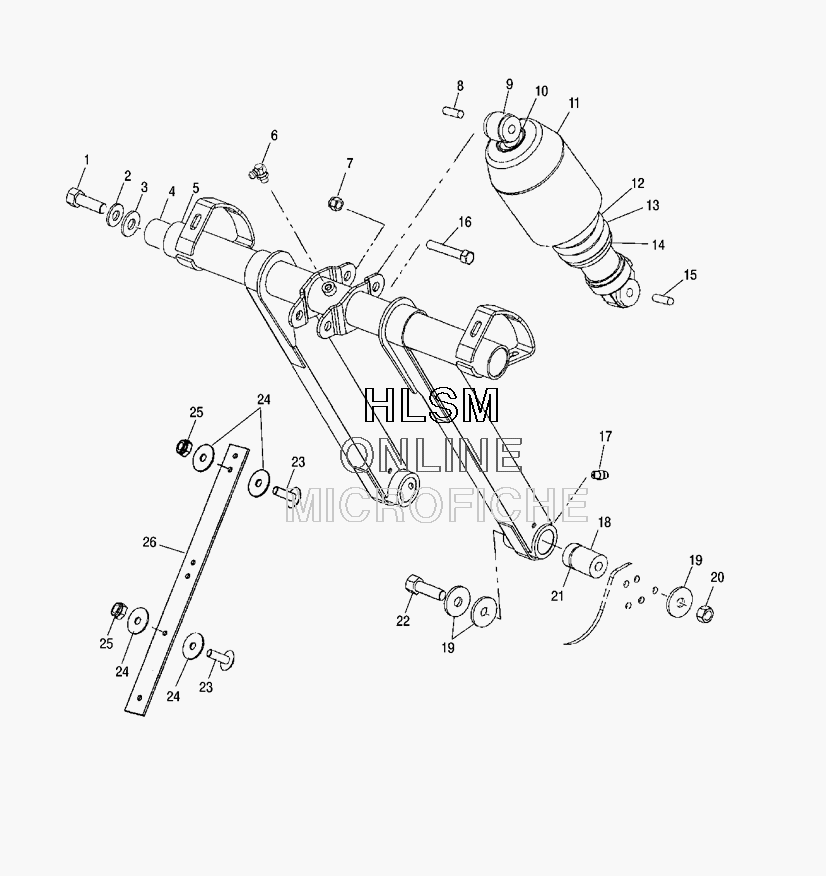

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 340 (S08NB3AS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7517435 SCREW
    SCREW
  • 2
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 4
    5132067 SHAFT, UPPER
    SHAFT, UPPER
  • 5
    1541779-067 WELD-ARM, FRONT TORQUE, BLACK
    WELD-ARM, FRONT TORQUE, BLACK
  • 6
    7080510 FITTING, ZERK, 90 DEGREE
    FITTING, ZERK, 90 DEGREE
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    5333905 SLEEVE, .385X.560X1.24
    SLEEVE, .385X.560X1.24
  • 9
    7041939 SHOCK-FRONT TRACK
    SHOCK-FRONT TRACK
  • 10
    5630580 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 11
    5430671 SHIELD-SPRING
    SHIELD-SPRING
  • 12
    7041253-067 SPRING, COMPRESSION, BLACK
    SPRING, COMPRESSION, BLACK
  • 13
    5245067 RETAINER-SPRING, GAB, PLATED
    RETAINER-SPRING, GAB, PLATED
  • 14
    5210953 RETAINER, SPRING
    RETAINER, SPRING
  • 15
    5333906 SLEEVE, .385X.560X1.72
    SLEEVE, .385X.560X1.72
  • 16
    7515415 SCREW
    SCREW
  • 17
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 18
    5133308 SHAFT-.453X.999X1.60, ORING
    SHAFT-.453X.999X1.60, ORING
  • 19
    7556156 WASHER, .483X1.37X.083
    WASHER, .483X1.37X.083
  • 20
    7547066 NUT-7/16-20, NYLOK, Y
    NUT-7/16-20, NYLOK, Y
  • 21
    5412022 O-RING-0.739X0.879X0.070
    O-RING-0.739X0.879X0.070
  • 22
    7512597 BOLT-7/16-20X2.75, HXCAP, GR5, Y
    BOLT-7/16-20X2.75, HXCAP, GR5, Y
  • 23
    7517313 SCREW
    SCREW
  • 24
    7556175 WASHER-.325X1.20X.090, FL-Y
    WASHER-.325X1.20X.090, FL-Y
  • 25
    7542344 NUT, NYLOK
    NUT, NYLOK
  • 26
    5412140 STRAP-LIM, FRT
    STRAP-LIM, FRT
