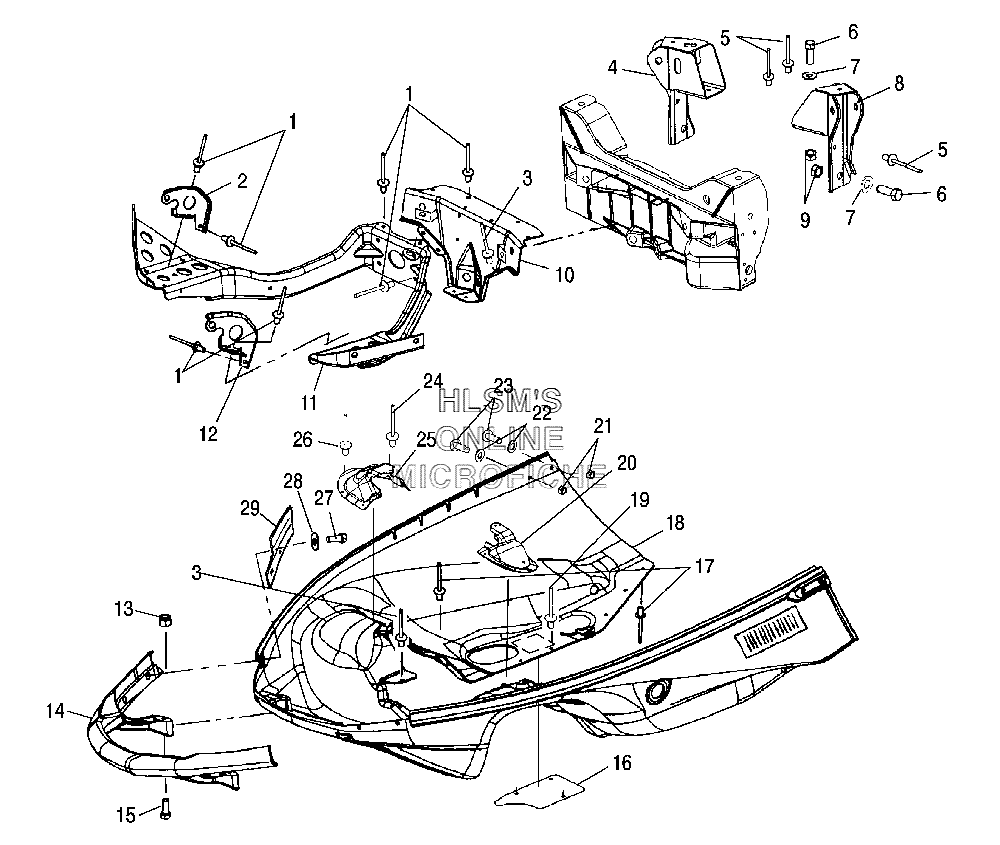

NOSEPAN #1 для Polaris TRAIL RMK (S07NJ5BS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 2
    5243992-067 HINGE PIVOT (LOWER/RIGHT/BLACK)
    HINGE PIVOT (LOWER/RIGHT/BLACK)
  • 3
    7621431 RIVET
    RIVET
  • 4
    1821108-067 WELD SHOCK TOWER (RIGHT/BLACK)
    WELD SHOCK TOWER (RIGHT/BLACK)
  • 5
    7661130 RIVET
    RIVET
  • 6
    7517935 SCREW
    SCREW
  • 7
    7556153 WASHER
    WASHER
  • 8
    1821107-067 WELD SHOCK TOWER (LEFT/BLACK)
    WELD SHOCK TOWER (LEFT/BLACK)
  • 9
    7547180 NUT FLANGED
    NUT FLANGED
  • 10
    5244049-067 BRACKET, RAD. ROD SUPPORT (BLACK)
    BRACKET, RAD. ROD SUPPORT (BLACK)
  • 11
    5244050 BRACE, PAN (LOWER)
    BRACE, PAN (LOWER)
  • 12
    5243991-067 HINGE PIVOT (LOWER/LEFT/BLACK)
    HINGE PIVOT (LOWER/LEFT/BLACK)
  • 13
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 14
    5434439-070 BUMPER FRONT, W/OUT NUTSERTS (BLACK) (INCL. HARDWARE)
    BUMPER FRONT, W/OUT NUTSERTS (BLACK) (INCL. HARDWARE)
  • 15
    7512163 BOLT
    BOLT
  • 16
    5245853 SHIELD, HEAT, EXTENDED
    SHIELD, HEAT, EXTENDED
  • 17
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 18
    5435270-070 NOSEPAN (BLACK)
    NOSEPAN (BLACK)
  • 19
    7621472 RIVET
    RIVET
  • 20
    5434346 COVER SHOCK TOWER (LEFT)
    COVER SHOCK TOWER (LEFT)
  • 21
    7542122 NUT NYLOK
    NUT NYLOK
  • 22
    7555827 WASHER
    WASHER
  • 23
    7515166 SCREW
    SCREW
  • 24
    7621418 RIVET, POP
    RIVET, POP
  • 25
    5434347 COVER SHOCK TOWER (RIGHT)
    COVER SHOCK TOWER (RIGHT)
  • 25
    5812271 FOIL
    FOIL
  • 25
    5812088 FOIL, SHOCK TOWER #1
    FOIL, SHOCK TOWER #1
  • 25
    5812089 FOIL, SHOCK TOWER #2
    FOIL, SHOCK TOWER #2
  • 26
    7621485 RIVET
    RIVET
  • 27
    7517986 SCREW
    SCREW
  • 28
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 29
    5244888 GUIDE HOOD (LEFT)
    GUIDE HOOD (LEFT)
  • 29
    5244889 GUIDE HOOD (RIGHT)
    GUIDE HOOD (RIGHT)
