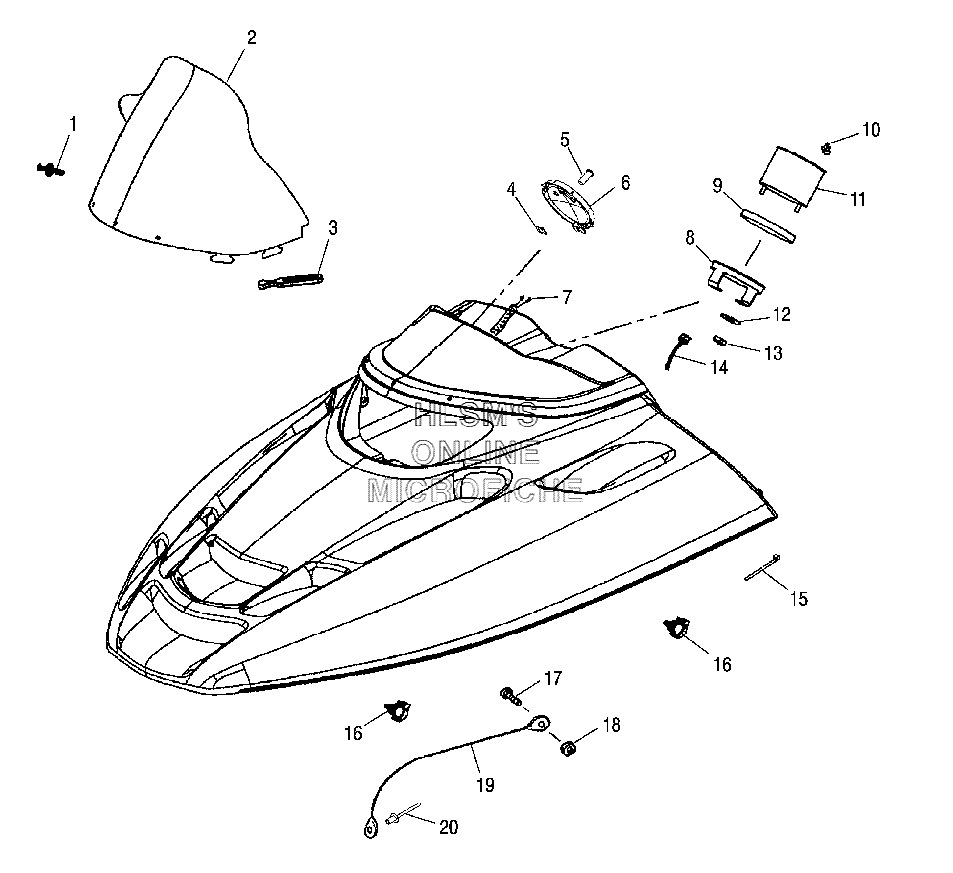

HOOD ASSEMBLY W/ WINDSHIELD для Polaris TRAIL RMK (S07NJ5BS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7621509 RIVET, PLASTI LOCK
    RIVET, PLASTI LOCK
  • 2
    5434194 WINDSHIELD 13'' FLR (SMOKE)
    WINDSHIELD 13'' FLR (SMOKE)
  • 3
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 4
    7670133 RETAINER 1/2'' BOLT/LAMP
    RETAINER 1/2'' BOLT/LAMP
  • 5
    4010687 INDICATOR REVERSE (1/2 DIA)
    INDICATOR REVERSE (1/2 DIA)
  • 6
    5434081 PLUG DASH, 5'' W/SINGLE (1/2''HOLE)
    PLUG DASH, 5'' W/SINGLE (1/2''HOLE)
  • 7
    2461031 HARNESS JUMPER, REVERSE LIGHT
    HARNESS JUMPER, REVERSE LIGHT
  • 8
    3280210 BRACKET, TACH/SPEEDO
    BRACKET, TACH/SPEEDO
  • 9
    3280209 CUSHION, TACH/SPEEDO, RUBBER
    CUSHION, TACH/SPEEDO, RUBBER
  • 10
    3280186 KNOB, TRIP ODOMETER (LEFT)
    KNOB, TRIP ODOMETER (LEFT)
  • 11
    3280411 SPEED ASSY, 5'' 120MPH W/O AN (WHITE/BLACK)
    SPEED ASSY, 5'' 120MPH W/O AN (WHITE/BLACK)
  • 11
    4030015 BULB TAILLIGHT/TACH/SPEEDO (REPLACEMENT)
    BULB TAILLIGHT/TACH/SPEEDO (REPLACEMENT)
  • 12
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 13
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 14
    3280385 CABLE SPEEDOMETER
    CABLE SPEEDOMETER
  • 15
    7080138 CABLE TIE
    CABLE TIE
  • 16
    4010589 CLIP PLASTIC, DART NYLON
    CLIP PLASTIC, DART NYLON
  • 17
    7512018 SCREW
    SCREW
  • 18
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 19
    7080521 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 20
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
