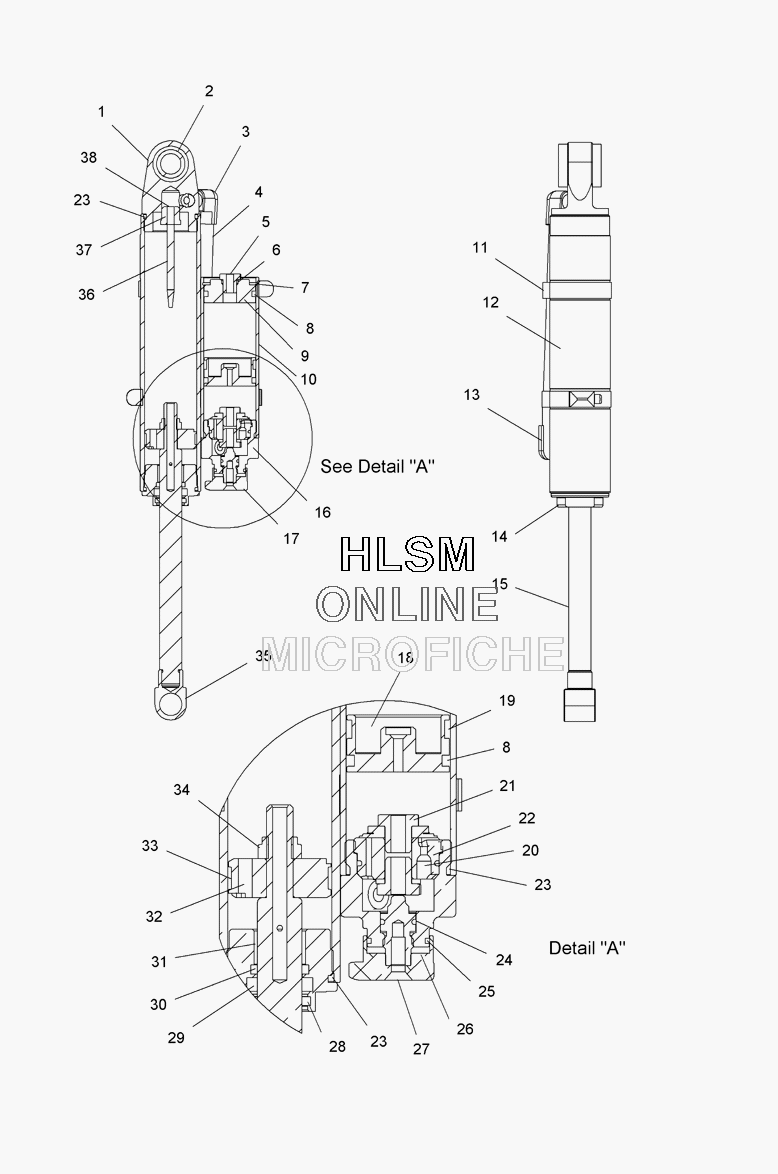

SUSPENSION - REAR SHOCK TRACK для Polaris 700 CFI DRAGON AND EURO (S07PC7JS/JE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 7043205 SHOCK-R/T, WE, REM RES C/A, ND
    SHOCK-R/T, WE, REM RES C/A, ND
  • 1
    1800224 LOOP, BODY
    LOOP, BODY
  • 2
    1800032 SLEEVE 1.202''L
    SLEEVE 1.202''L
  • 2
    1800036 BUSHING/URETHANE
    BUSHING/URETHANE
  • 3
    1800205 FITTING 90°
    FITTING 90°
  • 4
    1800212 HOSE
    HOSE
  • 5
    1800107 VALVE-NEEDLE
    VALVE-NEEDLE
  • 5
    1800109 SCREW-BUTTON HEAD 8/32
    SCREW-BUTTON HEAD 8/32
  • 6
    1800108 O-RING
    O-RING
  • 7
    1800019 RESERVOIR SNAP RING
    RESERVOIR SNAP RING
  • 8
    1800028 O-RING RESERVOIR
    O-RING RESERVOIR
  • 9
    1800106 CAP-END
    CAP-END
  • 10
    1800216
  • 11
    1800022 CLAMP-HOSE
    CLAMP-HOSE
  • 12
    1800225 BODY
    BODY
  • 13
    1800113 ELBOW-1/8'' NPT 90°
    ELBOW-1/8'' NPT 90°
  • 14
    1800131 ASM-SHAFT SEAL HSG (740 157)
    ASM-SHAFT SEAL HSG (740 157)
  • 15
    1800228 SHAFT-.62X8.09
    SHAFT-.62X8.09
  • 16
    1800220 HOUSING-ADJ.
    HOUSING-ADJ.
  • 17
    1800218 KNOB
    KNOB
  • 18
    1800214 PISTON-RES., W/BLEED SCREW
    PISTON-RES., W/BLEED SCREW
  • 18
    1800210 O-RING-BLEED SCREW
    O-RING-BLEED SCREW
  • 18
    1800211 BLEED SCREW
    BLEED SCREW
  • 19
    1800029 WEAR BAND, TEFLON (100311)
    WEAR BAND, TEFLON (100311)
  • 20
    1800127 BALL-D-TENT
    BALL-D-TENT
  • 21
    1800219 SCREW W/THRU HOLE
    SCREW W/THRU HOLE
  • 22
    1800217 PISTON
    PISTON
  • 23
    1800027 O-RING BODY
    O-RING BODY
  • 24
    1800215 O-RING, STUD
    O-RING, STUD
  • 25
    1800221 O-RING, KNOB
    O-RING, KNOB
  • 26
    1800127 BALL-D-TENT
    BALL-D-TENT
  • 26
    1800128 SPRING-D-TENT
    SPRING-D-TENT
  • 27
    1800203 SCREW
    SCREW
  • 28
    1800034 WIPER D/TYPE
    WIPER D/TYPE
  • 29
    1800035 SHAFT SEAL U CUP
    SHAFT SEAL U CUP
  • 30
    1800037 O-RING SHAFT SEAL HEAD
    O-RING SHAFT SEAL HEAD
  • 31
    1800038 SHAFT BUSHING
    SHAFT BUSHING
  • 32
    1800226 VALVE
    VALVE
  • 33
    1800026 WEAR BAND
    WEAR BAND
  • 34
    1800031 3/8'' CRIMP NUT
    3/8'' CRIMP NUT
  • 35
    1800096 EYELET
    EYELET
  • 36
    1800300 NEEDLE, 2.25 (100114)
    NEEDLE, 2.25 (100114)
  • 37
    1800302 BOLT, NEEDLE (600154)
    BOLT, NEEDLE (600154)
  • 38
    1800299 SCREW, ALLEN (100338)
    SCREW, ALLEN (100338)
