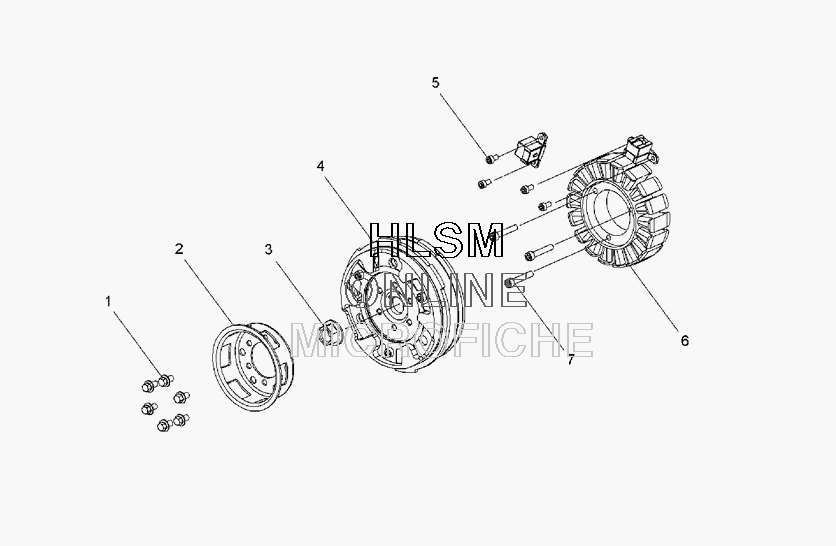

STATOR - FLYWHEEL для Polaris 700 CFI DRAGON AND EURO (S07PC7JS/JE) - 2007 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23021618 PULLEY-STARTER, RECOIL, LWPULLEY-STARTER, RECOIL, LW
-
37518299 NUT-FLANGE, M14X1.50 -DNUT-FLANGE, M14X1.50 -D
-
44011211 FLYWHEEL-KOK, L/WFLYWHEEL-KOK, L/W
-
57517847 SCR-M5X0.8X10 SOC/CP-DSCR-M5X0.8X10 SOC/CP-D
-
64011449 STATOR-KOK, 600/700 SDISTATOR-KOK, 600/700 SDI
-
77517848 SCR-M6X1.0X35 SOC/CP-Y/DSCR-M6X1.0X35 SOC/CP-Y/D
Все узлы модели:
- AIR BOX ASSEMBLY
- BRAKE ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS - FOOTRESTS
- CHASSIS - HOOP
- CHASSIS - REAR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER FOAM AND FOIL
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- • STATOR - FLYWHEEL
- STEERING ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK IFS
- SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD
- WIRING HARNESS
