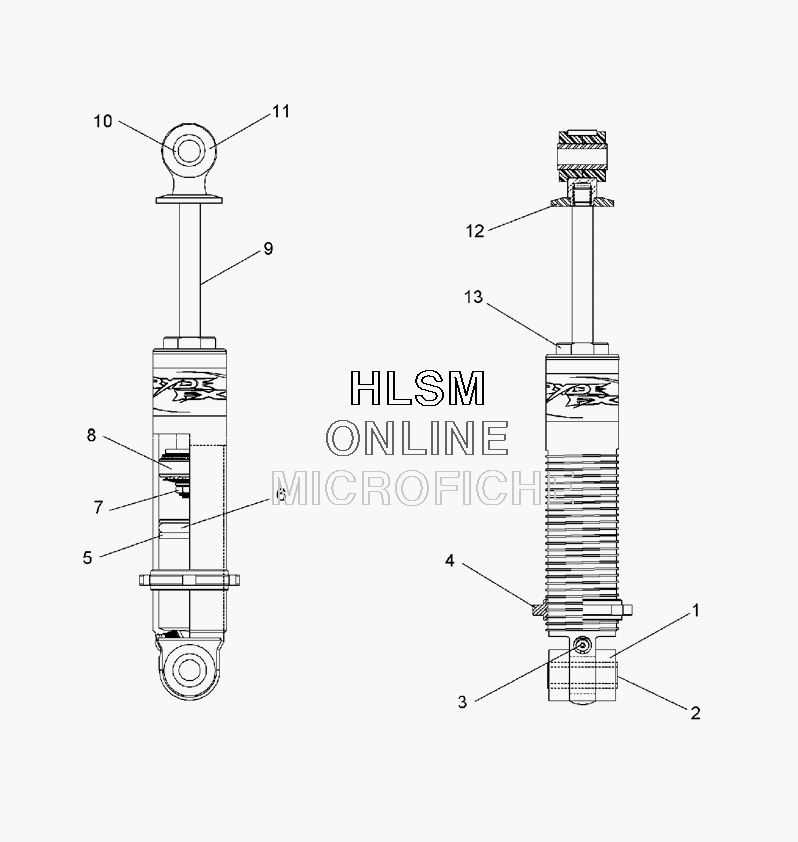

SUSPENSION - FRONT TRACK SHOCK (7043244) для Polaris 600 HO LX CLEAN FIRE EURO(S07PD6HE) - 2007 года выпуска
-
№АртикулНазвание
-
-7043244 SHOCK-F/T, 12.1-8.6SHOCK-F/T, 12.1-8.6
-
11700074 BUSHINGBUSHING
-
21700071 SLEEVE-.57''IDX.80''ODX1.68SLEEVE-.57''IDX.80''ODX1.68
-
31700184 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
31700055 VALVE SCREWVALVE SCREW
-
41700237 NUT, SPRING RET.NUT, SPRING RET.
-
51700233 IFP, PLASTICIFP, PLASTIC
-
61700048 IFP-O-RINGIFP-O-RING
-
71700057 NUTNUT
-
81700238 PISTONPISTON
-
81700236 WEAR BANDWEAR BAND
-
81700077 TOP-OUT WASHERTOP-OUT WASHER
-
81700078 BACK-UP WASHERBACK-UP WASHER
-
91700026 SHAFT-1/2''DIAX6.10''LSHAFT-1/2''DIAX6.10''L
-
101700069 SLEEVE-.57''IDX.80''ODX1.20SLEEVE-.57''IDX.80''ODX1.20
-
111700075 BUSHINGBUSHING
-
121700011 UPPER MOUNTUPPER MOUNT
-
131700156 CYL HEAD ASM 215098-100CYL HEAD ASM 215098-100
