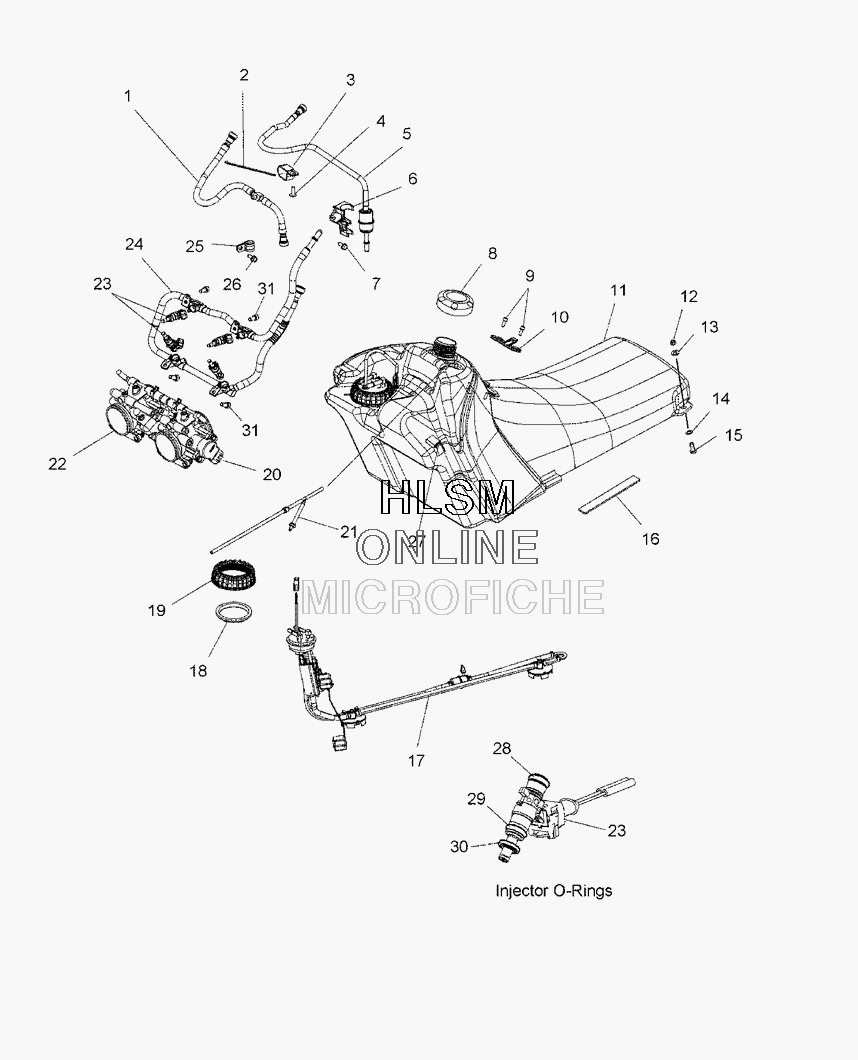

FUEL SYSTEM для Polaris 600 HO LX CLEAN FIRE EURO(S07PD6HE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2520648 ASM-FUEL LINE, RTRN
    ASM-FUEL LINE, RTRN
  • 2
    7080138 CABLE TIE
    CABLE TIE
  • 3
    7081364 CLAMP-DBL TUBE, .562 VNL COATED
    CLAMP-DBL TUBE, .562 VNL COATED
  • 4
    7517916 SCR-1/4-20X3/4-TR/TX/TAP-M
    SCR-1/4-20X3/4-TR/TX/TAP-M
  • 5
    2520647 ASM-FUEL LINE, FLTR
    ASM-FUEL LINE, FLTR
  • 6
    1203256 ASM-FUEL FILTER RETAINER
    ASM-FUEL FILTER RETAINER
  • 6
    5812996 PAD-FUEL FILTER
    PAD-FUEL FILTER
  • 7
    7512095 SCREW
    SCREW
  • 8
    5435534 CAP-FUEL TANK, ''PREMIUM''
    CAP-FUEL TANK, ''PREMIUM''
  • 9
    7515136 SCREW
    SCREW
  • 10
    5247431 BRKT-SEAT MOUNT
    BRKT-SEAT MOUNT
  • 11
    2203288 KIT-FUEL TANK, HI CAP, SVC (SDI) (INCL. 18, 27)
    KIT-FUEL TANK, HI CAP, SVC (SDI) (INCL. 18, 27)
  • 12
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 13
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 14
    7670154 RETAINER-BOLT, 1/4-20
    RETAINER-BOLT, 1/4-20
  • 15
    7515203 BOLT
    BOLT
  • 16
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 17
    2520611 SCREW
    SCREW
  • 18
    5413063 GASKET-PFA
    GASKET-PFA
  • 19
    5436628 NUT-PFA
    NUT-PFA
  • 20
    3131591 SENSOR-THROTTLE POSITION
    SENSOR-THROTTLE POSITION
  • 21
    2633187 ASM-VENT, FUEL TANK
    ASM-VENT, FUEL TANK
  • 22
    1203213 ASM-THROTTLE BODY (INCL. 20)
    ASM-THROTTLE BODY (INCL. 20)
  • 23
    2203325-015 KIT-INJECTOR 500G/MIN, RED
    KIT-INJECTOR 500G/MIN, RED
  • 23
    2203325-027 KIT-INJECTOR MY07 600 SDI BLU
    KIT-INJECTOR MY07 600 SDI BLU
  • 23
    2203325-053 KIT-INJECTOR 500G/MIN, YLW
    KIT-INJECTOR 500G/MIN, YLW
  • 24
    2520572 ASM-FUEL RAIL 600 SDI
    ASM-FUEL RAIL 600 SDI
  • 25
    7080573 CLAMP, RUBBER-COATED, .562
    CLAMP, RUBBER-COATED, .562
  • 26
    7512095 SCREW
    SCREW
  • 27
    5813100 PAD-RUBBER, 3 X 1.5X .5
    PAD-RUBBER, 3 X 1.5X .5
  • 28
    1500198 O-RING, (2) (BLACK)
    O-RING, (2) (BLACK)
  • 29
    5412891 O-RING, BOSCH, E10076 (BROWN)
    O-RING, BOSCH, E10076 (BROWN)
  • 30
    5436287 BUSHING-RUBBER, INJ ELASTOMER (GREEN)
    BUSHING-RUBBER, INJ ELASTOMER (GREEN)
  • 31
    7517431 SCREW
    SCREW
