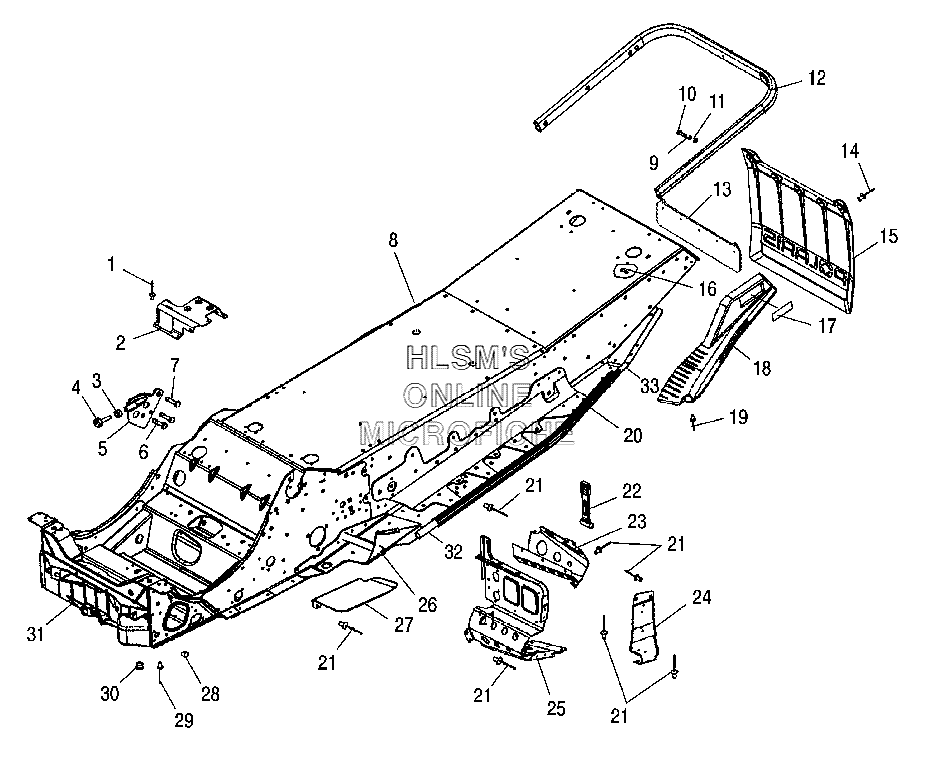

FRAME - CHASSIS для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска`
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
37542404 NUTNUT
-
43021104 STOP, TORQUE COURSESTOP, TORQUE COURSE
-
51013379 WELD TORQUE STOPWELD TORQUE STOP
-
67517854 SCREWSCREW
-
77517632 SCREWSCREW
-
81014067-309 CHASSIS ASSY. (INCL. 26, 31)CHASSIS ASSY. (INCL. 26, 31)
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
107512232 BOLTBOLT
-
117558301 WASHER, FLATWASHER, FLAT
-
122632165-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
135812430 BACKER SNOW FLAPBACKER SNOW FLAP
-
147621418 RIVET, POPRIVET, POP
-
155434847-070 FLAPFLAP
-
167517441 SCREW, .75SCREW, .75
-
172670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
182632443-070 SNOWSKIRT/REFLECTOR ASSY (LEFT/BLACK)SNOWSKIRT/REFLECTOR ASSY (LEFT/BLACK)
-
182632444-070 SNOWSKIRT/REFLECTOR ASSY (RIGHT/BLACK)SNOWSKIRT/REFLECTOR ASSY (RIGHT/BLACK)
-
197621472 RIVETRIVET
-
205135317 GRIP TUNNEL (LEFT)GRIP TUNNEL (LEFT)
-
205135318 GRIP TUNNEL (RIGHT)GRIP TUNNEL (RIGHT)
-
217661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
225433150 STRAPSTRAP
-
235245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
235245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
245246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
245246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
255245288 FOOTREST (LEFT)FOOTREST (LEFT)
-
255247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
262202059 MOUNT KIT, TRAILING ARM (LEFT)MOUNT KIT, TRAILING ARM (LEFT)
-
262202598 MOUNT KIT, TRAILING ARM (RIGHT)MOUNT KIT, TRAILING ARM (RIGHT)
-
275246066 GUARD BELTGUARD BELT
-
287080416 PLUG, HOLEPLUG, HOLE
-
297661130 RIVETRIVET
-
307081076 PLUG HOLEPLUG HOLE
-
315132292 BULKHEAD (FRONT)BULKHEAD (FRONT)
-
325245431 TUBE TUNNEL REINF (FRONT)TUBE TUNNEL REINF (FRONT)
-
335245432 TUBE TUNNEL REINF (REAR)TUBE TUNNEL REINF (REAR)
