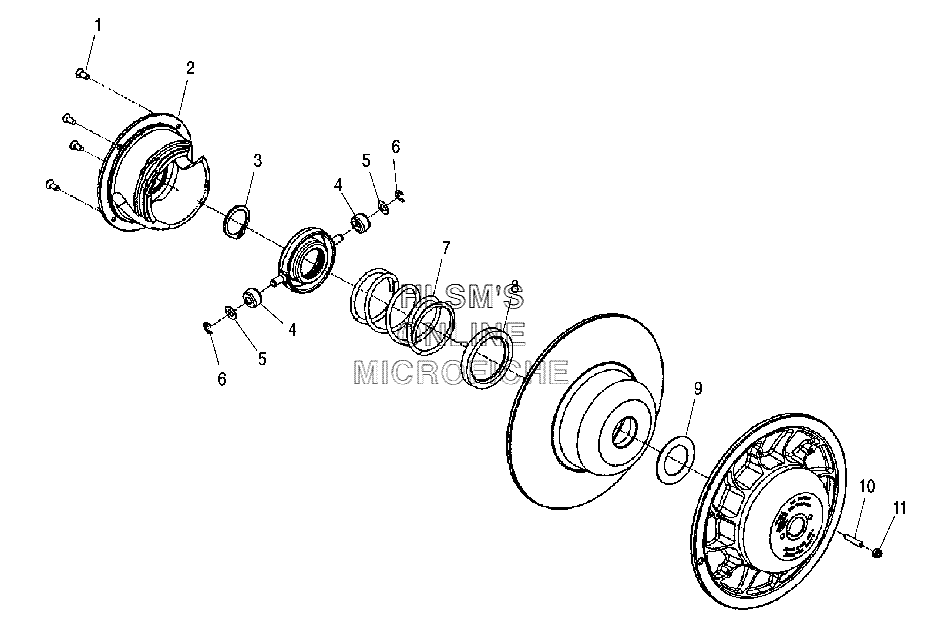

CLUTCH - DRIVEN для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
‹-+›
-
№АртикулНазвание
-
13233996 SCREWSCREW
-
25135403 RAMP DRIVEN (56/42/36)RAMP DRIVEN (56/42/36)
-
37710583 RET.RINGRET.RING
-
45434534 ROLLERROLLER
-
57556226 WASHER THRUSTWASHER THRUST
-
67710523 RET.E RINGRET.E RING
-
77043057 SPRING DRVN CLTCH (LEFT/RED/BLUE)SPRING DRVN CLTCH (LEFT/RED/BLUE)
-
87556227 WASHER THRUSTWASHER THRUST
-
97556370 WASHERWASHER
-
103234228 SCREW SETSCREW SET
-
117542103 NUT, FLEXLOCNUT, FLEXLOC
-
-1322662 CLUTCH, DRIVEN (INCL. 1, 3 6, 8 11)CLUTCH, DRIVEN (INCL. 1, 3 6, 8 11)
