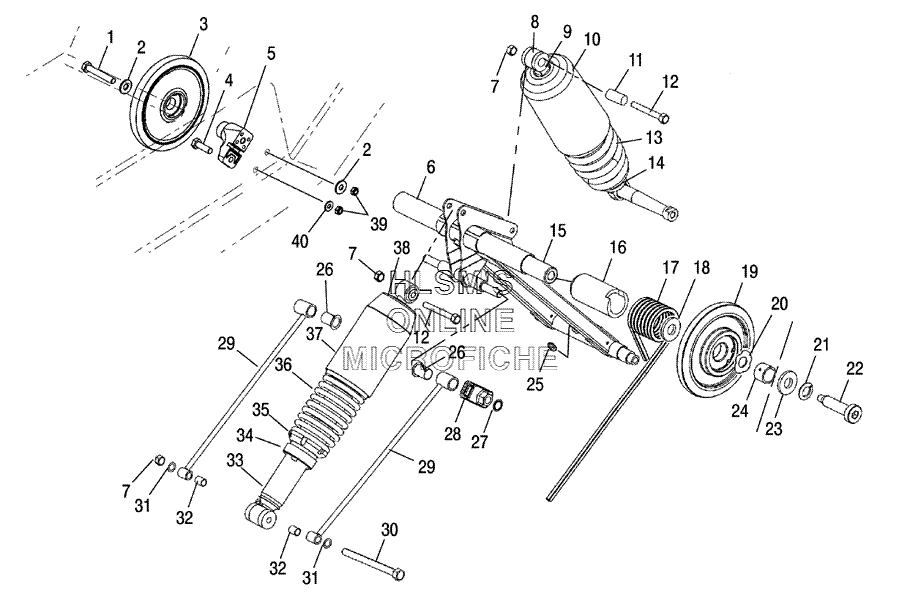

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris Trail Touring Deluxe (S06NT5BS) - 2006 года выпуска
-
№АртикулНазвание
-
17515385 SCREWSCREW
-
27555959 WASHER, FLATWASHER, FLAT
-
31543013 WHEEL TRACK CARRIERWHEEL TRACK CARRIER
-
47512310 SCREWSCREW
-
55134128 MOUNT WHEELMOUNT WHEEL
-
61541798-067 WELD TORQUE ARM (REAR/BLACK)WELD TORQUE ARM (REAR/BLACK)
-
77542411 NUT, FLEXLOCNUT, FLEXLOC
-
87042141 SHOCK REAR TRACKSHOCK REAR TRACK
-
95132064 RETAINER SPRINGRETAINER SPRING
-
105434921 SHIELD SPRING (3.20)SHIELD SPRING (3.20)
-
115333905 SLEEVESLEEVE
-
127515433 SCREWSCREW
-
137042161-067 SPRING COMP (10.41) (BLACK)SPRING COMP (10.41) (BLACK)
-
143514450 BEARING PLAINBEARING PLAIN
-
155134793 SHAFT, STEEL (UPPER)SHAFT, STEEL (UPPER)
-
165434627 SLEEVE TORSION SPRINGSLEEVE TORSION SPRING
-
177042240-067 SPRING TORSION (.405/77) (LEFT/BLACK)SPRING TORSION (.405/77) (LEFT/BLACK)
-
177042241-067 SPRING TORSION (.405/77) (RIGHT/BLACK)SPRING TORSION (.405/77) (RIGHT/BLACK)
-
187556296 WASHERWASHER
-
191590355 WHEEL ASSY, PLAIN, OFFSET (6.38X1.18)WHEEL ASSY, PLAIN, OFFSET (6.38X1.18)
-
193514330 BEARING 6206BEARING 6206
-
197710471 RING, RETAINER, INTRING, RETAINER, INT
-
207556303 WASHER WAVEWASHER WAVE
-
217552614 WASHER, LOCKWASHER, LOCK
-
227517815 SCREWSCREW
-
237555984 WASHER, FLATWASHER, FLAT
-
245134207 COLLAR BEARING LOCKCOLLAR BEARING LOCK
-
247512257 SCREW SOCKET SETSCREW SOCKET SET
-
257080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
263514441 BUSHING NYLON (3/4''X1 1/8'')BUSHING NYLON (3/4''X1 1/8'')
-
277080394 CLIP, PUSH ONCLIP, PUSH ON
-
285432983 ROLLER, SPRING, ADJUST SQUAREROLLER, SPRING, ADJUST SQUARE
-
291541821-067 WELD SHOCK ROD (BLACK)WELD SHOCK ROD (BLACK)
-
307517378 SCREWSCREW
-
317555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
325333028 SPACERSPACER
-
337041486 SHOCK, TRACK, ADJUST HEAVY (FRONT)SHOCK, TRACK, ADJUST HEAVY (FRONT)
-
341500091 RETAINER, SPRING, HEAVY BODYRETAINER, SPRING, HEAVY BODY
-
355431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
367041404-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
375410874 SHIELD, SPRINGSHIELD, SPRING
-
385020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
397542343 NUT, FLANGENUT, FLANGE
