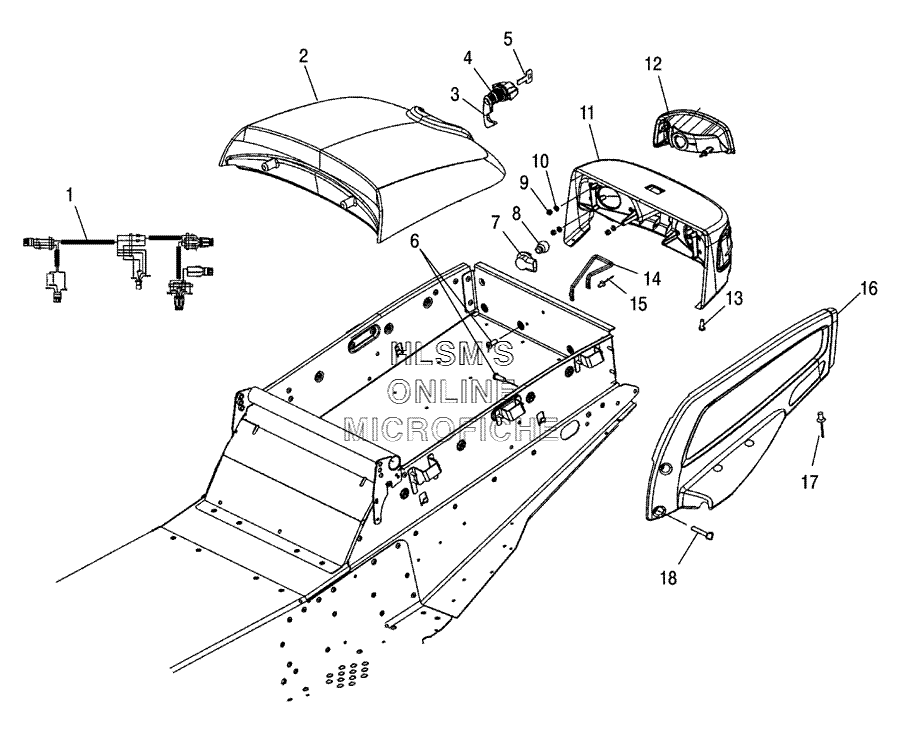

CARGO BOX W/ TAILLIGHT ASSY для Polaris Trail Touring Deluxe (S06NT5BS) - 2006 года выпуска
-
№АртикулНазвание
-
12461166 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
22632641 COVER ASSY, TRUNK (INCL. 3)COVER ASSY, TRUNK (INCL. 3)
-
35246525 PAWL, TRUNK LOCKPAWL, TRUNK LOCK
-
47081093 LOCK TRUNKLOCK TRUNK
-
54010873 RING W/KEYS ASSYRING W/KEYS ASSY
-
67512076 SCREWSCREW
-
74010767 SOCKET BULBSOCKET BULB
-
84010764 BULB TAILLIGHTBULB TAILLIGHT
-
97546703 NUT, NYLOKNUT, NYLOK
-
107556088 WASHER, FLATWASHER, FLAT
-
122410327 REFLECTOR ASSY (LEFT)REFLECTOR ASSY (LEFT)
-
122410328 REFLECTOR ASSY (RIGHT)REFLECTOR ASSY (RIGHT)
-
137670125 FASTNER PUSH ON CLIP (.250)FASTNER PUSH ON CLIP (.250)
-
145246523 BAIL TRUNK LOCKBAIL TRUNK LOCK
-
157661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
165434583-453 SKIRT SNOW (AVAL.GRAY/LEFT)SKIRT SNOW (AVAL.GRAY/LEFT)
-
165434584-453 SKIRT SNOW (AVAL GRAY/RIGHT)SKIRT SNOW (AVAL GRAY/RIGHT)
-
165412449 PLUG HANDWARMER SWITCHPLUG HANDWARMER SWITCH
-
177621467 RIVET, BLINDRIVET, BLIND
-
187517916 SCREWSCREW
-
2410324-453 TAILLIGHT ASSY. (AVAL. GRAY) (INCL. 9 -12)TAILLIGHT ASSY. (AVAL. GRAY) (INCL. 9 -12)
