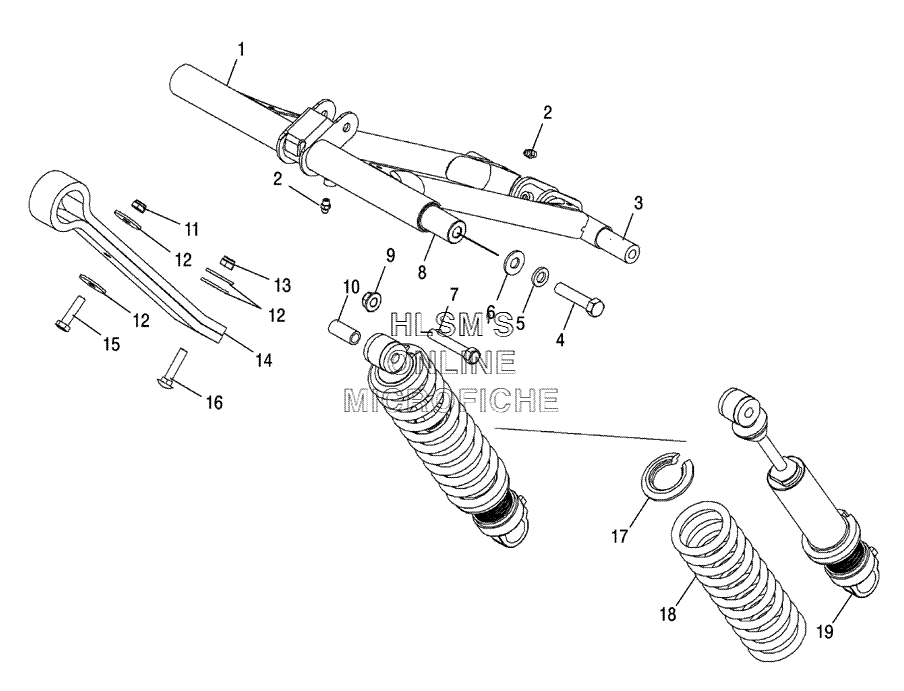

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 700 Touring (S06PT7HS) - 2006 года выпуска`
-
№АртикулНазвание
-
11542123-067 WELD FTA, M10, ACE (BLACK)WELD FTA, M10, ACE (BLACK)
-
27080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
35132579 SHAFT, PIVOT (LOWER)SHAFT, PIVOT (LOWER)
-
47518261 SCREWSCREW
-
57552614 WASHER, LOCKWASHER, LOCK
-
67555984 WASHER, FLATWASHER, FLAT
-
77515415 SCREWSCREW
-
85135227 SHAFT FTA, M10 (UPPER)SHAFT FTA, M10 (UPPER)
-
97547263 NUT NYLOKNUT NYLOK
-
105333905 SLEEVESLEEVE
-
117542344 NUT, NYLOKNUT, NYLOK
-
127556175 WASHERWASHER
-
137542324 NUT, NYLOKNUT, NYLOK
-
145411940 STRAP LIMITERSTRAP LIMITER
-
157512392 BOLTBOLT
-
167515316 BOLTBOLT
-
175020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
187041674-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
197043123 SHOCK F/TSHOCK F/T
