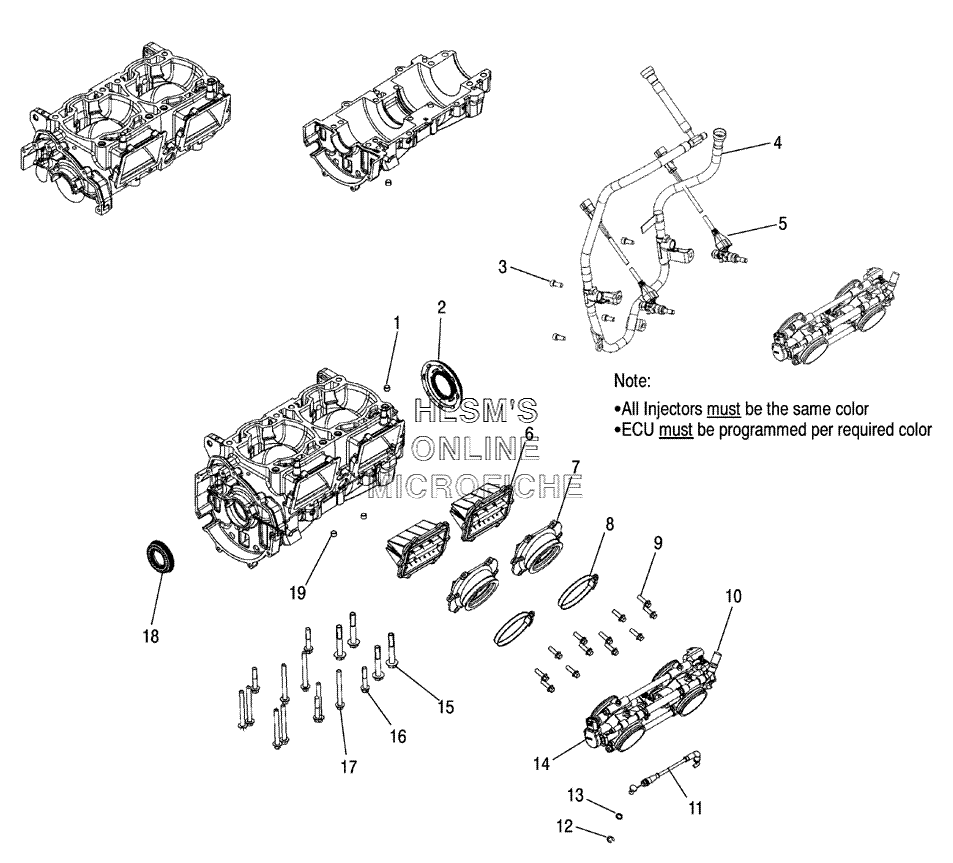

CRANKCASE / THROTTLE BODY MOUNTNG для Polaris 700 Touring (S06PT7HS) - 2006 года выпуска`
-
№АртикулНазвание
-
17663008 DOWL, HOLDOWL, HOL
-
25412218 SEAL FLANGED WITH STANDOFFSEAL FLANGED WITH STANDOFF
-
37517431 SCREWSCREW
-
42520581 FUEL RAIL ASSYFUEL RAIL ASSY
-
51202853-015 INJ FUEL, EV14XT (RED)INJ FUEL, EV14XT (RED)
-
51202853-027 INJ FUEL, EV14XT (BLUE)INJ FUEL, EV14XT (BLUE)
-
51202853-053 INJ FUEL, EV14XT (YELLOW)INJ FUEL, EV14XT (YELLOW)
-
61202698 REED VALVE ASSYREED VALVE ASSY
-
71253540 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
87080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
97517398 SCREWSCREW
-
101203050 THROTTLE BODY ASSY (51/154)THROTTLE BODY ASSY (51/154)
-
117081158 CABLE OILCABLE OIL
-
127710427 RING E, RETAININGRING E, RETAINING
-
137555944 WASHERWASHER
-
143131591 SENSOR THROTTLE POSITIONSENSOR THROTTLE POSITION
-
157516919 SCREWSCREW
-
167516732 SCREWSCREW
-
177518093 SCREWSCREW
-
185412216 SEAL FLANGEDSEAL FLANGED
-
197052337 PLUG, HEXAGON/SOC WITH SEALANTPLUG, HEXAGON/SOC WITH SEALANT
-
-2203111 CRANKCASE KIT (INCL. 1, 19)CRANKCASE KIT (INCL. 1, 19)
