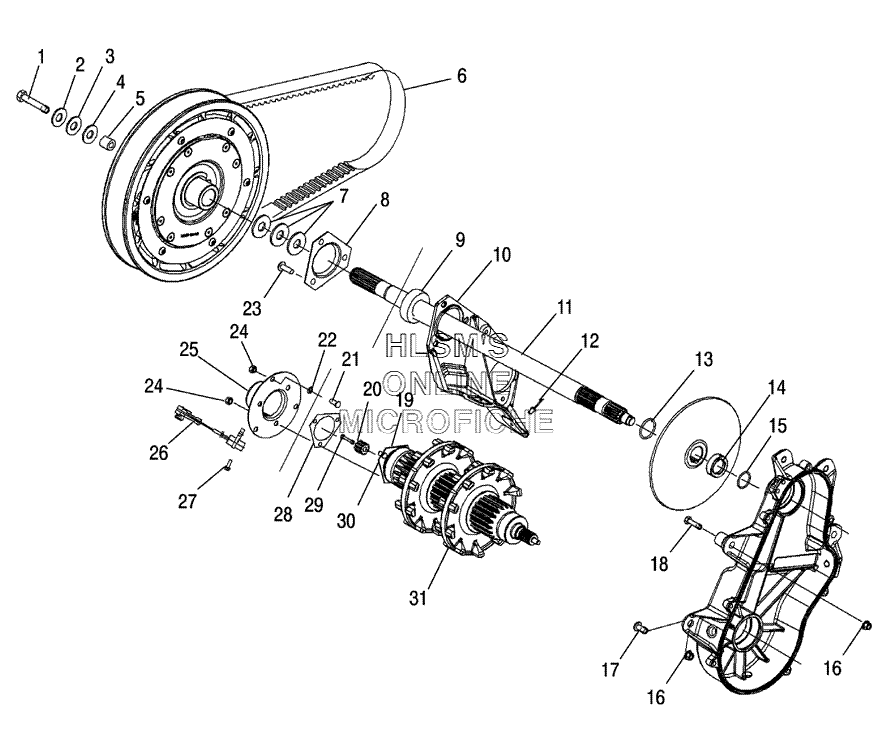

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 Touring (S06PT7HS) - 2006 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55134371 SPACER INPUT SHAFT (.875 OD)SPACER INPUT SHAFT (.875 OD)
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
85243529 FLANGETTE OFFSET WITH HOLEFLANGETTE OFFSET WITH HOLE
-
93514352 BEARINGBEARING
-
105134870 SUPPORT ENGINE (LEFT/REAR)SUPPORT ENGINE (LEFT/REAR)
-
111332336 JACKSHAFT WITH BEARING ASSY (15/21 SPLINE) (INCL. 9)JACKSHAFT WITH BEARING ASSY (15/21 SPLINE) (INCL. 9)
-
127661130 RIVETRIVET
-
137710422 RING, RETAININGRING, RETAINING
-
145135231 SLEEVE SEAL, 45 DEGREE CHAMFERSLEEVE SEAL, 45 DEGREE CHAMFER
-
155410613 O-RINGO-RING
-
167547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
177518494 BOLT CARRIAGEBOLT CARRIAGE
-
187518268 BOLT CARRIAGEBOLT CARRIAGE
-
193514448 BEARING LUBE (25MM)BEARING LUBE (25MM)
-
205240013 WHEEL PICKUP, SPEEDOMETER (9 TEETH)WHEEL PICKUP, SPEEDOMETER (9 TEETH)
-
217518049 BOLT CARRIAGEBOLT CARRIAGE
-
227547030 PALNUTPALNUT
-
237518444 SCREWSCREW
-
247542324 NUT, NYLOKNUT, NYLOK
-
255246960 HOUSING DRIVE PICKUPHOUSING DRIVE PICKUP
-
262410376 SENSOR SPEED PICKUPSENSOR SPEED PICKUP
-
277512232 BOLTBOLT
-
285811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
297516733 SCREWSCREW
-
301014299 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
311590411 DRVSHAFT TUBULAR REINFORCEMENT ASSY (25MM)DRVSHAFT TUBULAR REINFORCEMENT ASSY (25MM)
